Description
FlexiSpec® probes from art photonics include new type of Attenuated Total Reflection (ATR-) probes designed for harsh application conditions.
HT-ATR immersion IR-fiber probes can be used for process-spectroscopy in Near & Mid IR range to monitor reactions in-line in a broad temperature range from -100° to +250°C. They can resist to high pressures up to 200Bar and used with FTIR or any other IR-spectrometers and spectral sensors in automated process control with process-interfaces.

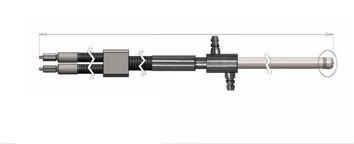

Fiber Optic ATR-Probe for Harsh Environment (Cubic Zirconium ATR)
Specifications

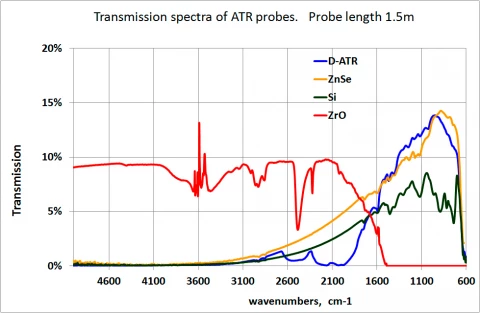

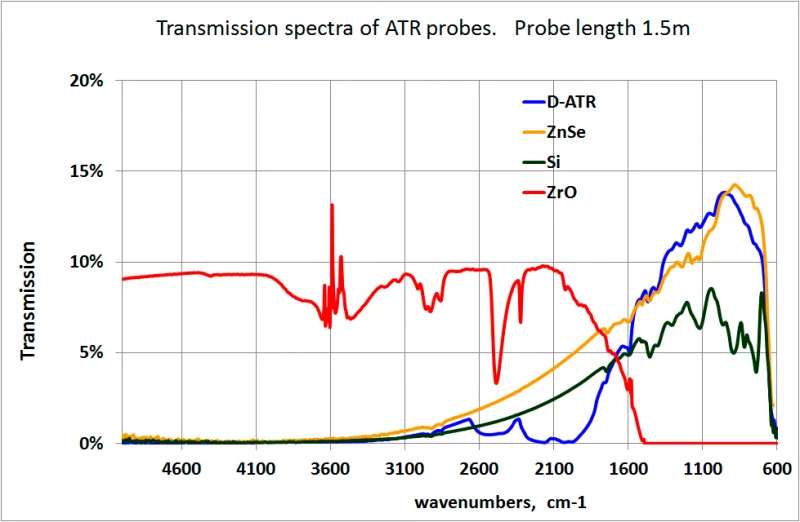

Transmission: | 1.5 – 6.5 um |
---|---|
Temperature Range: | -100 – 200 C |
Pressure (max): | 100 Bar |
Total Length: | 1.5 m |
Shaft Length: | 300 mm |
Shaft Diameter: | 12 mm |
Shaft Material: | Hastelloy C22 |
Length Of Legs: | 500 mm |
Protective Tube Material: | Liquid Tight SS-Conduit, KOPEX-Tube |
Minimal Bending Radius: | 130 mm |
Input / Output Connectors: | Long SMA |
Cooling Air Flow Parameters: | Excess pressure 0.5Bar, Flow 2300l/h |
Applications
- Remote Reaction Monitoring in-line in temperature range -100/+250°C
- PAT applications in lab, pilot plant or industry with process-interfaces for automated process control
- Polymerization Process Control
- In-situ IR-Spectroscopy for PAT in Chemical, Petrochemical, Atomic, Bio-pharmaceutical & Food Industry
Frequently Asked Questions
What is the FlexiSpec® probe made of?
The FlexiSpec® probe is made of a new type of Attenuated Total Reflection (ATR-) probes designed for harsh application conditions with Cubic Zirconium ATR.
What is the temperature range that the HT-ATR immersion IR-fiber probes can resist?
The HT-ATR immersion IR-fiber probes can resist a broad temperature range from -100° to +250°C.
What is the maximum pressure that the HT-ATR immersion IR-fiber probes can withstand?
The HT-ATR immersion IR-fiber probes can withstand high pressures up to 200Bar.
What kind of spectroscopy can the HT-ATR immersion IR-fiber probes be used with?
The HT-ATR immersion IR-fiber probes can be used with FTIR or any other IR-spectrometers and spectral sensors in automated process control with process-interfaces.
What are some of the applications of the HT-ATR immersion IR-fiber probes?
Some of the applications of the HT-ATR immersion IR-fiber probes include remote reaction monitoring in-line in temperature range -100/+250°C, PAT applications in lab, pilot plant or industry with process-interfaces for automated process control, polymerization process control, and in-situ IR-Spectroscopy for PAT in Chemical, Petrochemical, Atomic, Bio-pharmaceutical & Food Industry.
