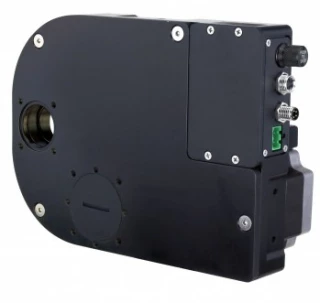

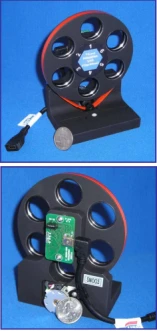

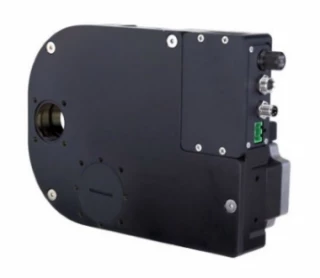

Positioners for Optical and Beam Control

A positioner is a mechanical stage or actuator assembly that translates rotary motor motion into controlled linear or angular displacement of a load. It typically consists of a drive element (stepper, DC/BLDC servo, piezo, or manual micrometer), a guiding mechanism (ball/roller bearings, flexures, or crossed rollers), and a feedback device (encoder or LVDT) for closed-loop control. In photonics and optics labs, positioners are used to align optical components with micrometer or sub-micrometer precision.

Common types include linear stages, rotation stages, goniometers (tilt stages), XY/XYZ translation stages, and fiber or mirror positioners. Linear stages provide one-axis motion, while stacked or integrated multi-axis stages provide 2–6 degrees of freedom for complex alignments. Specialized nano-positioners based on piezo or flexure mechanisms are used when sub-nanometer resolution or high dynamic response is required.

Key terms include resolution (smallest commanded incremental motion), repeatability (variation when returning to a position), accuracy (deviation from true position), and backlash (lost motion when reversing direction). Other critical concepts are load capacity, moment capacity, straightness/flatness of travel, pitch/yaw/roll errors, and stiffness. Drive-related parameters such as leadscrew pitch, motor step angle, encoder line count, and closed-loop bandwidth determine dynamic performance.

For precision optical alignment, focus on travel range, resolution, unidirectional and bidirectional repeatability, and pitch/yaw/roll error over the full stroke. Also evaluate maximum load and torque capacities, stage stiffness, bearing type, and environmental suitability (vacuum compatibility, cleanroom rating, thermal stability). For dynamic applications, maximum speed, acceleration, and settling time are key, along with controller interface (analog, USB, Ethernet, RS-485) and feedback type (incremental vs absolute encoder).

Leadscrew or ball-screw stages driven by steppers or servos offer good resolution and load capacity but may exhibit backlash unless preloaded; piezo and flexure stages provide very high resolution and zero backlash but limited travel. Crossed-roller bearings provide high stiffness and low friction for precision optics, while recirculating ball bearings support higher loads but can introduce more noise and micro-vibrations. For ultraclean or vacuum use, avoid lubricated recirculating bearings and select flexure or vacuum-rated crossed-roller designs with appropriate materials and greases.

Lead time and cost are driven by travel length, precision grade (accuracy and repeatability class), bearing and drive type, and the integration of encoders and controllers. Customizations such as non-standard apertures, mounting hole patterns, vacuum or UHV preparation, cleanroom certification, and special materials or coatings typically increase both manufacturing complexity and delivery time. Multi-axis assemblies, system integration, and factory calibration to user-defined datums or coordinate systems also add to overall price and lead time.
