Image Sensors

High Resolution Imaging Systems HRBIS-11000
Beam Imaging Solutions
Add to watch list
High Resolution Imaging Systems HRBIS-11000
High Resolution Beam Imaging is made possible with the Beam Imaging Solutions HRBIS systems. The HRBIS can be used to measure two or three dimensional intensity distributions of ion, electron and neutral beams. The HRBIS can also be used to image X-rays for applications such as pinhole imaging and spectroscopy. Images are created ...

Specifications
Active Area Diameter: 17 mm
Spatial Resolution: 35000 mm
Number Of MCPs: 1
Data Sheet
LOD 3-inch Refractive Digital Telescope
Logan Optical Designs (LOD)
Add to watch list
LOD 3-inch Refractive Digital Telescope
This is a compact 3-inch diameter aperture refractive telescope that uses a Thorlabs CMOS digital camera. This is a light weight and easy to use adjustable telescope that can also be used as a spotting scope.  The focus is adjustable from 500-mm to 1000-mm by adding longer 1-inch Thorlabs tubes. The price for this telescope is ...

Specifications
3-inch Entrance Aperture: 3-inch Diameter
Data Sheet
ULS24 Solution Kit
Anitoa Systems LLC
Add to watch list
ULS24 Solution Kit
The ULS24 Solution Kit is an \"out of box\" solution to allow the user to conveniently evaluate Anitoa ULS24 Ultra Low-light CMOS imager chip. The ULS 24 Solution Kit includes the ULS24 sensor IC, an interface board, and software. This solution kit can readily interface with a PC via USB.

Specifications
Sensor Type: CMOS
Resolution: 576 MP
# Pixels (H): 24
# Pixels (V): 24
Pixel Size (H): 150 um
...
Data Sheet
ULS24 Product Brief
Anitoa Systems LLC
Add to watch list
ULS24 Product Brief
The Anitoa ULS24 is an ultra-low-light CMOS image sensor. Its low cost, small form factor and high level of integration make it optimally suited for use in a portable device in medical, scientific and industrial applications. An example of such application is a field portable nucleic-acid-test (NAT) system that performs molecular ...

Specifications
Sensor Type: CMOS
Resolution: 0.000576 MP
# Pixels (H): 24
# Pixels (V): 24
Pixel Size (H): 150 um
...
Data Sheet
IT‐FR‐08192‐00‐R TDI CCD Image Sensor
ANDANTA GmbH
Add to watch list
IT‐FR‐08192‐00‐R TDI CCD Image Sensor
With the IT‐FR‐08192‐00‐R sensor ANDANTA GmbH  builds on and expands its line of proprietary TDI CCD  image  sensors  by  offering  a  low  noise  and  high  sensitivity  sensor,  ...

Specifications
# Pixels (Resolution): <=8000
Pixel Size: 7um X 7um
Frame Rate: -- scans/sec
Data Sheet
X-Ray Detectors Digital Mammography
Analogic Corp
Add to watch list
X-Ray Detectors Digital Mammography
Our flat-panel, direct conversion digital detectors capture image data directly onto a patented detector made with a layer of amorphous selenium deposited onto a thin-film transistor array. Images of the breast are more precise and more supportive of correct diagnosis without burdening the patient. Our amorphous selenium technology ...

Specifications
Active Area (horizontal): 180 mm
Active Area (vertical): 240 mm
Image Resolution (actual): -- lp/mm
Image Size (horizontal): -- Pixels
Image Size (vertical): -- Pixels
...
Data Sheet
Mira130 1.3MP GS CMOS image Sensor
ams Sensors Germany GmbH
Add to watch list
Mira130 1.3MP GS CMOS image Sensor
Mira130 is a global shutter CMOS image sensor with NIR enhancement of the QE. It outputs monochrome images with an effective pixel array of 1080 H × 1280 V, and supports complex on-chip operations such as high dynamic range (HDR) mode, external triggering, windowing, horizontal or vertical mirroring. Its maximum frame rate is ...

Specifications
Sensor Type: CMOS
Resolution: 1.3 MP
# Pixels (H): 1080
# Pixels (V): 1280
Pixel Size (H): 2.7 um
...
Data Sheet
CMV50000 35mm 47.5Mp CMOS Machine Vision Image Sensor
ams Sensors Germany GmbH
Add to watch list
CMV50000 35mm 47.5Mp CMOS Machine Vision Image Sensor
The CMV50000 is a high speed CMOS image sensor with 7920 × 6004 effective pixels (47.5Mp) developed for machine vision and video applications. The image array consists of 4.6μm pipelined 8T global shutter pixels which allow exposure during read out, while performing true CDS (Correlated Double Sampling) operation. The image ...

Specifications
Sensor Type: CMOS
Resolution: 45.7 MP
# Pixels (H): 7920
# Pixels (V): 6004
Pixel Size (H): 4.6 um
...
Data Sheet
CSG14K - 1” Global Shutter Image Sensor
ams Sensors Germany GmbH
Add to watch list
CSG14K - 1” Global Shutter Image Sensor
The CSG14K_CSG8K is a high speed CMOS image sensor family developed for machine vision and video applications. The image array consists of 3.2 µm pipelined global shutter pixels, which allow exposure during read out, while performing true CDS (Correlated Double Sampling) operation. The image sensor has 16 sub-LVDS data output ...

Specifications
Sensor Type: CMOS
Resolution: 14 MP
# Pixels (H): 3856
# Pixels (V): 3600
Pixel Size (H): 3.2 um
...
Data Sheet
EDS SEM Applications FAST SDD And C2 Window
Amptek Inc
Add to watch list
EDS SEM Applications FAST SDD And C2 Window
Amptek is pleased to offer our improved line of silicon drift detectors (SDDs) for energy dispersive spectroscopy (EDS) use within scanning electron microscopes (SEMs). Using our proprietary Patented “C-Series” silicon nitride (Si3N4) X-ray windows, the low-energy response of our FAST SDD® extends down to beryllium ...

Specifications
Active Area (horizontal): 25 mm
Active Area (vertical): 25 mm
Image Resolution (actual): -- lp/mm
Image Size (horizontal): -- Pixels
Image Size (vertical): -- Pixels
...
Data Sheet
Patented C1 Low Energy X-Ray Windows
Amptek Inc
Add to watch list
Patented C1 Low Energy X-Ray Windows
Amptek Patented “C-Series” X-ray windows utilize silicon nitride (Si3N4) with an aluminum coating to extend the low energy response of our silicon drift detectors (SDDs) down to boron (B); they are available exclusively with our FastSDD®. Amptek provided an alternative to liquid nitrogen when it introduced ...

Specifications
Active Area (horizontal): 6.3 mm
Active Area (vertical): 30 mm
Image Resolution (actual): -- lp/mm
Image Size (horizontal): -- Pixels
Image Size (vertical): -- Pixels
...
Data Sheet
FAST SDD 25mm Ultra High Performance Silicon Drift Detector
Amptek Inc
Add to watch list
FAST SDD 25mm Ultra High Performance Silicon Drift Detector
Unlike our conventional SDDs which use a junction gate field-effect transistor (JFET) inside the hermetically sealed TO-8 package, along with an external preamplifier, the FAST SDD uses a complementary metal-oxide-semiconductor (CMOS) preamplifier inside the TO-8 package, and replaces the JFET with a metal-oxide-semiconductor ...

Specifications
Active Area (horizontal): 25 mm
Active Area (vertical): 17 mm
Image Resolution (actual): -- lp/mm
Image Size (horizontal): -- Pixels
Image Size (vertical): -- Pixels
...
Data Sheet
LARRY USB3648+ Scientific-grade CCD Linear Array Detector
Ames Photonics Inc
Add to watch list
LARRY USB3648+ Scientific-grade CCD Linear Array Detector
The LARRY USB3648+ is a CCD linear array detectors that offers cost-effective, scientific-grade performance for a wide range of spectroscopic applications.  It can be mounted to most spectrographs that have the output plane 10mm outside of the spectrograph. Standard and custom mounts are available. The LARRY series is based on ...

Specifications
# Pixels (Resolution): <=4000
Pixel Size: 10um X 200um, Other
Frame Rate: -- scans/sec
Data Sheet
LARRY USB2048+ Scientific-grade CCD Linear Array Detector
Ames Photonics Inc
Add to watch list
LARRY USB2048+ Scientific-grade CCD Linear Array Detector
The LARRY USB2048+ is a CCD linear array detectors which offers cost-effective, scientific-grade performance for a wide range of spectroscopic applications.  It can be mounted to most spectrographs that have the output plane 10mm outside of the spectrograph. Standard and custom mounts are available.   . The LARRY ...

Specifications
# Pixels (Resolution): <=2000
Pixel Size: 10um X 200um, Other
Frame Rate: -- scans/sec
Data Sheet
Beam Observation system BOS-18
Beam Imaging Solutions
Add to watch list
Beam Observation system BOS-18
In standard form, the model BOS-18 Beam Observation system has a 18mm diameter active area MCP and P-43 phosphor screen assembly, housed within a 2.75″ (70mm) conflat flange with glass viewport. Electrical connections to the phosophor screen and MCP are made with MHV feedthroughs. Optional configurations are discussed in ...

Specifications
Active Area Diameter: 18 mm
Spatial Resolution: -- mm
Number Of MCPs: 1
Data Sheet
133 MP High Resolution CMOS Image Sensor
Forza Silicon Corp
Add to watch list
133 MP High Resolution CMOS Image Sensor
133 MP High Resolution CMOS Image Sensor.

Specifications
Sensor Type: CMOS
Resolution: 133 MP
# Pixels (H): --
# Pixels (V): --
Pixel Size (H): 2.45 um
...
Data Sheet
163 MP High Resolution CMOS Image Sensor
Forza Silicon Corp
Add to watch list
163 MP High Resolution CMOS Image Sensor
163 MP High Resolution CMOS Image Sensor.

Specifications
Sensor Type: CMOS
Resolution: 163 MP
# Pixels (H): --
# Pixels (V): --
Pixel Size (H): 1.5 um
...
Data Sheet
Large Stitched X-Ray CMOS Image Sensor
Forza Silicon Corp
Add to watch list
Large Stitched X-Ray CMOS Image Sensor
Large Stitched X-Ray CMOS Image Sensor.

Specifications
Active Area (horizontal): -- mm
Active Area (vertical): -- mm
Image Resolution (actual): 1024800 lp/mm
Image Size (horizontal): 854 Pixels
Image Size (vertical): 1200 Pixels
...
Data Sheet
LTN4323 4K Monochrome Sensor
ITI Electro Optics Corp
Add to watch list
LTN4323 4K Monochrome Sensor
Fairchild lmaging\'s new BSI sCMOS 3.0  sensors define the next horizon in professional imaging. The BSI sCMOS 3.0 LTN4323 is a high performance sensor with market leading 0.7e- RMS read noise. Outstanding  low light performance is achieved  through  combining  extremely  low  noise  with ...

Specifications
Sensor Type: sCMOS
Resolution: 10.5 MP
# Pixels (H): 4432
# Pixels (V): 2368
Pixel Size (H): 4.6 um
...
Data Sheet
HWK4123 4K-120fps Ultra Low Light Sensor
ITI Electro Optics Corp
Add to watch list
HWK4123 4K-120fps Ultra Low Light Sensor
Fairchild Imaging’s new BSI sCMOS 3.0 sensors define the next horizon in professional imaging. The HWK4123 incorporates Fairchild Imaging’s new sCMOS 3.0 BSI technology, resulting in an ultra low light capable 4k sensor with market leading 0.5e- RMS read noise.  Combining the exceptionally low read noise with high ...

Specifications
Sensor Type: sCMOS
Resolution: 9.4 MP
# Pixels (H): 4096
# Pixels (V): 2300
Pixel Size (H): 4.6 um
...
Data Sheet
MST4323 High Performance 4K CMOS Image Sensor
ITI Electro Optics Corp
Add to watch list
MST4323 High Performance 4K CMOS Image Sensor
The MST4323 is a high performance 4K resolution CMOS image sensor with 86dB dynamic range and extremely low noise.  The greater than 14 stop dynamic range ensures capturing every scene detail under demanding lighting conditions.  Outstanding low light performance is achieved through high sensitivity combined with ...

Specifications
Sensor Type: CMOS
Resolution: 10.5 MP
# Pixels (H): 4432
# Pixels (V): 2368
Pixel Size (H): 4.6 um
...
Data Sheet
3390 MCP/RAE SENSOR HEAD
Quantar Technology Inc
Add to watch list
3390 MCP/RAE SENSOR HEAD

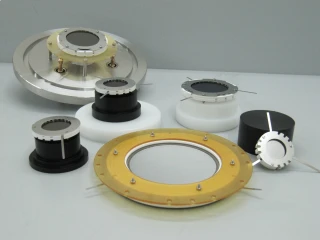

The 3300 Series are Open-face, MicroChannel Plate-based (MCP), Resistive Anode Encoder (RAE) position sensitive detector heads for charged-particles and energetic photons detection, including electrons, positrons, ions, energetic neutrals, EUV and soft x-rays, on standard or coated (e.g. CsI, KBr) MCP surface, operated in vacuum ...

Specifications
Active Area Diameter: 25 mm
Spatial Resolution: 0.25 mm
Number Of MCPs: 2
Data Sheet
CCD / FPA Socket Adapter Cassini
Talktronics Inc
Add to watch list
CCD / FPA Socket Adapter Cassini
Socket Adapters are used in the CCH Dewar to connect a given CCD or FPA to the Camera Head electronics.  A Camera Head may therefore support a number of sensors, with the appropriate configuration of the timing generator and support software.  All socket adapters are designed to permit cooling of the sensor by a \"cold ...
Data Sheet
CCD / FPA Socket Adapter TC223
Talktronics Inc
Add to watch list
CCD / FPA Socket Adapter TC223
Socket Adapters are used in the CCH Dewar to connect a given CCD or FPA to the Camera Head electronics.  A Camera Head may therefore support a number of sensors, with the appropriate configuration of the timing generator and support software.  All socket adapters are designed to permit cooling of the sensor by a \"cold ...
Data Sheet
1024L1 LINEAR ARRAY
Princeton Infrared Technologies
Add to watch list
1024L1 LINEAR ARRAY
The 1024L1 is a 1024x1 state of the art InGaAs linear array imager on 12.5µm pitch that was built for both spectroscopy and machine vision in the Short Wave Infrared Band. The 1024L1-12.5-T is an advanced digital array with the lowest read noise available <110e- for a 250μm tall pixel.  Our new advanced SWIR On-chip ...

Specifications
# Pixels (Resolution): <=1000
Pixel Size: 12.5um X 250um
Frame Rate: 32 scans/sec
Data Sheet
