Plasma Sources

EQ-10HR High Repetition Rate EUV Light Source
Energetiq
Add to watch list
EQ-10HR High Repetition Rate EUV Light Source
The EQ-10HR is a compact, easy-to-use, reliable, and cost-effective EUV light source based on Energetiq’s proven Electrodeless Z-Pinch™ technology using Xenon gas. The EQ-10HR high repetition rate EUV source is uniquely suited for metrology and research applications where simulation of high volume ...

Specifications
Central Wavelength: 13.5 nm
Spectral Bandwidth: 0.27 nm
EUV Output Power (2pi Steradian): 20 W
Pulse Repetition Rate: 1000 - 10000 Hz
Data Sheet
EQ-10HP High Power EUV Light Source
Energetiq
Add to watch list
EQ-10HP High Power EUV Light Source
The EQ-10HP is a compact, easy-to-use, reliable, and cost-effective EUV light source based on Energetiq’s proven Electrodeless Z-Pinch™ technology using Xenon gas. The EQ-10HP EUV source is uniquely suited for metrology and research applications. The EQ-10 series sources have become the workhorse EUV ...

Specifications
Central Wavelength: -- nm
Spectral Bandwidth: -- nm
EUV Output Power (2pi Steradian): 20 W
Pulse Repetition Rate: 1200 - 2500 Hz
Data Sheet
LDTLS Laser-Driven Tunable Light Source
Energetiq
Add to watch list
LDTLS Laser-Driven Tunable Light Source
The Laser-Driven Tunable Light Source (LDTLS™) is a compact, fully integrated and highly stable tunable broadband light source that is based on our proven Laser-Driven Light Source (LDLS™) technology. The LDTLS™ utilizes our EQ-77 LDLS™ broadband source and features the highest ...

Specifications
Spectral Output: 300 - 1100 nm
Numerical Aperture: 0.39
Typical Bulb Life: >9000 hrs
Data Sheet
EQ-400 LDLS Broadband Laser-Driven Light Source
Energetiq
Add to watch list
EQ-400 LDLS Broadband Laser-Driven Light Source
Based on the highly successful Laser-Driven Light Source (LDLS ™) technology, the EQ-400 offers the highest radiance and irradiance available in a truly broadband white light source. The EQ-400 features a compact lamp house, with clean construction that ensures long life and ultimate stability. With a ...

Specifications
Spectral Output: 170 - 2100 nm
Numerical Aperture: 0.50
Typical Bulb Life: >9000 hrs
Data Sheet
EQ-99CAL LDLS Broadband High Brightness Calibration Source
Energetiq
Add to watch list
EQ-99CAL LDLS Broadband High Brightness Calibration Source
Traditional calibration sources for radiometric calibration, such as Deuterium, Quartz Tungsten Halogen, and Xenonarc, all have limitations in spectral range. No one source covers the full UV-Visible range from 200nm-800nm with output at comparable levels across that spectrum. In addition, traditional sources ...

Specifications
Spectral Output: 200 - 800 nm
Numerical Aperture: 0.47
Typical Bulb Life: >9000 hrs
Data Sheet
EQ-99X LDLS Broadband Laser-Driven Light Source
Energetiq
Add to watch list
EQ-99X LDLS Broadband Laser-Driven Light Source
Advanced imaging and analytical spectroscopy applications in the life sciences and materials sciences need light sources capable of providing extremely high brightness across broad wavelength range. Traditionally, multiple lamps (Tungsten/Halogen, Xenon-arc, Deuterium) have been used to cover this ...

Specifications
Spectral Output: 170 - 2100 nm
Numerical Aperture: 0.47
Typical Bulb Life: >9000 hrs
Data Sheet

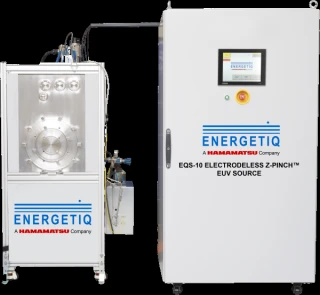

EQ-10 Compact EUV Source
Energetiq
Add to watch list
EQ-10 Compact EUV Source
The EQ-10 is a compact, easy-to-use, reliable, and cost-effective light source, based on Energetiq’s proven Electrodeless Z-Pinch™ technology using Xenon gas. The EQ-10 EUV source is uniquely suited for metrology and research applications. The EQ-10 has become the workhorse EUV source for the EUV community, through its proven ...

Specifications
Central Wavelength: 13.5 nm
Spectral Bandwidth: .27 nm
EUV Output Power (2pi Steradian): 10 W
Pulse Repetition Rate: 1200 - 2000 Hz
Data Sheet
EQ-99XFC Laser Driven Light Source
Energetiq
Add to watch list
EQ-99XFC Laser Driven Light Source
Energetiq has developed a revolutionary single-light source technology called the LDLS™ Laser-Driven Light Source that enables extreme high brightness with a relatively flat spectrum, from deep ultraviolet through visible into the near infrared, combined with life-time an order of magnitude longer than traditional lamps. The LDLS ...

Specifications
Spectral Output: 170 - 2100 nm
Numerical Aperture: .22
Typical Bulb Life: >9000 hrs
Data Sheet
EQ-77 Broadband Laser-Driven Source
Energetiq
Add to watch list
EQ-77 Broadband Laser-Driven Source
Based on the highly successful Laser-Driven Light Source(LDLS) technology, the EQ-77 offers the highest radiance and irradiance available in a truly broadband white light source. The EQ-77 features a compact lamp house, with clean construction that ensures long life and ultimate stability. With a 170nm-2100nm wavelength range and a ...

Specifications
Spectral Output: 170 - 2100 nm
Numerical Aperture: Up to .50
Typical Bulb Life: >9000 hrs
Data Sheet
