Area Scan Sensors for Industrial Imaging and Inspection

Did You Know?

Did you know that in many machine vision systems, the limiting factor is not pixel count but how efficiently an area scan sensor uses its full well capacity and dynamic range? A modern CMOS area sensor might offer full well capacities of 10–30 ke− per pixel and 70 dB+ dynamic range, yet if exposure and lens f-number are not matched to scene luminance, you can effectively waste half the bit depth and degrade defect detectability. Area scan sensors also suffer from rolling shutter distortions at high line speeds unless you choose global shutter architectures, which expose all pixels simultaneously and preserve geometric fidelity for moving targets.

Frequently Asked Questions

An area scan sensor is a 2D image sensor that captures a full rectangular field of view in a single exposure using an array of pixels arranged in rows and columns. In contrast, a line scan sensor captures one line of pixels at a time and reconstructs the image by relative motion between the sensor and the object. Area scan sensors are typically preferred for static or moderately moving scenes and applications where full-frame acquisition and simpler optics/mechanics are sufficient.

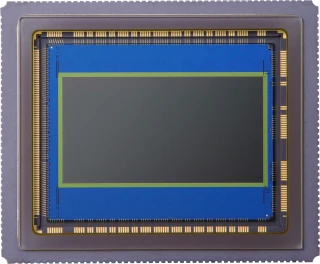

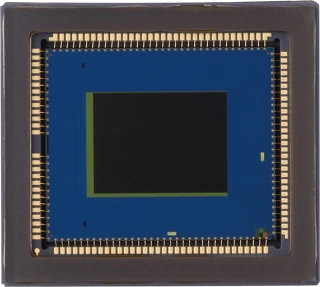

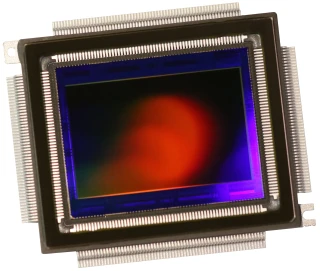

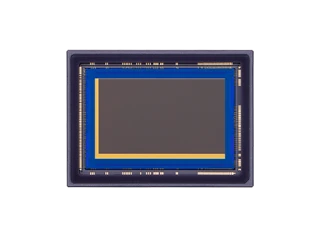

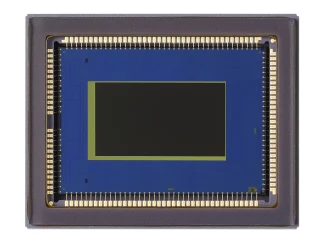

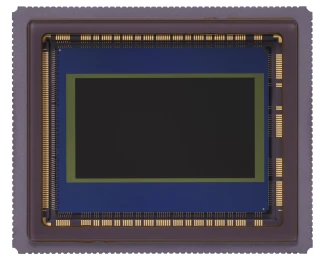

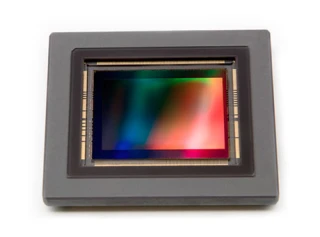

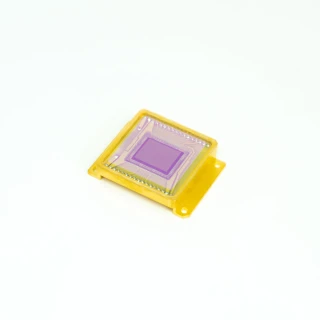

What Are Area Scan Sensors?

Area Scan Sensors are 2D imaging devices that capture a rectangular field in a single exposure. Unlike line scan sensors, which build images line by line, Area Scan Sensors acquire a full frame at once, making them suitable for static or moderately moving scenes. They are commonly based on CCD or CMOS architectures and integrated into industrial cameras for machine vision, inspection, and scientific imaging.

Typical Specifications of Area Scan Sensors

When evaluating Area Scan Sensors, engineers typically consider:

  • Resolution and pixel size: Total pixel count (e.g., 1–25 MP or higher) and pixel pitch (typically 2–10 µm) determine spatial sampling, field of view, and system MTF.
  • Sensor format: Common formats include 1/3”, 1/2”, 2/3”, 1”, and larger, affecting lens selection and image circle requirements.
  • Frame rate: Maximum frames per second at full resolution (from a few fps to hundreds) impacts suitability for high-speed inspection.
  • Dynamic range and SNR: Full-well capacity, read noise, and quantization (10–16 bits) define contrast handling and low-light performance.
  • Spectral response: Variants include monochrome, color (Bayer), NIR-enhanced, and specialty Area Scan Sensors for UV or SWIR bands.
  • Shutter type: Global or rolling shutter, influencing motion artifacts and timing.
  • Interface and packaging: Typical electrical interfaces (LVDS, Camera Link, CoaXPress, MIPI, etc.) and package types for integration.

Use Cases for Area Scan Sensors

Area Scan Sensors are used in 2D machine vision for assembly verification, PCB inspection, surface defect detection, and code reading. In R&D and microscopy, they support fluorescence imaging, brightfield microscopy, and general laboratory imaging. Additional applications include traffic monitoring, surveillance, dimensional metrology, and robotics guidance where full-frame capture is required.

Buyer Guidance on FindLight

On FindLight, you can compare Area Scan Sensors by resolution, pixel size, frame rate, spectral range, and interface to match your optical design and throughput targets. Review datasheets for QE curves, dark current, and timing diagrams to ensure compatibility with your illumination and trigger architecture. Use the platform to request quotes or technical clarifications from multiple vendors directly; no registration is required to initiate contact. This allows rapid evaluation of Area Scan Sensors for both prototyping and volume deployment in demanding imaging systems.
