Description
Canon’s 2.8 MP LI7060 CMOS sensor is equipped with an HDR drive function that achieves a wide 120 dB range at low noise levels. This wide range results in a greater ability to extract usable information even where there is a substantial difference between the lightest and darkest areas of an image. Even when using the sensor during normal drive operation, the sensor can achieve a dynamic range of 75 dB.
With a diagonal size of 1/2.32 inches (7.75 mm), the LI7060 features approximately 2.8 million effective pixels (1936 x 1456), a pixel size of 3.2 μm x 3.2 μm and a frame rate of 60 fps (30 fps during HDR drive operation). The sensor will be compatible with the MIPI CSI-2 interface used by consumer-oriented cameras for a wide variety of purposes.

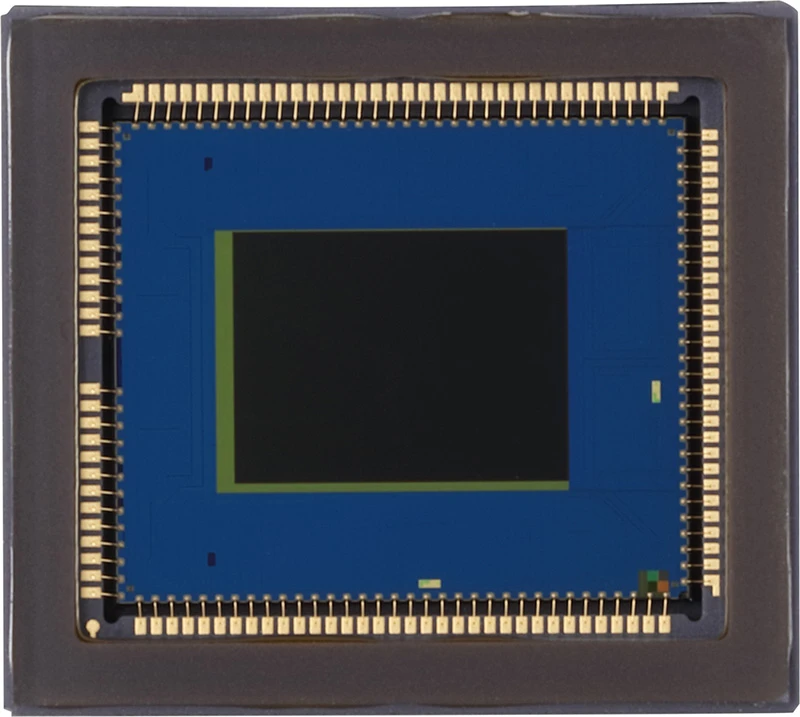

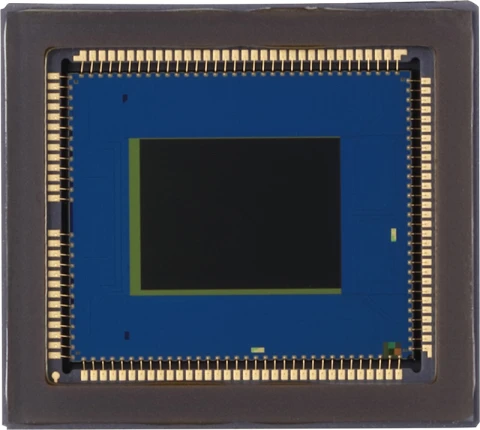

LI7060SA CMOS Sensor
Specifications
| Sensor Type: | CMOS |
|---|---|
| Resolution: | 2.82 MP |
| # Pixels (H): | 1936 |
| # Pixels (V): | 1456 |
| Pixel Size (H): | 3.2 um |
| Pixel Size (V): | 3.2 um |
| Full Frame Rate: | 60 fps |
| Sensor Size: | 1/2.3 inch |
| Diagonal: | 7.75 mm |
| Effective Pixels: | 2.82M |
| Pixel Size: | 3.2 μm x 3.2 μm |
| Recording Screen Size: | 6.20 mm x 4.66 mm |
| Output Format: | 576 Mbps in MIPI-CSI2 output 60 fps @12 bit (RAW12) |
| Main Clock Frequency: | 24MHz |
| Sensitivity (Green): | 22,000 e/lx/sec |
| Saturation: | 21,000 e |
| Dark Random Noise: | 2.3e rms @room temperature |
| Dark Current: | 17 e/sec @60°C |
| Power Consumption: | 320 mW (Typ.) @Full area readout at 60 fps |
| Power Supply Voltages: | 3.3V, 1.8V, 1.2V |
| Package Size: | 15.07 mm x 13.37 mm x 2.74 mm |
Download Data Sheet
Features
- Sensor Type: 1/2.3 inch Color CMOS Solid-State Image Sensor
- Resolution: 2.82 Megapixels with 1936 x 1456 Effective Pixels
- Pixel Size: 3.2 μm x 3.2 μm
- High Dynamic Range: Capable of High Dynamic Range Movie Recording
- Frame Rate: Full Area Readout at 60 fps
- Output Format: 576 Mbps in MIPI-CSI2 Output at 60 fps with 12-bit (RAW12)
- Main Clock Frequency: 24MHz (Recommended)
- Sensitivity: High Sensitivity with Green Sensitivity at 22,000 e/lx/sec
- Saturation: 21,000 e
- Noise: Dark Random Noise at 2.3e rms at Room Temperature
- Power Consumption: 320 mW (Typical) at Full Area Readout at 60 fps
- Power Supply Voltages: 3.3V, 1.8V, 1.2V
- Package: 94 Pin Ceramic LGA with Dimensions 15.07 mm x 13.37 mm x 2.74 mm
- Selectable Region of Interest: Feature Available
- Analog Gains: 0 dB, 6 dB
- Serial Communication: Supported
Applications
- High Sensitivity CMOS Sensor: The LI7060SA features a 7.75mm diagonal 2.82MP sensor with 3.2μm square pixels, designed for high sensitivity and performance.
- Full Area Readout: Capable of capturing full area images at 60 frames per second, making it ideal for high-speed applications.
- High Dynamic Range Recording: Enables capturing of scenes with a wide range of lighting conditions.
Frequently Asked Questions
What is the Canon LI7060SA image sensor?
The Canon LI7060SA is a 1/2.3 inch color CMOS solid-state image sensor with 2.82 million effective pixels, designed for high sensitivity and high dynamic range movie recording.
What is the pixel size of the LI7060SA sensor?
The LI7060SA sensor has a pixel size of 3.2 μm x 3.2 μm.
What is the frame rate capability of the LI7060SA sensor?
The LI7060SA sensor is capable of full area readout at 60 frames per second.
What are the power supply voltage requirements for the LI7060SA?
The LI7060SA requires power supply voltages of 3.3V, 1.8V, and 1.2V.
What is the sensitivity of the LI7060SA sensor?
The sensitivity of the LI7060SA sensor is 22,000 electrons per lux-second (e/lx/sec) for the green channel.
What is the output format of the LI7060SA?
The output format of the LI7060SA is 576 Mbps in MIPI-CSI2 output at 60 fps with 12-bit RAW data (RAW12).
What is the power consumption of the LI7060SA during full area readout?
The power consumption of the LI7060SA is typically 320 mW during full area readout at 60 fps.
