Description
The LI5070SA is a 10MP Super 35 global shutter CMOS image sensor with a 6.4μm square pixel array. LI5070SA has an RGB on-chip filter. The pixel structure has been designed to achieve 4K 60fps video output at 4288 x 2398 pixels via high-speed signal readout at 12-bit via 24 channels of digital signal output.

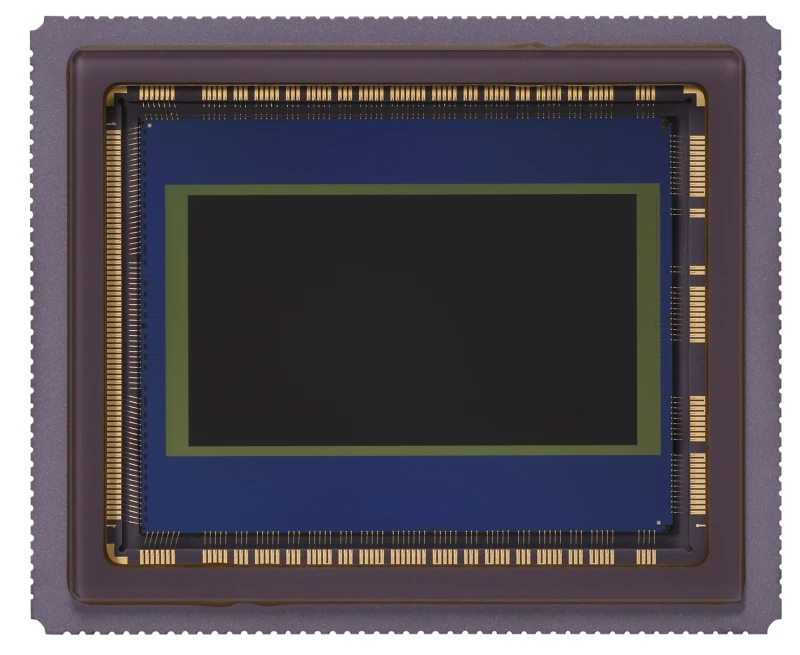

LI5070SA Canon CMOS Sensor
Specifications
| Sensor Type: | CMOS |
|---|---|
| Resolution: | 10.3 MP |
| # Pixels (H): | 4288 |
| # Pixels (V): | 2398 |
| Pixel Size (H): | 6.4 um |
| Pixel Size (V): | 6.4 um |
| Full Frame Rate: | 60 fps |
| Filter Type: | RGB |
| Sensitivity: | 90,000 (Green) e/lx/sec |
| Sensor Size: | Super 35 |
| Number Of Effective Pixels: | 4288 x 2398 |
| Pixel Size: | 6.4 μm x 6.4 μm |
| Scan Type: | Progressive scan |
| Shutter: | Global shutter |
| Maximum Frame Rate: | 60 fps, Normal |
| Saturation: | 25,000 e @Analog gain x1 |
| Dark Random Noise: | 2.0 e-rms @ 18dB |
| Dark Current: | 46 e/sec@ 60 ℃ |
| Drive Frequency: | 60 MHz (recommended) |
| Output Channels: | Data: 24 lanes, Clock: 2 lane |
| Output Format: | LVDS output, 720 Mbps@12 bit |
| Power Consumption: | 1.8 W @ 60 fps full area |
| Package Type: | 170 pin ceramic LCC |
| Package Size: | 46.00 mm x 38.00 mm x 3.58 mm |
Download Data Sheet
Features
- High Sensitivity: The LI5070SAC features a sensitivity of 90,000 (Green) e/lx/sec, making it ideal for capturing high-quality images in various lighting conditions.
- Super 35 Sensor Size: Equipped with a Super 35 sensor, this image sensor is perfect for professional video and photography applications.
- 10 MP Resolution: Boasting a resolution of 4288 x 2398 effective pixels, this sensor delivers stunning 4K image quality.
- Global Shutter: The global shutter technology ensures distortion-free images, even with fast-moving subjects.
- High Frame Rate: Capable of capturing video at up to 60 fps at full resolution, ensuring smooth and detailed video output.
- Low Noise: With a dark random noise level of 2.0 e-rms @ 18dB, the sensor provides clear and noise-free images.
- Efficient Power Consumption: Consumes only 1.8 W at 60 fps for full area operation, optimizing energy efficiency.
- Robust Output: Features 24 data lanes and 2 clock lanes with LVDS output at 720 Mbps @ 12 bit, supporting high-speed data transfer.
- Compact Package: The sensor is housed in a 170 pin ceramic LCC package measuring 46.00 mm x 38.00 mm x 3.58 mm, making it suitable for various applications.
- RGB On-Chip Filter: Integrated RGB filter enhances color accuracy and image quality.
Applications
- High-end security
- Cinema
Frequently Asked Questions
What is the model number of the image sensor?
The model number of the image sensor is LI5070SAC.
What type of shutter does the LI5070SAC use?
The LI5070SAC uses a global shutter.
What is the maximum frame rate of the LI5070SAC at full resolution?
The maximum frame rate of the LI5070SAC at full resolution is 60 frames per second.
What is the sensor size of the LI5070SAC?
The sensor size of the LI5070SAC is Super 35.
How many effective pixels does the LI5070SAC have?
The LI5070SAC has 4288 x 2398 effective pixels.
What is the pixel size of the LI5070SAC?
The pixel size of the LI5070SAC is 6.4 μm x 6.4 μm.
What is the power consumption of the LI5070SAC at full frame rate?
The power consumption of the LI5070SAC at 60 fps full area is 1.8 W.
