Description

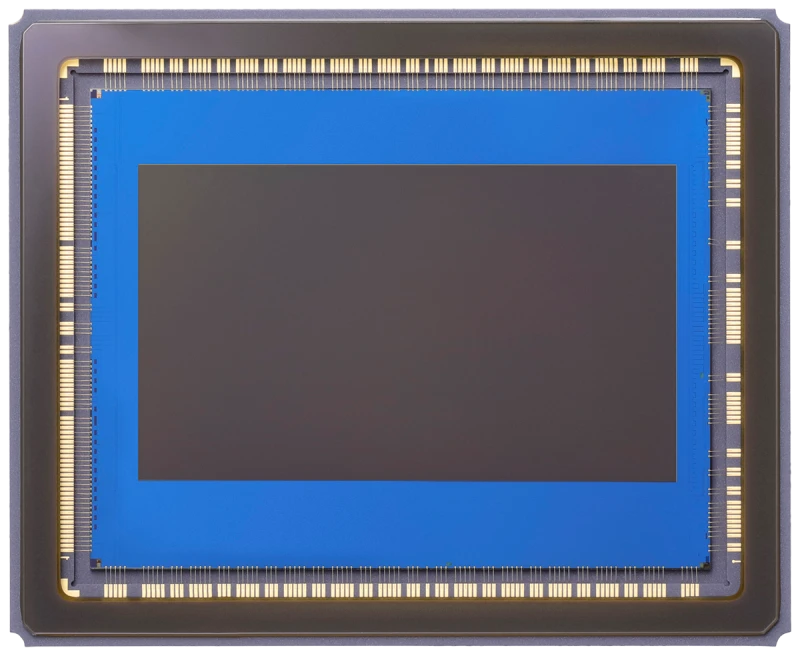

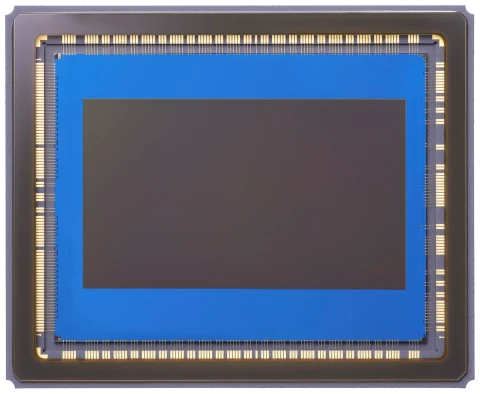

LI5030SA is a CMOS type of solid-state image sensor with a 35mm full frame effective pixel array of 19 Megapixels. It uses a global shutter function instead of conventional rolling shutter. It enables simultaneous exposure timing for all 19 Mega pixels. It can output an effective 5688 x 3334 pixels of video at 57.99 fps and 12bit via 24 channels of digital signal output. LI5030SA series consists of LI5030SAC (color), LI5030SAI (RGBIR), LI5030SAM (monochrome) and LI5030SAN (Naked). LI5030SAN does not have a micro lens or color filter. LI5030 has high sensitivity due to it’s large 6.4um pixel size and high resolution at 19 Megapixels. High sensitivity + High resolution + Global shutter enables high definition picture capture of high speed objects.
LI5030SA CMOS Sensor
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| Resolution: | 19 MP |
| # Pixels (H): | 5688 |
| # Pixels (V): | 3334 |
| Pixel Size (H): | 6.4 um |
| Pixel Size (V): | 6.4 um |
| Full Frame Rate: | 60 fps |
| Filters: | Mono, RGB, RGB-IR, Naked |
| Shutter: | Global |
Features
- Global Shutter
- LI5030SAN - No microlens, No CFA and cover glass removable
Applications
- Microscopy
- Traffic Surveillance
- Mapping
Frequently Asked Questions
The Canon LI5030SA is a 35mm full frame CMOS image sensor with a 19MP global shutter, designed for high-quality video output and various imaging applications.
The LI5030SA series includes four versions: LI5030SAC (color sensor), LI5030SAI (RGBIR sensor), LI5030SAM (monochrome sensor), and LI5030SAN (naked sensor without a micro lens and color filter).
The pixel size of the LI5030SA sensor is 6.4μm x 6.4μm.
The LI5030SA sensor outputs data in LVDS format with a data rate of 720 Mbps at 12 bits per channel.
The typical power consumption of the LI5030SA sensor is 2400 mW when operating at 57.99 fps with the full area.
The sensitivity for LI5030SAC (Green) is 81,000 e/lx/sec, LI5030SAI (Green) is 80,000 e/lx/sec, LI5030SAM is 170,000 e/lx/sec, and LI5030SAN is 30,000 e/lx/sec.
The recommended main clock frequency for the LI5030SA sensor is 60 MHz.
