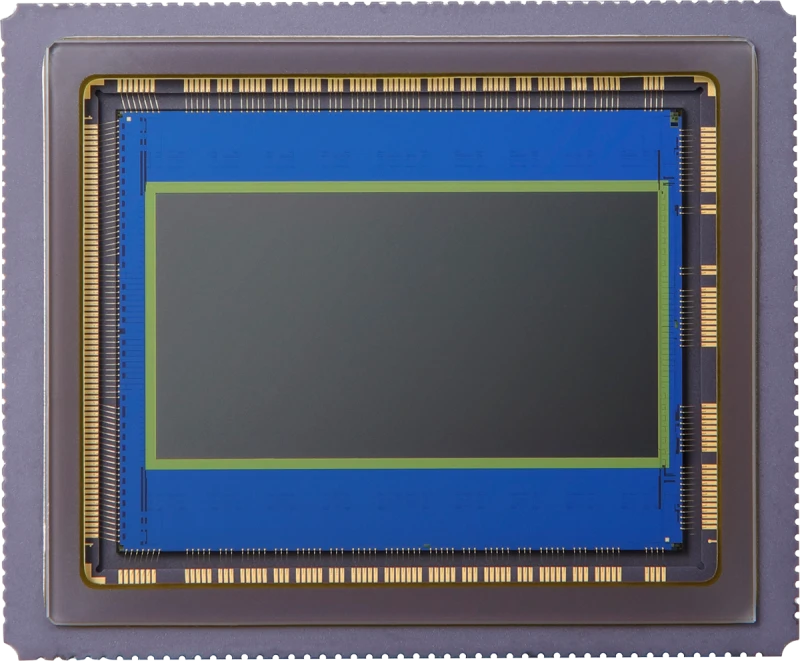

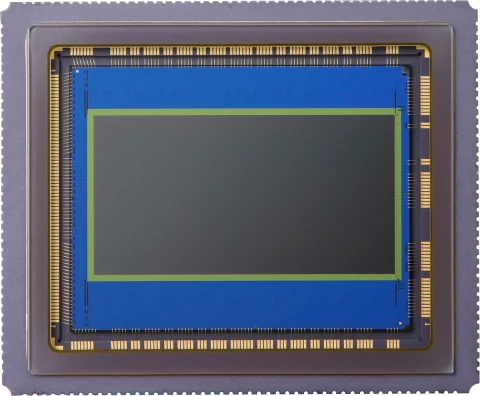

LI7080SA CMOS Sensor

Visit the Canon USA Store

Specifications

Sensor Type: CMOS
Resolution: 10.8 MP
# Pixels (H): 4536
# Pixels (V): 2400
Pixel Size (H): 6.4 um
Pixel Size (V): 6.4 um
Full Frame Rate: 120 fps
Diagonal Size: 32.8mm
Effective Pixels: 10.8MP
Pixel Size: 6.4μm x 6.4μm
Frame Rate: 120fps
Recording Screen Size: 29.0 mm x 15.4 mm
Number Of Effective Pixels: 4536 x 2400
Output Format: LVDS output, 840 Mbps @14bit
Main Clock Frequency: 60 MHz
Analog Gain: -6dB, 0dB, 6dB, 12dB, 18dB and 24dB
Saturation: 82,000 e (Typ.) @120fps
Sensitivity: 85,000 e/lx/sec (Typ.)
Dark Random Noise: 2.2 erms (Typ.) @18dB
Dark Current: 33 e/sec (Typ.) @60°C, 18dB
Power Consumption: 2.3 W (Typ.) @120fps
Power Supply Voltage: 3.5V, 3.3V, 1.8V, -1.2V, 2.62V, 2.5V, 1.6V
Package Size: 46.00 mm x 38.00 mm x 3.58 mm
Document icon Download Data Sheet Download icon

Features


  • Super 35mm CMOS Sensor: The LI7080SA features a Super 35mm size CMOS sensor, perfect for high-end security and cinema cameras.

  • High Resolution and Frame Rate: Offers 10.8 megapixels with a resolution of 4536 x 2400 and supports DCI 4K video shooting at 120 fps.

  • Low Noise and High Sensitivity: Designed for low noise with a dark random noise of 2.2 erms (Typ.) @18dB and high sensitivity of 85,000 e/lx/sec (Typ.).

  • Color and Shutter Capabilities: Includes the LI7080SAC color sensor with an RGB on-chip color filter and a rolling shutter.

  • Advanced Output Format: LVDS output at 840 Mbps with 14-bit data depth, supporting 30 data lanes and 2 clock lanes.

  • All Pixel Readout: Capable of reading all pixels at 120 fps for superior image capture.

  • Analog Gain Options: Provides multiple analog gain settings: -6dB, 0dB, 6dB, 12dB, 18dB, and 24dB.

  • Efficient Power Usage: Typical power consumption is 2.3 W at 120 fps, with a versatile power supply voltage range.

  • Robust Build: Packaged in a 170-pin ceramic LCC with dimensions of 46.00 mm x 38.00 mm x 3.58 mm.

Applications


  • High-End Security Cameras: The LI7080SA sensor's low noise and high frame rate capabilities make it ideal for advanced security systems requiring clear, detailed footage.

  • Cinema Cameras: With its ability to capture DCI 4K video at 120 fps, this sensor is perfect for professional cinema cameras used in filmmaking.

  • Broadcast Cameras: The sensor's high sensitivity and fast frame rate support high-quality live broadcasting.

  • Surveillance Equipment: The LI7080SA's high resolution and low-light performance enhance surveillance applications, providing superior image quality even in challenging lighting conditions.

  • Scientific Imaging: Its precise pixel arrangement and high sensitivity make it suitable for scientific research requiring detailed imaging.

  • Industrial Inspection: The sensor's high resolution and rapid frame rate are beneficial for industrial inspection systems that demand accurate and fast imaging.
