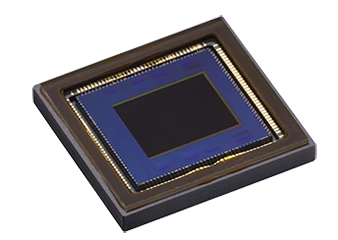

LI5040SA CMOS Sensor
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Description
The LI5040SA global shutter image sensor employs an advanced pixel design introducing drive readout and gathering structures which help significantly reduce noise, and contributing to a wide dynamic range with a power consumption of 500mW. Equipped with a 3.4μm pixel size and all pixel progressive reading at 120fps, the 2/3” sensor size with 5.33 million effective pixels (2592 x 2056) easily allows for applications in machine vision and other industrial environments where smaller size and high performance are required. It is available in RGB, Monochrome, and a specialized RGB‐NIR color filter.
LI5040SA CMOS Sensor
Specifications |
|
---|---|
Sensor Type: | CMOS |
Resolution: | 5.33 MP |
# Pixels (H): | 2592 |
# Pixels (V): | 2056 |
Pixel Size (H): | 3.4 um |
Pixel Size (V): | 3.4 um |
Full Frame Rate: | 120 fps |
Filters: | Mono, RGB, RGB-IR |
Shutter: | Global |
Features
- Wide Dynamic Range
- Low Power
- Global Shutter
- Region of Interest
- 120fps
Applications
- Industrial
- Automotive
- Drone
- Embedded Vision
- Inspection
- Manufacturing
- Medical
- Surveillance
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The power consumption of the LI5040SA CMOS sensor is 500mW.
The LI5040SA CMOS sensor can support up to 8 region of interest (ROI) areas, which can overlap, and which the size and position of each area can be independently defined to allow greater flexibility based on end user applications.
