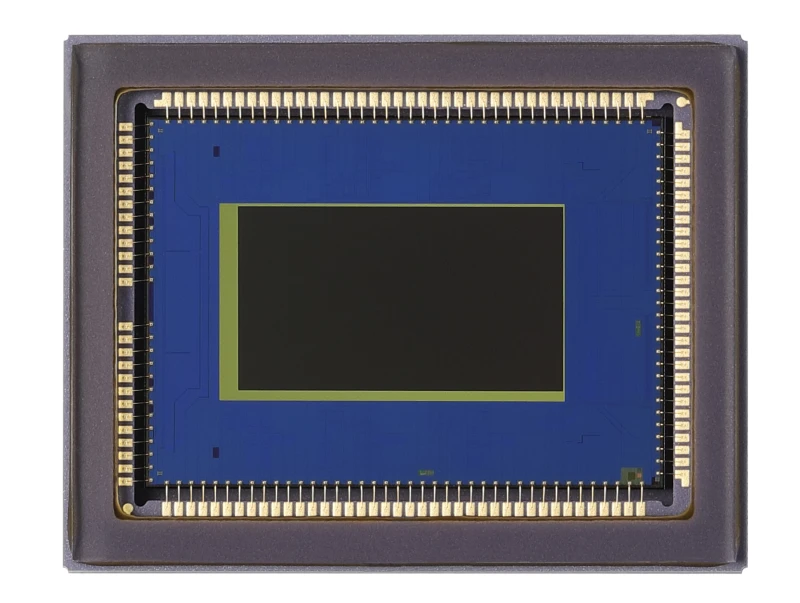

LI7070SA CMOS Sensor
Description
The LI7070SA is a 1/1.8" rolling shutter CMOS image sensor with 2.12MP in a 4.1μm square pixel array. LI7070SA has an RGB or Mono on- chip filter options. It is enhanced for increased NIR sensitivity and can output an 1936 x 1096 pixels of video at 60 fps at 12 bit via 4 channels of digital signal output. This NIR enhancement can enable imaging in dark environments where it is difficult to see with the naked eye, the sensor can also be used in industrial applications such as inspection needs in dark places, and in medical applications such as fluorescent angiography.
LI7070SA CMOS Sensor
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| Resolution: | 2.12 MP |
| # Pixels (H): | 1936 |
| # Pixels (V): | 1096 |
| Pixel Size (H): | 4.1 um |
| Pixel Size (V): | 4.1 um |
| Full Frame Rate: | 60 fps |
| Filters: | Mono, RGB |
| Shutter: | Rolling |
Features
- HDR Function
- NIR Enhanced
Applications
- Industrial Inspection
- Medical Imaging
