Description
- Unique Dual-response mode
- SWIR InGaAs sensor designed and manufactured by NIT, in France
- VGA SWIR InGaAs detector, 640×512 active pixels, 15 µm square pixels, 12.3mm diagonal
- High QE InGaAs: 80% from 900nm-1.7µm,
- Dual-response mode: High Dynamic Range, thanks to its patented Solar Cell pixel structure: 120 dB, Logarithmic mode – no illumination saturation
- High sensitivity mode with CTIA linear structure, dual gain, Correlated Double sampling (CDS), low read-out noise
- TEC
- Low power consumption
- Defense & Industrial application uses

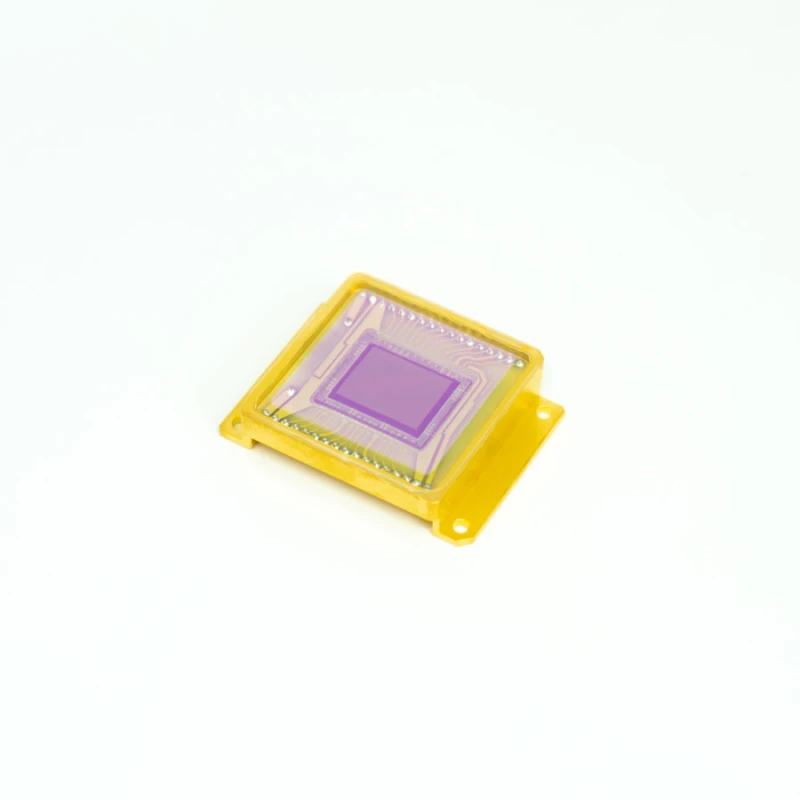

NSC1601 SWIR InGaAs Sensor
Specifications
| Sensor Type: | InGaAs |
|---|---|
| Resolution: | 0.3 MP |
| # Pixels (H): | 640 |
| # Pixels (V): | 512 |
| Pixel Size (H): | 15 um |
| Pixel Size (V): | 15 um |
| Full Frame Rate: | 220 fps |
| Dynamic Range: | 120dB |
| Weight: | <20g |
| Read-out Noise: | 50e- (CTIA) |
| Power Consumption: | <250mW |
| Operation Temperature: | -40°C to 80°C |
Download Data Sheet
Applications
- Industrial NIR imaging
- Pharmaceutical Food
- Welding Laser instrument
- Semiconductor inspection Agricultural
- Process Control Surveillance
