Description
The 35MMFHDXSCAES CMOS sensor delivers high-sensitivity, low-noise imaging performance, even in exceptionally low-light environments. The sensor\'s pixels and readout circuitry employ new technologies that reduce noise, which tends to increase as pixel size increases. High sensitivity and increased well depth have been achieved through a larger pixel size of 19μm x 19μm (square) with proprietary device design technologies.

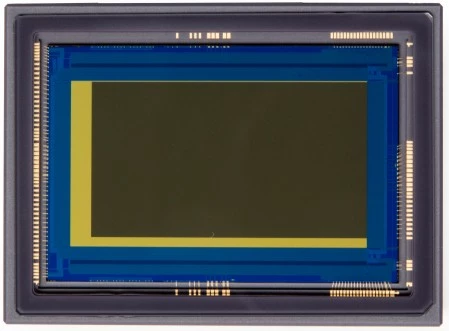

35MMFHDXSCA CMOS Sensor
Specifications
| Sensor Type: | CMOS |
|---|---|
| Resolution: | 2.76 MP |
| # Pixels (H): | 2160 |
| # Pixels (V): | 1280 |
| Pixel Size (H): | 19 um |
| Pixel Size (V): | 19 um |
| Full Frame Rate: | 98 fps |
| Resolution: | 2160×1280 |
| Max Frame Rate (All Pixels): | 98 fps |
| Pixel Size: | 19μm x 19μm |
| Sensor Size: | 41.04mm x 24.32mm |
| Sensitivity (Green): | 1,100,000 e/lx/sec @gainx1 |
| Quantum Efficiency (Green, 525nm): | 62% |
| Shutter: | Rolling Shutter |
| Register Control Type: | Three Wire Serial Communication |
| Package Type: | 180 pin ceramic PGA |
| Saturation: | 61,000e @gain x1 |
| Conversion Gain: | 5.6 μV/e @gain x1 |
| Dark Random Noise (Room Temp): | 2.2e rms @gain x16 |
| Dark Current (-20° C): | 0.003 e/sec |
| Dark Current (Room Temp): | 60 e/sec |
| Drive Frequency: | 16 ch x 21 MHz (Recommended) |
| Output Format: | 16 Channel Analog Outputs (Differential) |
| Column Amplifier Gains: | x1, x2, x4, x8, x16 |
| Power Consumption: | 1.7W Typ. (@ all pixels readout at 60 fps) |
| Power Supply Voltage: | 5.0 V, 3.3 V |
| Package Size: | 60.9mm x 44.6mm x 3.57mm |
Download Data Sheet
Features
- Wide Angle of View
- Readout position and Frame Rate Control
- Low Dark Current
Applications
- Astronomy
- Surveillance
- Security
- Industrial
- Machine Vision
- Underwater
- Medical
Frequently Asked Questions
What is the resolution of the 35MMFHDXSCA CMOS sensor?
The full readout resolution of the sensor is 2160x1280.
What is the pixel size of the sensor?
The pixel size of the sensor is 19μm x 19μm (square).
What is the maximum frame rate of the sensor?
The maximum frame rate of the sensor is 98 fps for all pixels.
What applications is the sensor suitable for?
The sensor is suitable for a range of applications including astronomy, surveillance, security, industrial machine vision, underwater, and medical.
What is the dark current of the sensor?
The dark current of the sensor is 2.2e rms at gain x16 at room temperature and 0.003 e/sec at -20°C.
