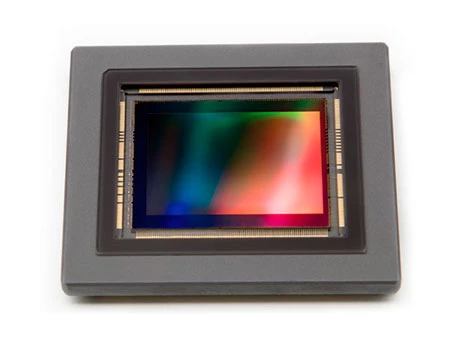

LI8010SA CMOS Sensor by Canon

Name: LI8010SA CMOS Sensor by Canon
Brand: Canon USA
Availability: InStock

Description

The LI8010SA is an ultra-high resolution CMOS sensor with 13272 x 9176
effective pixels. It has a size equivalent to APS-H (29.2mm x 20.2mm),
and a square pixel arrangement of 2.2μm x 2.2μm with 122 million
effective pixels. Ultra-high-resolution is made possible by parallel signal
processing, which reads signals at high speed from multiple pixels. All
pixel progressive reading of 9.4 fps is made possible by 28 digital signal
output channels. It is available in RGB, RGB-IR or in monochrome with twice the
sensitivity.

Specifications

Sensor Type:	CMOS
Resolution:	120 MP
# Pixels (H):	13272
# Pixels (V):	9176
Pixel Size (H):	2.2 um
Pixel Size (V):	2.2 um
Full Frame Rate:	9.4 fps
Sensor Type:	CMOS
Diagonal Size:	35.5 mm
Effective Pixels:	122 MP
Pixel Size:	2.2 μm x 2.2 μm
Frame Rate:	9.4 fps
Output Channels:	28 Data lanes, 14 Clock lanes
Output Format:	720 Mbps in LVDS, 9.4 fps @10 bit
Main Clock Frequency:	45 MHz
Saturation:	10,000 [e] @gain x0.5
Sensitivity (Monochrome):	20,000 [e/lx/sec]
Sensitivity (Color - Green):	10,000 [e/lx/sec]
Quantum Efficiency (Monochrome):	51% @ wavelength 550nm
Quantum Efficiency (Color - Green):	41% @ wavelength 550nm
Quantum Efficiency (IR):	9% @ wavelength 850nm
Dark Random Noise:	2.3 [e rms] @gain x8
Dark Current:	8.1 [e/sec] @gain x8, 60°C
Power Consumption:	2.5 W
Power Supply Voltage:	1.7 V, 3.5 V
Package Size:	55.00 mm x 47.80 mm x 4.49 mm

Download Data Sheet

Features

Ultra High Resolution

Optimized Pixel Design

RGB-IR Pixel Filter

Applications

3D Metrology

Aerial Mapping

Aeronautic Imaging

Digital Archiving

Document Scanning

Flat Panel Display Inspection

Intelligent Traffic Systems

Wide Area Surveillance

Machine Vision

Medical Imaging

Packaging & Inspection

Reconnaissance

Scientific Research

Security

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Canon USA

On FindLight:

since 2017

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the resolution of the LI8010SA CMOS sensor?

The LI8010SA CMOS sensor has an ultra-high resolution of 13272 x 9176 effective pixels, with a size equivalent to APS-H (29.2mm x 20.2mm) and a square pixel arrangement of 2.2μm x 2.2μm with 122 million effective pixels.

What is the frame rate of the LI8010SA CMOS sensor?

The LI8010SA CMOS sensor has an all pixel progressive reading of 9.4 fps, made possible by 28 digital signal output channels.

What are the available pixel filter options for the LI8010SA CMOS sensor?

The LI8010SA CMOS sensor is available in RGB, RGB-NIR, or in monochrome with twice the sensitivity. The RGB-NIR pixel filter replaces one of the green filters on a standard color CMOS sensor with a Near Infra-Red (NIR) filter, allowing for the separation of visible and NIR wavelengths.

What is the optimized pixel design of the LI8010SA CMOS sensor?

The LI8010SA CMOS sensor incorporates a wire layer between each pixel to mitigate crosstalk, which can create color shading and inaccurate color representation that degrades image quality.

What are some applications of the LI8010SA CMOS sensor?

The LI8010SA CMOS sensor is suitable for a wide range of applications, including 3D metrology, aerial mapping, aeronautic imaging, digital archiving, document scanning, flat panel display inspection, intelligent traffic systems, wide area surveillance, machine vision, medical imaging, packaging inspection, reconnaissance, scientific research, and security.
