Description
The LI7050SA is a 1/1.8 inch size (diagonal 9.12 mm) color CMOS solid-state image sensor with 2.12M effective pixels in a square pixel array. This sensor is capable of full area readout at 60 fps and realizes high-sensitivity FHD movie recording.

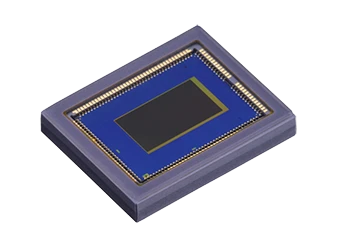

Canon LI7050SA CMOS Sensor
Specifications
| Sensor Type: | CMOS |
|---|---|
| Resolution: | 2.12 MP |
| # Pixels (H): | 1936 |
| # Pixels (V): | 1096 |
| Pixel Size (H): | 4.1 um |
| Pixel Size (V): | 4.1 um |
| Full Frame Rate: | 60 fps |
| Sensor Type: | CMOS |
| Shutter Type: | Global Shutter |
| Effective Pixels: | 5688 x 3334 |
| Pixel Size: | 6.4 μm x 6.4 μm |
| Frame Rate: | 57.99 fps |
| Output Channels: | 24 lanes |
| Output Format: | LVDS output, 720Mbps@12bit |
| Main Clock Frequency: | 60 MHz |
| Analog Gain: | 0dB, 6dB, 12dB, 18dB |
| Saturation: | 20,000e (Typ.) |
| Sensitivity LI5030SAC (Green): | 81,000 e/lx/sec |
| Sensitivity LI5030SAI (Green): | 80,000 e/lx/sec |
| Sensitivity LI5030SAM: | 170,000 e/lx/sec |
| Sensitivity LI5030SAN: | 30,000 e/lx/sec |
| Quantum Efficiency LI5030SAC: | 58%@515nm(Green peak), 58%@525nm |
| Quantum Efficiency LI5030SAI: | 58%@515nm(Green peak), 58%@525nm, 10%@820nm(IR peak), 8.4%@850nm |
| Quantum Efficiency LI5030SAM: | 68%@490nm(peak), 66%@525nm |
| Quantum Efficiency LI5030SAN: | 24%@478nm(peak), 23%@525nm |
| Dark Random Noise: | 1.8 erms @Analog gain 18dB |
| Dark Current: | 28 e/sec @Analog gain 18dB, 60°C |
| Power Consumption: | 2400 mW @57.99 fps full area |
| Power Supply Voltages: | 3.5V, 3.3V, 1.8V |
| Package Size: | 52.86mm x 43.22mm x 3.30mm |
Download Data Sheet
Features
- Low Light Imaging
- High Dynamic Range
Applications
- High-Resolution Imaging: The LI5030SA sensor offers a 35mm full-frame effective pixel array of 19 million pixels, providing exceptional image quality.
- Global Shutter Functionality: This feature allows for precise charge storage period control, minimizing motion artifacts in high-speed imaging applications.
- Surveillance applications
Frequently Asked Questions
What is the Canon LI5030SA image sensor?
The Canon LI5030SA is a 35mm full frame CMOS image sensor with a global shutter and a pixel array of 19 million pixels, capable of outputting video at 57.99 fps in 12-bit format.
What are the different versions of the LI5030SA sensor?
The LI5030SA series includes four versions: LI5030SAC (color sensor), LI5030SAI (RGBIR sensor), LI5030SAM (monochrome sensor), and LI5030SAN (naked sensor without a micro lens and color filter).
What is the pixel size of the LI5030SA sensor?
The pixel size of the LI5030SA sensor is 6.4 μm x 6.4 μm.
What are the power requirements for the LI5030SA sensor?
The LI5030SA sensor requires power supply voltages of 3.5V, 3.3V, and 1.8V, with a typical power consumption of 2400 mW at 57.99 fps full area.
What is the output format of the LI5030SA sensor?
The LI5030SA sensor outputs data in LVDS format at 720 Mbps with a 12-bit depth.
What is the sensitivity of the LI5030SA sensor in different versions?
The sensitivity varies by version: LI5030SAC (Green) is 81,000 e/lx/sec, LI5030SAI (Green) is 80,000 e/lx/sec, LI5030SAM is 170,000 e/lx/sec, and LI5030SAN is 30,000 e/lx/sec.
What is the typical dark random noise level of the LI5030SA sensor?
The typical dark random noise level of the LI5030SA sensor is 1.8 erms at an analog gain of 18dB.
