Canon LI7030SA CMOS Sensor
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Description
The Canon LI7030SA is a CMOS type solid-state imaging sensor having a size equivalent to 1 inch, and 3.2 μm square pixel arrangement with 12 mega effective pixels. Video of 4K3K at 24 fps (12bit), 4K2K at 60 fps (10bit) and HD720p at 120 fps (10bit) can be achieved. Based on Canon’s low-noise technology, LI7030SA has a high dynamic range and achieved excellent imaging characteristics at low illuminance.

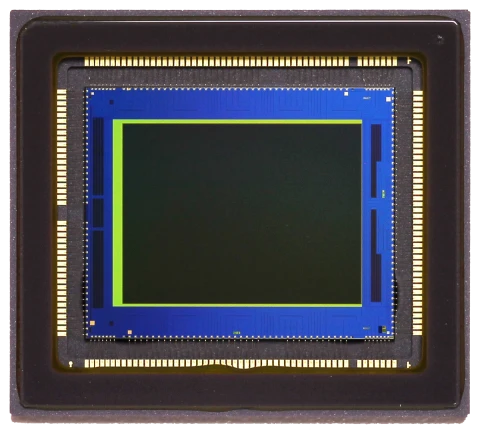

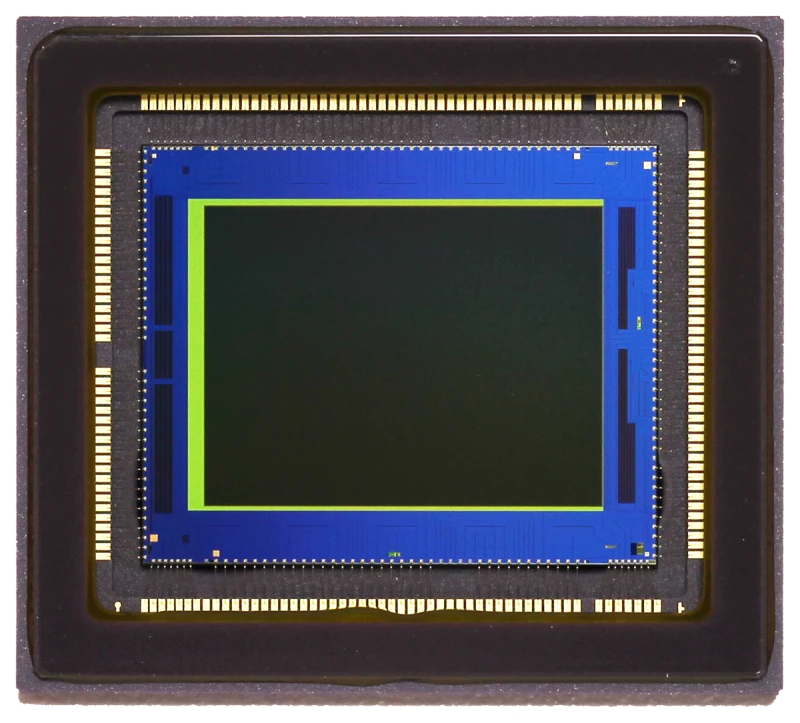

Canon LI7030SA CMOS Sensor
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| Resolution: | 12 MP |
| # Pixels (H): | 4004 |
| # Pixels (V): | 3000 |
| Pixel Size (H): | 3.2 um |
| Pixel Size (V): | 3.2 um |
| Full Frame Rate: | 120 fps |
| Recording Screen Size: | 12.8 mm x 9.6 mm |
| Number Of Effective Pixels: | 4004 x 3000 |
| Pixel Size: | 3.2 μm x 3.2 μm |
| Number Of Output Channels: | Data 12 lanes, Clock 2 lanes |
| Output Format: | LVDS output, 648 Mbps (max.) |
| Main Clock Frequency: | 27 MHz |
| Analog Gain: | 0dB, 6dB, 12dB, 18dB and 24dB |
| Saturation: | 25,000 e |
| Sensitivity: | 22,000 e/lx/sec |
| Dark Random Noise: | 2.6 erms @4K3K readout, 24 fps (12bit) |
| Dark Current: | 17 e/sec @60°C, 4K3K readout, 24 fps (12bit) |
| Power Consumption: | 540 mW @4K2K readout, 60fps (10bit) |
| Power Supply Voltage: | 3.3 V, 1.8V |
| Package Size: | 25.10 mm x 22.20 mm x 2.99 mm |
Features
- Canon CMOS Image Sensor: 1-inch 12MP CMOS sensor with 16mm diagonal.
- High Resolution: 12 mega effective pixels with a 4004 x 3000 pixel arrangement.
- Pixel Size: 3.2 μm x 3.2 μm square pixels for detailed image capture.
- Video Capabilities:
- 4K3K video at 24 fps (12bit)
- 4K2K video at 60 fps (10bit)
- HD720p video at 120 fps (10bit)
- Low Noise Technology: High dynamic range and excellent imaging in low light conditions.
- Color Sensor: LI7030SAC features an RGB on-chip color filter for vibrant color reproduction.
- Rolling Shutter: Efficient shutter mechanism for capturing moving subjects.
- Output Channels: 12 data lanes and 2 clock lanes for efficient data transfer.
- Output Format: LVDS output with a maximum of 648 Mbps.
- Main Clock Frequency: Recommended 27 MHz for optimal performance.
- Analog Gain Options: 0dB, 6dB, 12dB, 18dB, and 24dB for varying lighting conditions.
- Serial Communication: Supports three-wire serial communication for easy integration.
- Saturation: 25,000 e for high-quality image capture.
- Sensitivity: 22,000 e/lx/sec ensures excellent performance in low light.
- Dark Random Noise: 2.6 erms at 4K3K readout, 24 fps (12bit) for clear images.
- Dark Current: 17 e/sec at 60°C for stable performance.
- Power Consumption: 540 mW at 4K2K readout, 60 fps (10bit) for energy efficiency.
- Power Supply Voltage: Operates at 3.3 V and 1.8 V.
- Durable Package: 154-pin ceramic LGA with dimensions of 25.10 mm x 22.
Applications
- High-Resolution Imaging: The sensor offers a 12MP resolution with a 1-inch size, ideal for capturing detailed images.
- Low-Noise Technology: Canon's low-noise technology ensures high dynamic range and excellent imaging in low-light conditions.
- Serial Communication: Supports three-wire serial communication for easy integration.
Frequently Asked Questions
The Canon LI7030SA is a CMOS type solid-state imaging sensor with a size equivalent to 1 inch, featuring 12 mega effective pixels and a 3.2 μm square pixel arrangement.
The LI7030SA supports 4K3K video at 24 fps (12bit), 4K2K video at 60 fps (10bit), and HD720p video at 120 fps (10bit).
The LI7030SA sensor has a pixel size of 3.2 μm x 3.2 μm.
The LI7030SA requires a power supply voltage of 3.3 V and 1.8 V.
The maximum output format speed of the LI7030SA is 648 Mbps.
The dark random noise level for the LI7030SA is 2.6 erms at 4K3K readout, 24 fps (12bit).
The sensitivity of the LI7030SA is 22,000 e/lx/sec.
