Description
This lattice matched InGaAs 2D SWIR focal plane array (FPA) allows for high resolution SWIR imaging at high frame rates >90fps. This small pitch array, 12μm, combined with the high quantum efficiency of the lattice matched InGaAs arrays enables impressive imaging in the SWIR band. It boasts an on board 14-bit A/D with very low read noise of <90e- per read. Princeton Infrared Technologies, Inc. offers this low power SWIR array by itself or in a TEC cooled package. It is also incorporated with camera electronics for a complete solution.

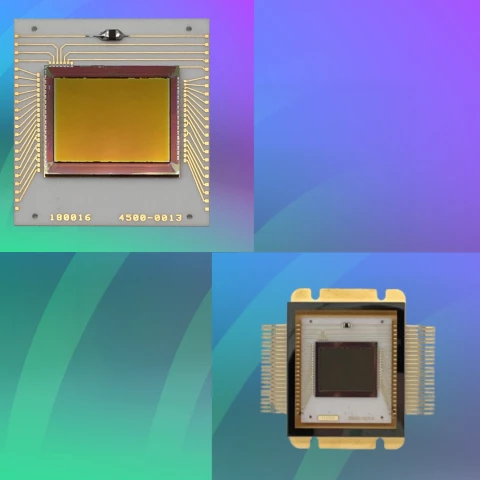

Our InGaAs 2D SWIR focal plane array is available in two configurations; a hermetically sealed single stage TEC or a ceramic submount.
Our SWIR camera has been integrated into an open source satellite system which can be found here: https://www.oresat.org/
The specifics of the design can be found here: https://www.oresat.org/technologies/cubesat-subsystems
PIRT1280A1-12 - SWIR InGaAs 2D Focal Plane Array
Specifications
Sensor Type: | InGaAs |
---|---|
Resolution: | 1 MP |
# Pixels (H): | 1280 |
# Pixels (V): | 1024 |
Pixel Size (H): | 1280 um |
Pixel Size (V): | 1024 um |
Full Frame Rate: | 90 fps |
Features
- 1280x1024 resolution
- Response from 0.4-1.7 um
- Small 12 µm pitch
- QE>75% from 1-1.6 um
- Snapshot exposure
- No image lag
- Low power <150 mW
- High frame rate >90 fps at 1280x1024
- 14 bit A/D on chip
- Low Read Noise <90e-
- Integration times from 50 µs to >3 minutes
- High Dynamic Range >1000:1
