Description

High-Performance UV–VIS Transmission Dip Probe for Harsh Chemical Environments: The TP300-UV-VIS Transmission Dip Probe is designed for absorbance and transmission spectroscopy measurements in chemically aggressive and harsh industrial environments. Engineered for UV–VIS spectroscopy applications from 200–1100 nm, the probe enables reliable inline process monitoring, chemical analysis, and laboratory transmission measurements across a wide range of industrial and scientific applications.

Constructed with chemically inert PEEK material and fused silica optics, the TP300 series provides exceptional chemical resistance, durability, and long-term stability in hostile operating environments. The robust probe architecture supports operation at temperatures up to 100 °C and pressures up to 100 psi, making it ideal for demanding process spectroscopy applications.

The innovative optical design directs light through the sample path to a reflective mirror and back to the receiving fiber, enabling efficient absorbance and transmission measurements while allowing free sample flow around the sensing region. Adjustable transmission tips support flexible optical path lengths for optimized measurement sensitivity across different sample concentrations and applications.

The TP300 probe is compatible with Ocean Optics and third-party spectrometers and light sources and can optionally support transmissive pH sensing films for integrated chemical monitoring applications.

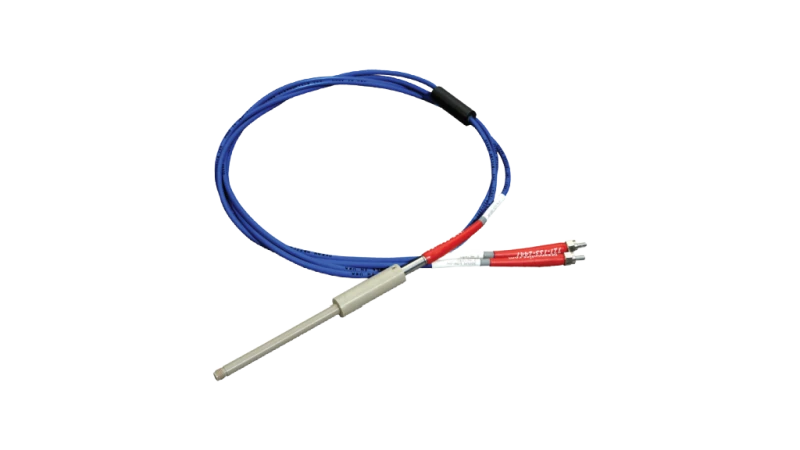

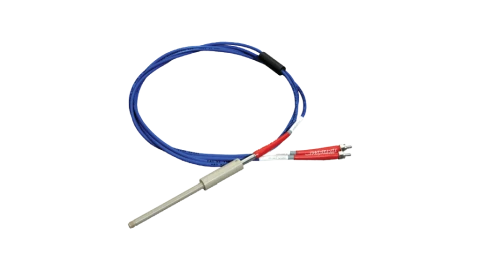

TP300-UV-VIS Transmission Dip Probe for Harsh Environments

Specifications

Transmission: 0.2 – 2.5 um
Temperature Range: 1 – 200 C
TP300-UV-VIS: 200-1100 nm, 300um fiber core
TP300-VIS-NIR: 400-2500 nm, 300um fiber core
Fiber Length: 2 meters
Probe Length: 107.9 mm
Fiber Core Diameter: 300 um
Outer Diameter: 6.35 mm with Peek sleeve
Optics: Fused silica
Operating Temperature: Up to 100 C without sleeve
Pressure: 100 psi
Connector: SMA 905
Fiber Jacketing: PVC Monocoil-PVDF zip tube
Breakout: 1.0 m from the end of the probe
Range: UV-VIS
Tip (flow Path): RTP-2-10 or RTP-10-20
Internal Materials: Second surface aluminum mirror
Sleeve Material: PEEK
Sleeve: DFTP300SLEEVE
Fiber Type: SR
Optional: pH tip (RT-PH)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compatibility: Designed to couple with Ocean Optics and third-party spectrometers and light sources for measuring absorbance and transmission in harsh environments.
  • Chemically Inert: Made from PEEK material, ensuring resistance to chemical reactions.
  • pH Measurement Capability: Can be equipped with an RT-PH tip for mounting transmissive pH films in the optical path.
  • Efficient Light Path: Light is directed through a mounted film to a mirror and redirected back, allowing for precise measurements.

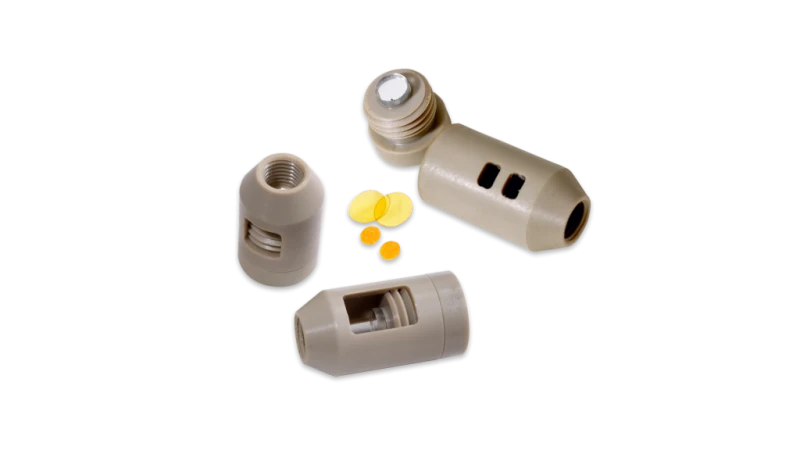

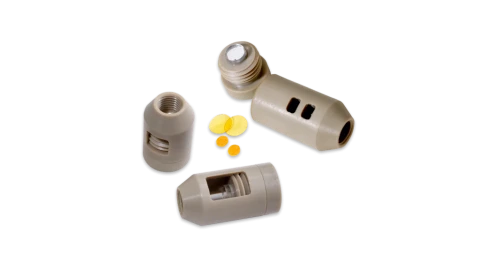

  • Adjustable Transmission Tip: Compatible with RTP-2-10 (adjustable 2-10 mm) for routine transmission measurements.
  • Durable Construction: Features a 3.175 mm diameter internal stainless steel assembly and a 6.35 mm PEEK sleeve.
  • Standardized Length: Probe length of 107.9 mm for consistent application.
  • High-Quality Optics: Utilizes fused silica optics and a second surface aluminum mirror for reliable performance.
  • Flexible Fiber Options: 2-meter fiber length with a 1.0 m breakout from the end of the probe.
  • Robust Fiber Design: 300 um fiber diameter with PVC Monocoil-PVDF zip tube jacketing.
  • Universal Connector: Equipped with an SMA 905 connector for easy integration.
  • Temperature and Pressure Resistant: Operates up to 100°C without sleeve and withstands up to 100 psi pressure.
  • Optional Accessories: Compatible with optional pH tip (RT-PH) for enhanced functionality.

Applications

  • Absorbance and Transmission Measurements: The TP300-UV-VIS Transmission Dip Probe is designed to measure the absorbance and transmission of solutions, even in harsh environments.
  • Chemically Inert Design: Made from PEEK, the probe is resistant to chemical corrosion, making it suitable for a variety of applications.
  • pH Measurement Capability: Can be equipped with a tip (RT-PH) for mounting transmissive pH films in the optical path, allowing for pH measurement.
  • Routine Transmission Measurements: By using an RTP-2-10 adjustable Transmission Tip, the probe can be used for standard transmission measurements.
  • Hostile Environment Compatibility: Designed as a Transmission Dip Probe for hostile environments, ensuring durability and reliability.

Frequently Asked Questions

What is the TP300-UV-VIS Transmission Dip Probe used for?
The TP300-UV-VIS Transmission Dip Probe is used to measure the absorbance and transmission of solutions in harsh environments by coupling with spectrometers and light sources.
What materials are used in the construction of the TP300-UV-VIS Probe for harsh environments?
The TP300-UV-VIS Probe is made from chemically inert PEEK material and features a fused silica optic with a second surface aluminum mirror.
What is the operating temperature and pressure range for the TP300-UV-VIS Probe?
The TP300-UV-VIS Probe can operate at temperatures up to 100°C without the sleeve and can withstand pressures up to 100 psi.
What is the purpose of the RTP-2-10 Transmission Tip?
The RTP-2-10 Transmission Tip is used to adjust the probe for routine transmission measurements, allowing for an adjustable path length between 2-10 mm.
Can the TP300-UV-VIS Probe be used for pH measurements?
Yes, the TP300-UV-VIS Probe can be equipped with an optional pH tip (RT-PH) for mounting transmissive pH films in the optical path.
What is the fiber length and breakout length of the TP300-UV-VIS Probe?
The fiber length of the TP300-UV-VIS Probe is 2 meters, with a breakout occurring 1.0 meter from the end of the probe.
What type of connector is used with the TP300-UV-VIS Probe?
The TP300-UV-VIS Probe uses an SMA 905 connector.

Got more questions? Use the inquiry form to ask the supplier directly.
