Description
FlexiSpec® product line includes the latest generation of Transmission (single pass) & TransFlex (dual pass) fiber optic probes to be used with any spectrometer or photometer. FlexiSpec® Single & Dual Pass fiber optic probes are compatible with process-interfaces to be cleanable and to enable reaction monitoring in lab, pilot plant and run full automated process control.

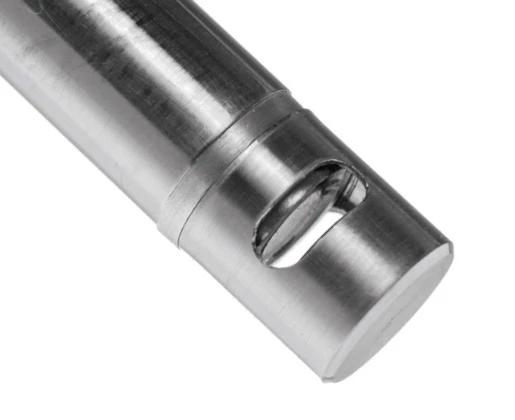

Fiber Optic Transmission Probe (Silica UV-Vis)
Specifications
Transmission: | 0.2 – 1.3 um |
---|---|
Temperature Range: | Not Specified |
Fiber Type: | Silica UV-Vis |
Gap Dimension: | 2, 5, 10, and 20 mm |
Minimum Bending Radius: | 120 mm |

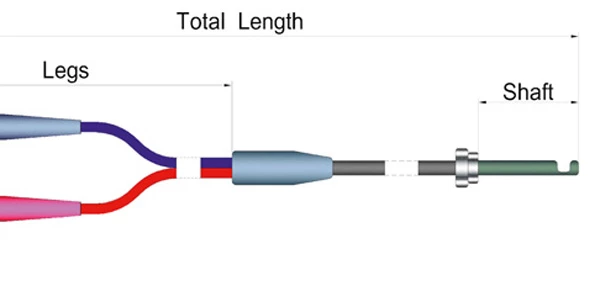

Total Length: | 1.5 m |
Shaft Length: | 230 mm |
Shaft Diameter: | 12 mm |
Applications
- Reaction Monitoring in real time
- Process Analytical Technologies (PAT)
- Crystallization Development & Screening
- Analytical Characterization
- Biopharmaceutical Analysis
- Biofuel Development & Production
Frequently Asked Questions
What is the FlexiSpec® product line?
The FlexiSpec® product line includes the latest generation of Transmission (single pass) & TransFlex (dual pass) fiber optic probes to be used with any spectrometer or photometer.
What are the applications of FlexiSpec® Single & Dual Pass fiber optic probes?
The applications of FlexiSpec® Single & Dual Pass fiber optic probes include Reaction Monitoring in real time, Process Analytical Technologies (PAT), Crystallization Development & Screening, Analytical Characterization, Biopharmaceutical Analysis, and Biofuel Development & Production.

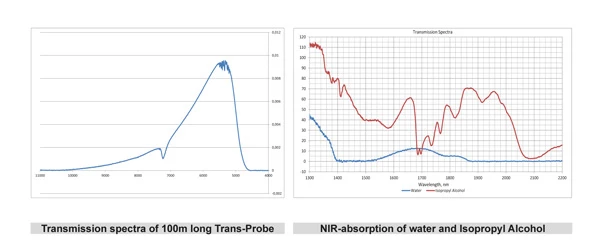

What is the transmission range of the Fiber Optic Transmission and Transflection Probes?
The transmission range of the Fiber Optic Transmission and Transflection Probes is 0.2 - 1.3 µm and 0.4 - 2.2 µm for both Transmission and Transflection probes.
What is the temperature range of the Fiber Optic Transmission and Transflection Probes?
The temperature range of the Fiber Optic Transmission and Transflection Probes is ≤ 200°C for all types of probes.
What are the compatible process-interfaces for FlexiSpec® Single & Dual Pass fiber optic probes?
The compatible process-interfaces for FlexiSpec® Single & Dual Pass fiber optic probes are Ceramat-FOS or SensoGate-FOS.
