Fiber Patch Cords for Precise Light Transport

Did You Know?

Fiber patch cords are the backbone of any flexible optical network, providing plug-and-play connectivity between devices, transceivers, patch panels, and test equipment. These pre-terminated cables consist of optical fibers with connectors on each end - such as LC, SC, ST, FC, or MPO - and are available in both single-mode and multimode variants. Designed for fast deployment and minimal insertion loss, patch cords come in various lengths, jacket materials, and polish types (UPC, APC) to suit different environments and system requirements. They're widely used in data centers, telecom backbones, enterprise LANs, and laboratory settings where frequent reconfiguration or testing is needed. Color-coded jackets and connector boots make it easy to manage and identify connections, while ruggedized and armored versions offer added durability in harsh conditions. Some patch cords even come with bend-insensitive fibers to maintain performance in tight routing spaces. When it comes to building scalable and high-speed optical networks, reliable fiber patch cords make all the difference - ensuring consistent, high-performance connections every time.

Related Resources

Frequently Asked Questions

Fiber patch cords are factory-terminated fiber optic jumper cables used to interconnect equipment, patch panels, and distribution frames in optical networks and test setups. Unlike bulk fiber cable, patch cords come with pre-polished and factory-assembled connectors on both ends (e.g., FC/PC, FC/APC, SC, LC, SMA) with specified length, jacket type, and performance specs such as insertion loss and return loss.

Overview of Fiber Patch Cords

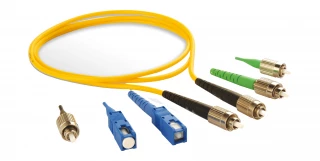

Fiber Patch Cords are short, connectorized fiber optic cables used to route optical signals between instruments, patch panels, and subsystems. They provide repeatable, low-loss light transport for lab setups, test benches, telecom racks, and OEM photonic systems. On FindLight, Fiber Patch Cords cover common single-mode and multimode formats engineered for stable coupling and low back-reflection.

Typical Specifications

When comparing Fiber Patch Cords, core and cladding size are primary: 9/125 µm single-mode, 50/125 µm and 62.5/125 µm multimode are standard. Operating wavelength ranges typically include 850 nm, 1310 nm, 1550 nm, or broader bands for specialty fibers. Key optical parameters are insertion loss (often <0.3–0.5 dB per connector) and return loss (>50 dB for UPC, >60 dB for APC types).

Connector formats on Fiber Patch Cords may include FC/PC, FC/APC, SC, LC, and SMA, with simplex or duplex configurations. Jacket materials are usually PVC or LSZH with outer diameters of 0.9 mm, 2.0 mm, or 3.0 mm, and optional armored or ruggedized designs for harsh environments. Lengths range from tens of centimeters for benchtop coupling to tens of meters for equipment interconnects.

Use Cases for Fiber Patch Cords

Fiber Patch Cords are used for instrument-to-instrument links, connecting lasers to modulators, couplers, or detectors, and routing signals in fiber optic communication and sensing systems. In R&D labs, they support flexible reconfiguration of test setups, while in OEM assemblies they provide defined, qualified light transport between subsystems with stable alignment and minimal drift.

Buyer Guidance on FindLight

When selecting Fiber Patch Cords on FindLight, start from your system wavelength and required modal regime (single-mode vs multimode). Match connector types and polish (UPC or APC) to your existing hardware to control insertion and return loss. Check numerical aperture, minimum bend radius, operating temperature, and jacket type if your application involves tight routing or environmental stress.

Use FindLight to compare datasheets, connector configurations, and optical performance across available Fiber Patch Cords, then contact manufacturers directly from the listing. You can request detailed quotations or custom variants without creating an account or undergoing registration, enabling rapid sourcing and evaluation for your next fiber-based system.
