Fiber Optic Transmitters and Receivers for Light Transport

Did You Know?

Fiber optic transmitters and receivers are the unsung heroes behind high-speed internet, telecom networks, and data centers. Transmitters convert electrical signals into light, while receivers do the reverse - enabling seamless, low-loss data transmission over long distances. These components are optimized for bandwidth, speed, and minimal signal degradation, supporting protocols like Ethernet, SONET, and Fibre Channel. Modern versions are compact, pluggable, and support real-time diagnostics. Whether you’re building a network backbone or integrating fiber optics into a custom system, choosing the right transmitter/receiver combo ensures clean, efficient, and lightning-fast communication.

Related Resources

Frequently Asked Questions

Optical transmitters convert electrical data signals into modulated optical signals that can be injected into fiber, while receivers perform the inverse conversion from light back to electrical form. In fiber optomechanics, these modules interface with connectors, adapters, and alignment hardware to couple light efficiently into and out of fibers. Typical applications include telecom/datacom links, fiber sensing systems, test and measurement setups, and laboratory interconnects.

Overview of Transmitters and Receivers

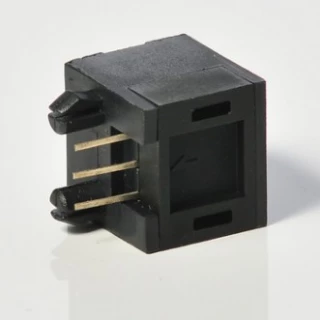

Fiber optic Transmitters and Receivers in the light transport domain convert electrical signals to optical signals and back again for point-to-point or networked links. A transmitter typically integrates a laser diode or LED with a driver, while the receiver combines a photodiode with a transimpedance amplifier and limiting stages. Together, these Transmitters and Receivers define the performance of your fiber link in terms of data rate, reach, and signal integrity.

Typical Specifications and Parameters

When sourcing Transmitters and Receivers on FindLight, engineers commonly evaluate:

  • Data rate: From low-Mb/s control links to multi-Gb/s telecom and instrumentation channels.
  • Wavelength: 650–850 nm for short-distance multimode, 1310 nm and 1550 nm for long-reach single-mode light transport.
  • Optical output power: Specified in dBm for transmitters; impacts link budget and maximum distance.
  • Receiver sensitivity: Minimum detectable power (dBm) at a given BER, often 10−9 or 10−12.
  • Fiber type and connector: Multimode vs single-mode, with FC/PC, SC, LC, or SMA-style terminations.
  • Modulation format: NRZ, analog intensity modulation, or more complex schemes for advanced systems.
  • Supply voltage and interface: Single 3.3 V or 5 V rails, differential or single-ended electrical I/O.
  • Packaging: Benchtop modules, OEM boards, or pigtailed butterfly packages for integration into instruments.

Use Cases

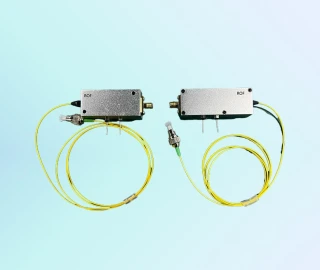

These Transmitters and Receivers support laboratory measurement links, remote sensor readout, RF-over-fiber, industrial controls, and telecom or datacom light transport. They are also used in test and measurement setups where low-jitter transmission over fiber is required to avoid ground loops, EMI, and distance limitations of copper.

Buyer Guidance on FindLight

On FindLight you can compare Transmitters and Receivers by data rate, wavelength, power budget, and package style to match your system design. Review detailed datasheets to verify compatibility with existing fiber infrastructure and connector types, and ensure the receiver sensitivity and transmitter power meet your link margin requirements. Once you identify suitable Transmitters and Receivers, you can request quotes directly from manufacturers or distributors. No registration is required to send inquiries, allowing rapid iteration during prototyping and procurement planning.
