Description
The light receiving unit is a standard-package product with connector and opto-electric component packaged with PD and I/V amplifier IC. The function of unit changes the light signal into electric signal.
The unit is operated at +5V and the input signal is TTL compatible. The DLR21E0 has a maximum operating speed of 25 Mbps.

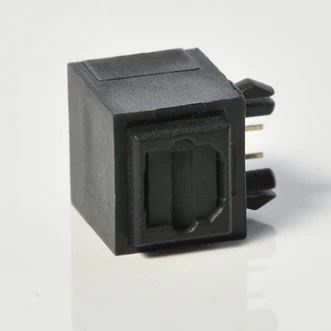

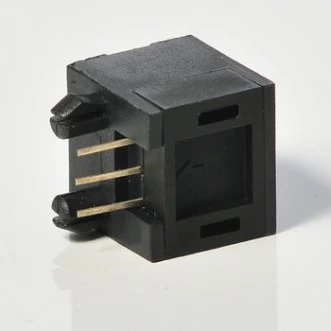

25Mbps optical audio Toslink spdif receiver module out DLR21E0
Bones Electronics Co., Ltd
Specifications
| Peak Emission Wavelength: | 700 nm |
|---|---|
| Transmission Speed: | 25 Mbps |
| Working Voltage: | 2.7~5.5 Volt |
| Typical Dissipation Current: | 2.5 mA |
| Max. Dissipation Current: | 10 mA |
| Fiber Coupling Light Output: | -24~-14.5 dBm |
Download Data Sheet
Features
· High speed signal transmission
( 25Mbps, NRZ signal )
· Input TTL compatible
· +3~+5V power source
Applications
· Audio equipment
· Digital optical data link
· MD
· Sound card
Frequently Asked Questions
What applications is the DLR21E0 suitable for?
The DLR21E0 is suitable for use in audio equipment, digital optical data links, MDs, and sound cards.
What is the DLR21E0?
The DLR21E0 is a light receiving unit that converts light signals into electric signals.
What is the input signal compatibility of the DLR21E0?
The input signal of the DLR21E0 is TTL compatible.
What is the maximum operating speed of the DLR21E0?
The DLR21E0 has a maximum operating speed of 25 Mbps.
What is the power source requirement for the DLR21E0?
The DLR21E0 is operated at +5V.
