Fiber Probes

Our new designed IR fiber ATR probes with PEEK shaft are cost effective and perfect for use in small lab reactors and open vessels. IR-spectrometers, photometers and sensors.

Specifications

Transmission: 3.2-17um
Temperature Range: -100-140C
Fiber Type: PIR-900/1000
Pressure (max): 7 Bar
Total Length: 1,5 m (opt: 1 to 5m)
...
Data Sheet
Our new designed IR fiber ATR probes with PEEK shaft are cost effective and perfect for use in small lab reactors and open vessels. IR-spectrometers, photometers and sensors.

Specifications

Transmission: 3.2-17um
Temperature Range: -100-140C
Fiber Type: PIR-900/1000
Pressure (max): 7 Bar
Total Length: 1,5 m (opt: 1 to 5m)
...
Data Sheet

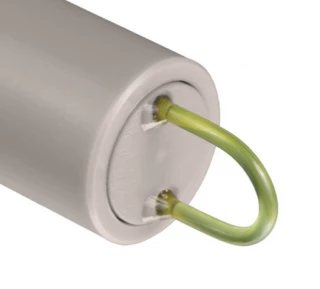

The Fiber Optic ATR Loop Probe from art photonics is a versatile and cost-effective solution for on-line absorbance spectroscopy of liquids, pastes, and soft solid surfaces in the Mid InfraRed range. Designed for compatibility with FTIR, QCL, and IR-Filter spectrometers, this probe offers high throughput and is a cost-effective ...

Specifications

Transmission: 6.5-17um
Temperature Range: 0-90C
Total Length: 1
Shaft Length: 120
Shaft Diameter: 10
...
Data Sheet
The Fiber Optic ATR-Probes from art photonics are high-performance probes designed for a broad spectral range, including UV-Vis-NIR and Mid-IR. These probes offer high throughput, no dead zone, and robustness suitable for industrial applications in harsh environments. Compatible with various spectrometers and automated process ...

Specifications

Transmission: 1.1-18um
Temperature Range: -150-140C
Pressure (max): 200Bar, 300Bar on request
Compatibility: FT-NIR, FT-IR, and other IR-spectrometers, photometers, IR-LED, or QCL
Design: Patented design for ATR immersion fiber optic probes
...
Data Sheet
he Fiber Optic ATR Probe from art photonics is specifically designed for lab applications, offering a cost-effective solution for in-line reaction monitoring in small lab reactors and open vessels. These probes, featuring a PEEK shaft, are compatible with various FT-IR and other IR-spectrometers and sensors. With optimal ATR crystal ...

Specifications

Transmission: 1.1-3100um
Temperature Range: -100-90C
Fiber Type: CIR-500/550
Pressure (max): 7 bar
Total Length: 1,5 m (opt: 1 to 5m)
...
Data Sheet

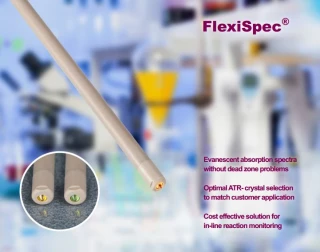

FlexiSpec® probes design enables their use for reaction monitoring with no artifacts caused by optics contamination as they can be retracted, cleaned and calibrated during chemical process. Process-interfaces SensoGate-FOS and Ceramat-FOS made by KNICK with approved fitting & flanges for FlexiSpec® probes to secure their semi or ...

Specifications

Transmission: 3.5-18um
Temperature Range: -50-140C
Data Sheet

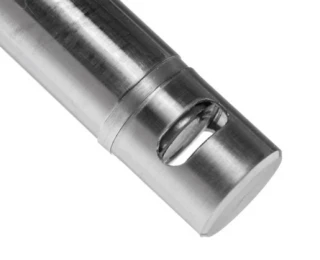

FlexiSpec® product line includes the latest generation of Transmission (single pass) & TransFlex (dual pass) fiber optic probes to be used with any spectrometer or photometer.  FlexiSpec® Single & Dual Pass fiber optic probes are compatible with process-interfaces to be cleanable and to enable reaction monitoring in ...

Specifications

Transmission: 1.6-5.5um
Temperature Range: -100-100C
Fiber Type: CIR
Gap Dimension: 0.05 – 2.0 mm
Minimum Bending Radius: 130 mm
...
Data Sheet

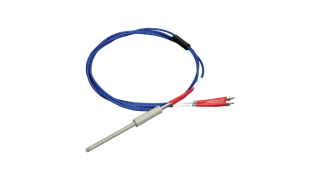

FlexiSpec® product line includes the latest generation of Transmission (single pass) & TransFlex (dual pass) fiber optic probes to be used with any spectrometer or photometer. FlexiSpec® Single & Dual Pass fiber optic probes are compatible with process-interfaces to be cleanable and to enable reaction monitoring in lab, ...

Specifications

Transmission: 0.4-2.2um
Temperature Range: 0-200C
Fiber Type: Silica UV-NIR
Gap Dimension: 2, 5 and 10 mm
Minimum Bending Radius: 120 mm
...
Data Sheet
Sterilizable ATR Fiber Probe is a new product of art photonics’ FlexiSpec® product line. This ATR Probes are produced with any type of ATR element and for any type of FTIR spectrometers. Unique Shaft-in-Shaft design enables use of FlexiSpec® ATR Probe in Bio process where sterilization is required without having to forgo the ...

Specifications

Transmission: 1.5-6.5um
Temperature Range: -100-200C
Fiber Type: CIR 500/550 Chalcogenide glass (As-S)
Pressure (max): 100 Bar
Total Length: 1.5 m
...
Data Sheet

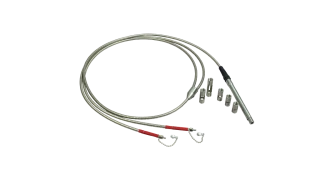

FlexiSpec® product line includes the latest generation of Transmission (single pass) & TransFlex (dual pass) fiber optic probes to be used with any spectrometer or photometer. FlexiSpec® Single & Dual Pass fiber optic probes are compatible with process-interfaces to be cleanable and to enable reaction monitoring in lab, ...

Specifications

Transmission: 0.4-2.2um
Temperature Range: 0-200C
Fiber Type: Silica UV-NIR
Gap Dimension: 2, 5, and 10 mm
Minimum Bending Radius: 120 mm
...
Data Sheet
FlexiSpec® product line includes the latest generation of Transmission (single pass) & TransFlex (dual pass) fiber optic probes to be used with any spectrometer or photometer. FlexiSpec® Single & Dual Pass fiber optic probes are compatible with process-interfaces to be cleanable and to enable reaction monitoring in lab, ...

Specifications

Transmission: 0.2-1.3um
Temperature Range: 0-200C
Fiber Type: Silica UV-Vis
Gap Dimension: 2, 5, 10, and 20 mm
Minimum Bending Radius: 120 mm
...
Data Sheet
FlexiSpec® probes from art photonics include new type of Attenuated Total Reflection (ATR-) probes designed for harsh application conditions. HT-ATR immersion IR-fiber probes can be used for process-spectroscopy in Near & Mid IR range to monitor reactions in-line in a broad temperature range from -100° to +250°C. They can ...

Specifications

Transmission: 1.5-6.5um
Temperature Range: -100-200C
Pressure (max): 100 Bar
Total Length: 1.5 m
Shaft Length: 300 mm
...
Data Sheet

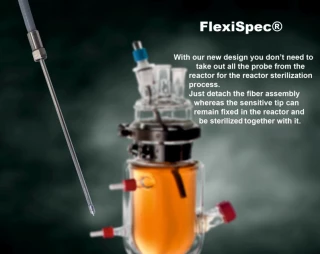

Sterilizable ATR Fiber Probe is a new product of art photonics’ FlexiSpec® product line. This ATR Probes are produced with any type of ATR element and for any type of FTIR spectrometers. Unique Shaft-in-Shaft design enables use of FlexiSpec® ATR Probe in Bio process where sterilization is required without having to forgo the ...

Specifications

Transmission: 5.2-17um
Temperature Range: -100-140C
Fiber Type: PIR-900/1000 Silver Halide
Pressure (max): 200 Bar
Total Length: 1.5 m
...
Data Sheet
Sterilizable ATR Fiber Probe is a new product of art photonics’ FlexiSpec® product line. This ATR Probes are produced with any type of ATR element and for any type of FTIR spectrometers. Unique Shaft-in-Shaft design enables use of FlexiSpec® ATR Probe in Bio process where sterilization is required without having to forgo the ...

Specifications

Transmission: 5.2-17um
Temperature Range: -100-250C
Fiber Type: PIR-900/1000 Silver Halide
Pressure (max): 100 Bar
Total Length: 1.5 m
...
Data Sheet
This is a Fiber Optic ATR-Probe designed specifically for harsh environments art photonics\' FlexiSpec® probe assemblies include new type of Attenuated Total Reflection (ATR-) probes designed for harsh application conditions. HT-ATR immersion IR-fiber probes can be used for process-spectroscopy in near-IR & mid-IR range ...

Specifications

Transmission: 5.2-17um
Temperature Range: -100-250C
Cooling Air Flow Parameters: Excess pressure 0.5Bar, Flow 2300l/h
Shaft Length: 300 mm
Shaft Material: Hastelloy C22
...
Data Sheet
FlexiSpec® product line from art photonics presents the latest generation of Attenuated Total Reflection Probes. Fiber optic ATR-Probes are produced for any spectral range in UV -Vis -NIR and Mid-IR.  They are compartible with any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL. ATR immersion ...

Specifications

Transmission: 1.1-6.5um
Temperature Range: -150-90C
ATR Tip Material: Cubic Zirconia (opt. see datasheet)
Spectral Range: 9000-1550 cm-1 (opt.: 400-2200 nm)
Shaft Material: Hastelloy C22
...
Data Sheet
FlexiSpec® product line from art photonics presents the latest generation of Attenuated Total Reflection Probes. Fiber optic ATR-Probes are produced for any spectral range in UV -Vis -NIR and Mid-IR.  They are compartible with any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL. ATR immersion ...

Specifications

Transmission: 3.2-17um
Temperature Range: -150-140C
ATR Tip Material: Silicon (opt. see datasheet)
Spectral Range: 3100 - 600 cm-1
Shaft Material: Hastelloy C22
...
Data Sheet
FlexiSpec® product line from art photonics presents the latest generation of Attenuated Total Reflection Probes. Fiber optic ATR-Probes are produced for any spectral range in UV -Vis -NIR and Mid-IR.  They are compartible with any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL. ATR ...

Specifications

Transmission: 3.2-17um
Temperature Range: -150-90C
ATR Tip Material: Germanium (opt. see datasheet)
Spectral Range: 3100 - 600 cm-1
Shaft Material: Hastelloy C22
...
Data Sheet

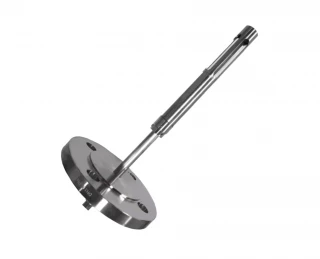

Gas Transmission Infrared Fiber Optic Probe for Gases   On-line transmission spectroscopy in gases High throughput in any part of NIR-MIR spectra Flexible and robust for industrial applications Compatible with any spectrometer   FlexiSpec® product line includes the latest generation of Transmission ...

Specifications

Transmission: 3-18um
Temperature Range: -50-140C
Sensitivity: >1ppm depending on optical path, spectrometer performance, gases in test
Data Sheet
Gas Transmission Infrared Fiber Optic Probe for Gases   On-line transmission spectroscopy in gases High throughput in any part of NIR-MIR spectra Flexible and robust for industrial applications Compatible with any spectrometer   FlexiSpec® product line includes the latest generation of Transmission ...

Specifications

Transmission: 0.5-2.2um
Temperature Range: -50-200C
Sensitivity: >1ppm depending on optical path, spectrometer performance, gases in test
Data Sheet
This is a Gas Transmission Infrared Fiber Optic Probe for Gases by art photonics GmbH   Our FlexiSpec® product line includes the latest generation of Transmission infrared fiber optic probes for gases to be used with any spectrometer or photometer.    The design of Transmission Fiber Probe for gases is based on ...

Specifications

Transmission: 1.6-5.5um
Temperature Range: -50-90C
Sensitivity: >1ppm depending on optical path, spectrometer performance, gases in test
Data Sheet

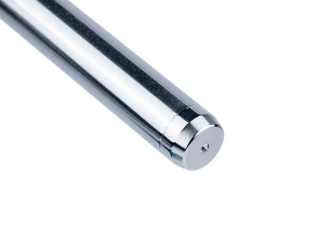

The Fiber Optic ATR-Probes for Harsh Environment from art photonics are specifically designed for process-spectroscopy in the Near & Mid IR range, enabling in-line monitoring of reactions in industrial applications. These probes offer high throughput in selected parts of the Near & Mid InfraRed spectra and are robust enough ...

Specifications

Transmission: 3.2-17um
Temperature Range: -100-250C
Fiber Type: PIR-900/1000
Pressure (max): 100 Bar
Total Length: 1,5 m
...
Data Sheet

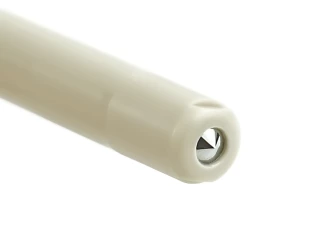

The Fiber Optic ATR-Probes for Lab Applications from art photonics are designed to provide accurate and cost-effective solutions for in-line reaction monitoring in small lab reactors and open vessels. These probes feature evanescent absorption spectra without dead zone problems, ensuring reliable and precise measurements. With ...

Specifications

Transmission: 3.2-17um
Temperature Range: -100-140C
Fiber Type: PIR-900/1000
Pressure (max): 7 Bar
Total Length: 1,5 m (opt: 1 to 5m)
...
Data Sheet
ATR-Loop Infrared PIR-fiber probe was the first in FlexiSpec® product line designed for use with FTIR and other Mid IR spectrometers. ATR-Loop PIR-fiber probes are perfect for remote analysis of composition of liquids, pastes and soft surfaces with no need in sample preparation.

Specifications

Transmission: 3.03-16.6um
Temperature Range: 0-100C
Total Length: 1
Shaft Length: 120
Shaft Diameter: 10
Data Sheet
Dip Probes 400um
Spectraconn Inc

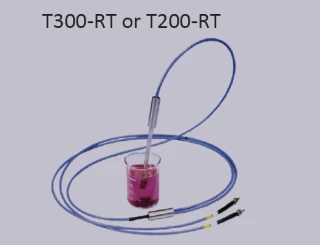

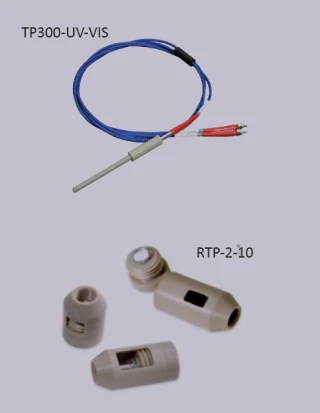

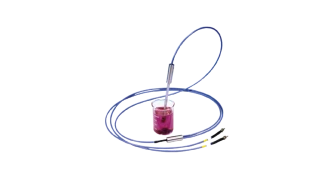

Commonly referred to as a Dip Probe or Transmission Probe and used for liquids spectroscopy. These assemblies contain two fibers using a lens to collimate the light from one fiber through an open section, through which a liquid can pass. The light is then reflected off of the mirror and passes through the liquid and lens a second ...

Specifications

Transmission: 200-600um
Temperature Range: 1-100C
Data Sheet

Frequently Asked Questions

A Fiber optic probe is an an optomechanical component that attaches to an optical fiber to allow probing and analyzing various samples, or monitoring real-time kinetic reactions, sampling in vivo, and any other application where it is difficult to bring the sample to the analyzing device such as a spectrometer.

Fiber probes have a wide range of applications, including in optical spectroscopy, sensing, and in-vivo imaging of biological organisms (including humans). They can be used to measure the reflectivity, absorption, and scattering properties of various materials, as well as to monitor chemical reactions and biological processes in real time.

The choice of fiber probe depends on several factors, including the type of measurement, the wavelength of light, the numerical aperture of the fiber, and the size and shape of the sample. It is important to consult with a fiber-optic expert to determine the best probe for your specific application. Please use the "Contact Supplier" button located on every product page to contact an expert with your questions.

Fiber probes offer several advantages over traditional optical measurement techniques, including high sensitivity, real-time measurements, and non-destructive testing. They are also compact, lightweight, and easy to use, making them ideal for portable and remote sensing applications.

Proper maintenance and cleaning of fiber probes is essential for accurate and reliable measurements. It is important to handle the probes with care, and to avoid touching the fiber tip with fingers or other objects. Cleaning can be done using specialized solvents or ultrasonic baths, but it is important to follow the manufacturer's instructions to avoid damaging the fiber.

The price of a fiber probe depends on many factors, including the type of probe, the quality of the optical fiber, and the level of customization required. Please use the "Inquire Price" button located on every product page to inquire the price of that specific product.

There are 29 different Fiber Probes from suppliers and manufacturers listed in this category. In just a few clicks you can compare different Fiber Probes with each other and get an accurate quote based on your needs and specifications. Please note that the prices of Fiber Probes vary significantly for different products based on various factors including technical parameters, features, brand name, etc. Please contact suppliers directly to inquire about the details and accurate pricing information for any product model. Simply navigate to the product page of interest and use the orange button to directly reach out to the respective supplier with one click.

Did You know?

Fiber probes are a an optomechanical component that attach to an optical fiber to allow probing and analyzing various samples, or monitoring real-time kinetic reactions, sampling in vivo, and any other application where it is difficult to bring the sample to the analyzing device such as a spectrometer. They are widely used in a range of applications, including sensing, spectroscopy, and imaging of biological organisms. A fiber probe typically consists of a tapered single-mode or multimode optical fiber, which is designed to efficiently couple light into and out of the fiber. The probe may also include specialized lenses or apertures to focus or direct the light. Fiber probes offer several advantages over traditional optical measurement techniques, including high sensitivity, real-time measurements, and non-destructive testing. They are also compact, lightweight, and easy to use, making them ideal for portable and remote sensing applications. Choosing the right fiber probe for a specific application requires careful consideration of several factors, including the type of measurement, the wavelength of light, the numerical aperture of the fiber, and the size and shape of the sample. Proper maintenance and cleaning of fiber probes is also essential to ensure accurate and reliable measurements. Check out the selection of Fiber Probes in this category and contact the experts with your questions from the individual product pages.
