Fiber Optic TransFlex Probe (Silica UV-Vis)
Description
Fiber Optic TransFlex Probe (Silica UV-Vis)

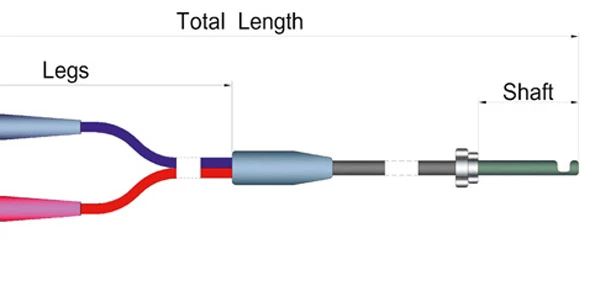

Specifications |
|
|---|---|
| Transmission: | 0.2-1.3um |
| Temperature Range: | 0-200C |
| Fiber Type: | Silica UV-Vis |
| Gap Dimension: | 2, 5, 10, and 20 mm |
| Minimum Bending Radius: | 120 mm |
| Total Length: | 1.5 m |
| Shaft Length: | 230 mm |
| Shaft Diameter: | 12 mm |
Applications
- Reaction Monitoring in real time
- Process Analytical Technologies (PAT)
- Crystallization Development & Screening
- Analytical Characterization
- Biopharmaceutical Analysis
- Biofuel Development & Production
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The FlexiSpec® product line includes the latest generation of Transmission (single pass) & TransFlex (dual pass) fiber optic probes to be used with any spectrometer or photometer.
The applications of the FlexiSpec® Single & Dual Pass fiber optic probes are Reaction Monitoring in real time, Process Analytical Technologies (PAT), Crystallization Development & Screening, Analytical Characterization, Biopharmaceutical Analysis, and Biofuel Development & Production.

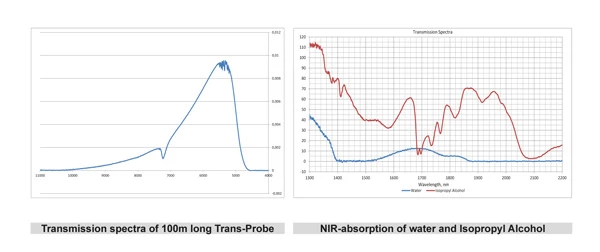

The transmission range of the FlexiSpec® Transmission and Transflection Probes are 0.2 - 1.3 µm, 0.4 - 2.2 µm, and 1.6 - 5.5 µm.
The temperature range of the FlexiSpec® Transmission and Transflection Probes is ≤ 200°C.
The input/output connectors of the FlexiSpec® Transmission and Transflection Probes are Long SMA, FC/PC, and ST.
