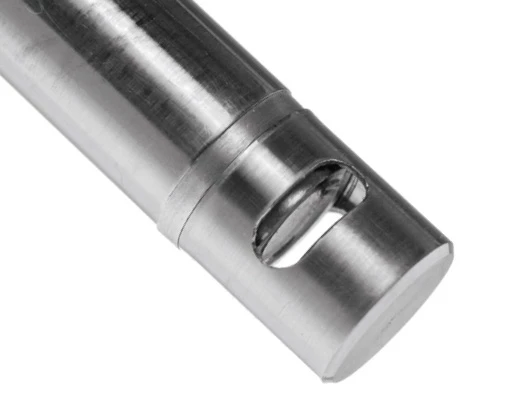

Fiber Optic TransFlex Probe (CIR)
Art photonics GmbH
OVERVIEW
FlexiSpec® product line includes the latest generation of Transmission (single pass) & TransFlex (dual pass) fi ber optic probes to be used with any spectrometer or photometer. FlexiSpec® Single & Dual Pass fiber optic probes are compatible with process-interfaces to be cleanable and to enable reaction monitoring in lab, pilot plant and run full automated process control.
* On-line transmission spectroscopy in liquids at long distance
* High throughput in any part of UV –Vis to Mid Infrared spectra
* Flexible and robust for industrial applications in harsh environment
* Compatible with all spectrometers and automated process-interfaces
SPECIFICATION

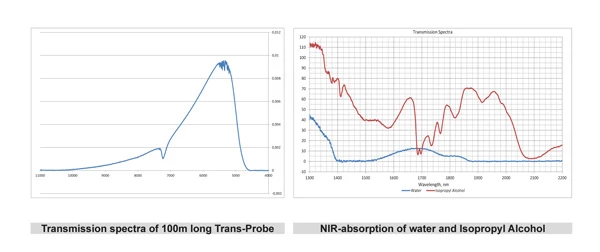

- Transmission: 1.6 - 5.5 um
- Temperature Range: -100 - 100 C

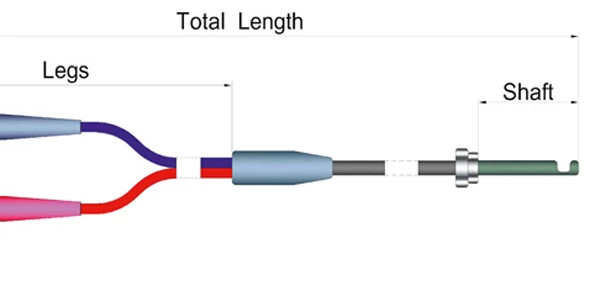

- Total Length: 1.5 m
- Shaft Length: 230 mm
- Shaft Diameter: 12 mm
- Fiber Type: CIR
- Gap Dimension: 0.05 – 2.0 mm
- Minimum Bending Radius: 130 mm
Applications
* Reaction Monitoring in real time
* Process Analytical Technologies (PAT)
* Crystallization Development & Screening
* Analytical Characterization
* Biopharmaceutical Analysis
* Biofuel Development & Production
