FILTER PRODUCTS

to
to
to
to
to
to
OSG10 And OSG20 Programmable Filters
INLC Technology Inc
OSG10 and OSG20 programmable optical filters are versatile test instruments that can be controlled by a PC via an intuitive user interface to create arbitrary filter shapes.
  • Operating Wavelength Range: 1527 - 1565 nm
  • Free Spectral Range: 191 GHz
  • Finesse: --
  • Bandwidth: 12.5-4800 GHz
  • Insertion Loss: 3.5-4.5 dB
  • ...
Data Sheet
OSG30 1×2-2×1 Programmable Optical Filters
INLC Technology Inc
OSG30 1×2/2×1 programmable optical filters offer the functionality of interleaver configurations and other switching configurations with very high port isolation. OSG30 filters are controlled by a PC via an intuitive user interface.
  • Operating Wavelength Range: 1527 - 1565 nm
  • Free Spectral Range: 196 GHz
  • Finesse: --
  • Bandwidth: 12.5-4800 GHz
  • Insertion Loss: 6.5-7.0 dB
  • ...
Data Sheet
OSG12 High-Resolution Programmable Filter
INLC Technology Inc
OSG12 High-Resolution Programmable Filters allow the user to create arbitrary filter shapes with control over amplitude/ power level, and center frequency in spectrum slices as narrow as 6.25 GHz. The OSG12 can be controlled by a PC via an intuitive, menu-driven interface to facilitate testing, measurement, and optical characterization.
  • Operating Wavelength Range: 1527 - 1565 nm
  • Free Spectral Range: 196 GHz
  • Finesse: --
  • Bandwidth: 4800 GHz
  • Insertion Loss: 4.5 dB
  • ...
Data Sheet

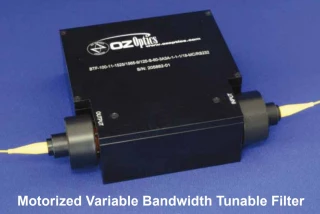

Motorized adjustable variable bandwidth tunable filters are pigtailed components with built-in control electronics that allow both the wavelength and bandwidth of the filter to be controlled through an electrical interface. The device contains two independently variable tunable bandpass filters in series. With the two filters ...
  • Operating Wavelength Range: 1525 - 1565 nm
  • Free Spectral Range: -- GHz
  • Finesse: --
  • Bandwidth: 0.002 GHz
  • Insertion Loss: 3 dB
  • ...
Data Sheet
The key to the simple and elegant design of the Inline Fabry-Perot tunable filter is the lensless all fiber construction. There are no collimating optics or lenses, thus the Inline Fabry-Perot tunable filter has eliminated the pitfalls of other Fabry-Perot component technologies, including misalignment, environmental sensitivity, and ...
  • Operating Wavelength Range: 1520 - 1570 nm
  • Free Spectral Range: 15000 GHz
  • Finesse: 500
  • Bandwidth: 30 GHz
  • Insertion Loss: 2.5 dB
  • ...
Data Sheet
The manually adjustable variable bandwidth tunable filter is a pigtailed component with adjustment knobs that allow both the wavelength and bandwidth of the filter to be controlled. The device contains two independently variable tunable bandpass filters in series. With the two filters tuned to cover slightly different ...
  • Operating Wavelength Range: 1550 - 1600 nm
  • Free Spectral Range: -- GHz
  • Finesse: --
  • Bandwidth: 18 GHz
  • Insertion Loss: 3 dB
  • ...
Data Sheet
The manually adjustable variable bandwidth tunable filter is a pigtailed component with adjustment knobs that allow both the wavelength and bandwidth of the filter to be controlled. The device contains two independently variable tunable bandpass filters in series. With the two filters tuned to cover slightly different ...
  • Operating Wavelength Range: 1525 - 1570 nm
  • Free Spectral Range: -- GHz
  • Finesse: --
  • Bandwidth: 18 GHz
  • Insertion Loss: 3 dB
  • ...
Data Sheet

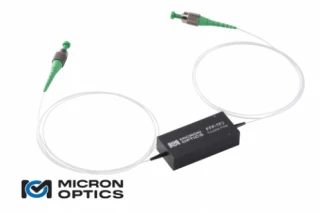

Micron Optics’ patented FFP-TF2, Fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter ...
  • Operating Wavelength Range: 1,460 - 1,620 nm
  • Free Spectral Range: 27,500 GHz
  • Finesse: 10,000
  • Bandwidth: 2.8 GHz
  • Insertion Loss: 4.0 dB
  • ...
Data Sheet
Micron Optics’ patented FFP-TF2, Fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter ...
  • Operating Wavelength Range: 1,460 - 1,620 nm
  • Free Spectral Range: 27,500 GHz
  • Finesse: 2,000
  • Bandwidth: 13.8 GHz
  • Insertion Loss: 3.0 dB
  • ...
Data Sheet
Micron Optics’ patented FFP-TF2, Fiber Fabry-Perot (FFP) Tunable FilterFFP-TF2, Fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics ...
  • Operating Wavelength Range: 1,520 - 1,570 nm
  • Free Spectral Range: 15,000 GHz
  • Finesse: 2,000
  • Bandwidth: 7.5 GHz
  • Insertion Loss: 3.0 dB
  • ...
Data Sheet
Micron Optics’ patented FFP-TF2, Fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter ...
  • Operating Wavelength Range: 1,520 - 1,570 nm
  • Free Spectral Range: 15,000 GHz
  • Finesse: 1,000
  • Bandwidth: 15 GHz
  • Insertion Loss: 3.0 dB
  • ...
Data Sheet
Micron Optics’ patented FFP-TF2, Fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter ...
  • Operating Wavelength Range: 1,520 - 1,570 nm
  • Free Spectral Range: 15,000 GHz
  • Finesse: 500
  • Bandwidth: 30 GHz
  • Insertion Loss: 2.5 dB
  • ...
Data Sheet

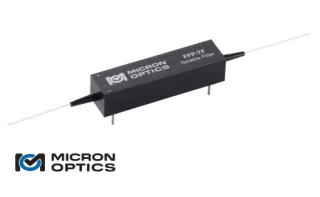

Micron Optics’ patented FFP-TF, fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter Micron Optics ...
  • Operating Wavelength Range: 1460 - 1620 nm
  • Free Spectral Range: 27,500 GHz
  • Finesse: 2,000
  • Bandwidth: 13.8 GHz
  • Insertion Loss: 3.0 dB
  • ...
Data Sheet
Micron Optics’ patented FFP-TF, fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter Micron Optics ...
  • Operating Wavelength Range: 1,520 - 1,570 nm
  • Free Spectral Range: 15,000 GHz
  • Finesse: 2,000
  • Bandwidth: 7.5 GHz
  • Insertion Loss: 3.0 dB
  • ...
Data Sheet
Micron Optics’ patented FFP-TF, fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter Micron Optics ...
  • Operating Wavelength Range: 1,520 - 1,570 nm
  • Free Spectral Range: 15,000 GHz
  • Finesse: 1,000
  • Bandwidth: 15 GHz
  • Insertion Loss: 3.0 dB
  • ...
Data Sheet
Micron Optics’ patented FFP-TF, fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter ...
  • Operating Wavelength Range: 1,520 - 1,570 nm
  • Free Spectral Range: 12,500 GHz
  • Finesse: 650
  • Bandwidth: 19 GHz
  • Insertion Loss: 2.5 dB
  • ...
Data Sheet
Micron Optics’ patented FFP-TF, fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter ...
  • Operating Wavelength Range: 1,460 - 1,620 nm
  • Free Spectral Range: 27,500 GHz
  • Finesse: 10,000
  • Bandwidth: 2.8 GHz
  • Insertion Loss: 4 dB
  • ...
Data Sheet
