What Are Fiber Adapters?
Fiber Adapters are passive optomechanical components that mechanically and optically couple two fiber connectors or a fiber to a device interface. In light transport applications, Fiber Adapters ensure stable alignment of fiber cores, low insertion loss, and repeatable connections between instruments, patch cords, and fiber pigtails.

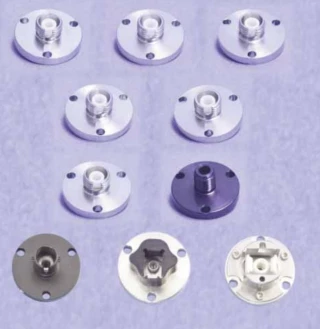

Typical Fiber Adapters on FindLight include simplex and duplex styles for common connector formats such as FC/PC, FC/APC, SMA, SC, and LC. Depending on design, they may support single-mode, multimode, or polarization-maintaining (PM) fibers used in test setups, laser delivery lines, and sensing systems.
Typical Specifications and Features
When evaluating Fiber Adapters, engineers usually consider:

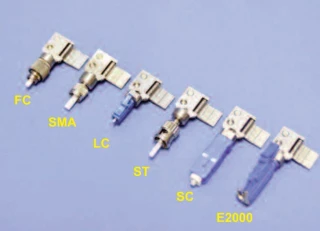

- Connector style: FC, SMA, SC, LC, ST and hybrid combinations (e.g., FC–SMA) for cross-standard coupling.
- Ferrule diameter and bore: Common sizes such as 2.5 mm or 1.25 mm, with bore tolerances chosen for single-mode, multimode, or PM fibers.
- Polish type: PC, UPC, or APC, affecting return loss and suitability for high-power or interferometric systems.
- Alignment mechanism: Keyed or threaded Fiber Adapters that control rotational and axial positioning, critical for PM and high-NA fibers.
- Material and finish: Stainless steel or precision-machined alloys for mechanical stability, thermal robustness, and low outgassing.
Key performance parameters include insertion loss, return loss, repeatability under connect/disconnect cycles, and allowable optical power for high-intensity light transport.
Use Cases in Light Transport
Fiber Adapters are used to link laser sources to delivery fibers, connect diagnostic instruments to patch panels, and interface fiber-based sensors to interrogation units. They are common in laboratory optical benches, telecom test racks, industrial laser delivery systems, and spectroscopy setups where controlled light transport is required.
Buyer Guidance on FindLight
On FindLight, you can compare Fiber Adapters by connector standard, polish type, supported fiber class (single-mode, multimode, PM), material, and mechanical form factor. For precision applications, verify that the adapter supports your connector keying scheme, core size, and required return loss. For high-power light transport, check power-handling guidance from each supplier.
Once you have narrowed down suitable Fiber Adapters, you can request quotes directly from multiple manufacturers and distributors. No registration is required to contact vendors, enabling fast comparison of technical data, pricing, and lead times for your project.
