Precision Fiber Optic Gyroscopes for Navigation

Did You Know?

Fiber optic gyroscopes (FOGs) detect rotation using nothing but light - no moving parts required. Based on the Sagnac effect, they measure angular velocity by detecting phase shifts between counter-propagating light beams in a fiber coil. FOGs are compact, rugged, and immune to electromagnetic interference, making them ideal for aerospace, robotics, marine navigation, and autonomous vehicles. Compared to traditional gyros, they offer higher reliability, lower drift, and better performance under shock and vibration. You’ll even find them in spacecraft, missiles, and drones. If you're building systems that rely on precise orientation or inertial navigation, FOGs are the modern, maintenance-free solution.

Frequently Asked Questions

A fiber optic gyroscope (FOG) is an angular rate sensor that uses the Sagnac effect in a coil of optical fiber to measure rotation. A polarized light source is split into two counter‑propagating beams that travel through the fiber coil; rotation causes a phase shift between the beams, which is converted into an electrical signal proportional to the rotation rate.

Overview of Fiber Optic Gyroscopes

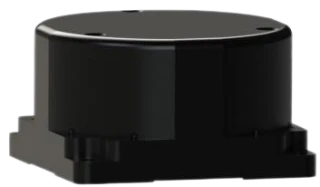

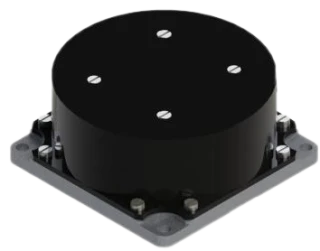

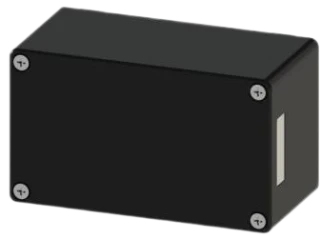

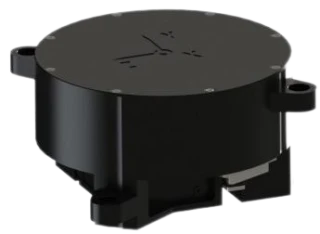

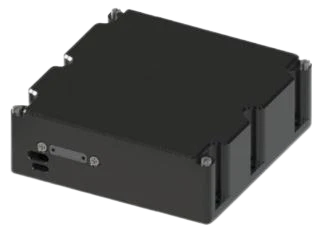

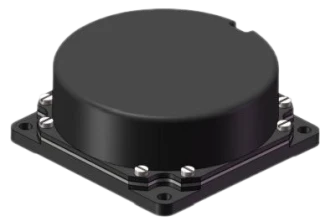

Fiber Optic Gyroscopes (FOGs) are rotation sensors that use the Sagnac effect in a coil of optical fiber to measure angular rate. They rely on interferometric detection of phase shifts between counter‑propagating light beams, providing solid‑state, low‑drift alternatives to mechanical gyros. On FindLight, Fiber Optic Gyroscopes span compact single‑axis units to multi‑axis inertial assemblies suitable for integration into advanced navigation and stabilization systems.

Typical Specifications and Architectures

When evaluating Fiber Optic Gyroscopes, engineers typically compare operating bandwidth, dynamic range, and bias stability. Key parameters include:

  • Input rate range: from ±100 °/s up to ±1,000 °/s or higher, depending on coil length and design.
  • Bias stability: often from a few °/h down to <0.01 °/h for higher grade Fiber Optic Gyroscopes.
  • Angle random walk (ARW): commonly 0.01–0.1 °/√h for tactical and navigation grade units.
  • Bandwidth: typically 100–500 Hz, optimized for control loop requirements.
  • Scale factor nonlinearity: expressed in ppm, critical for precise inertial measurements.
  • Environmental ratings: operating temperature range, vibration resistance, and shock survivability.
  • Interfaces: analog voltage output or digital protocols such as RS‑422, CAN, or SPI.

Many Fiber Optic Gyroscopes integrate depolarized fiber coils, superluminescent diodes or low‑coherence laser sources, integrated optics modulators, and closed‑loop digital signal processing to enhance stability and linearity.

Use Cases and Application Domains

Fiber Optic Gyroscopes are widely used in inertial navigation systems for UAVs, aircraft, ground vehicles, marine platforms, and guided systems. They also support gimbal and antenna stabilization, robotics, drilling tools, and surveying instruments where low noise and high reliability are required. Selection of specific Fiber Optic Gyroscopes depends on accuracy class, environmental constraints, and allowable size, weight, and power.

Buyer Guidance on FindLight

To identify suitable Fiber Optic Gyroscopes, start by defining your required rate range, bias stability, ARW, and bandwidth, then compare coil size, power consumption, and interface options. Review datasheets for thermal behavior, warm‑up time, and long‑term bias drift to ensure compatibility with your inertial navigation or stabilization architecture.

On FindLight you can browse multiple Fiber Optic Gyroscopes from specialized suppliers, compare technical specifications side by side, and request quotes directly from manufacturers. No registration is required to send inquiries, enabling rapid sourcing and technical clarification during early design and procurement stages.
