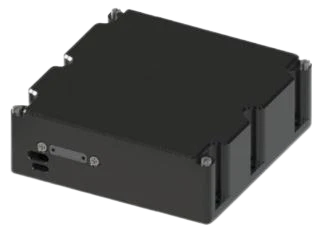

AK-3090 Sub-Arcminute Precision 3-Axis Fiber Optic Gyroscope

Specifications

Angular Rate: -300 – 300 deg/sec
Turn-on Time: ≤5 S
Dynamic Range: -300~+300 /s
Bias Stability(100s, Smooth, 1σ): ≤0.005 °/h
Bias Stability Over Full Temperature Range(100s, Smooth, 1σ): ≤0.015 °/h
Scale Factor Non Linearity: ≤10 ppm
Scale Factor Asymmetry: ≤5 ppm
Scale Factor Repeatability: ≤15 ppm
Random Walk Coefficient: ≤0.001 / √h
Threshold: ≤0.01 °/h
Bandwidth: 5±0.25 V
Power Consumption: ≤10 W
Dimensions: mm Fiber Coil φ92×21 Control Box 96×96×32
Document icon Download Data Sheet Download icon

Applications


  • Aerospace

  • Aviation

  • Maritime navigation

  • Deep-sea exploration

  • Underground mining

  • Vehicle control systems
