AF-3140 Navigation Grade Three-Axis Ultra-Low Random Walk FOG
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2025
Description
Aoshi Control – Leader in Fiber Optic Gyroscopes (FOG) and Inertial Navigation Systems (INS)
Aoshi Control specializes in the research, development, production, and sales of advanced navigation and sensing technologies, including fiber optic gyroscopes (FOG), inertial navigation systems (INS), special optical fibers, precision fiber coils, and Y-waveguide components.
Through years of innovation, we have developed a complete portfolio of high-, medium-, and low-precision FOG series as well as north-seeking systems.
Backed by a top-tier reputation in the global FOG and INS market, Aoshi Control continues to push technological boundaries. Looking ahead, we are focused on expanding market reach, broadening application fields, and developing ultra-high-precision FOGs. Our long-term vision includes establishing China’s largest production line for inertial products and optoelectronic devices, with a targeted annual capacity of 100,000–300,000 FOG axes.

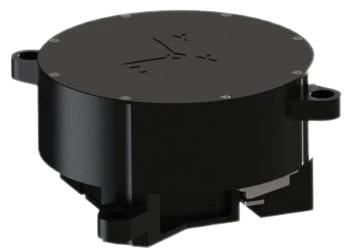

AF-3140 Navigation Grade Three-Axis Ultra-Low Random Walk FOG
Specifications |
|
|---|---|
| Angular Rate: | -300 – 300 deg/sec |
| Scale Factor Asymmetry: | ≤100 ppm |
| Dimensions: | φ144×70 mm |
| Power Consumption: | ≤10 W |
| Power Supply: | ±5 V |
| Operating Temperature: | -40～+60 ℃ |
| Random Walk Coefficient: | ≤0.0003 °/ √h |
| Cross Coupling: | -5～+5 ′ |
| Threshold: | ≤0.3 °/h |
| Resolution: | ≤0.3 °/h |
| Dynamic Range: | -300～+300 °/s |
| Scale Factor Non Linearity: | ≤100 ppm |
| Scale Factor Repeatability: | ≤100 ppm |
| Scale Factor: | ≥10000000 LSB/(/s) |
| Bias Repeatability(10s, Smooth, 1σ): | ≤0.25 /h |
| Bias Stability(10s, Smooth, 1σ): | ≤0.25 °/h |
| Bias: | -2～+2 °/h |
| Turn-on Time: | ≤5 S |
Applications
Our products are recognized for their superior accuracy, reliability, and cost-effectiveness, making them indispensable across industries such as:
- Aerospace & Aviation – flight control, navigation, and satellite systems
- Maritime Navigation & Deep-Sea Exploration – ship guidance, subsea positioning, and offshore operations
- Underground Mining & Tunneling – orientation and heading control in GPS-denied environments
- Vehicle Control & Autonomous Systems – precision navigation for robotics, defense, and transportation
