Beam Splitters and Combiners for Fiber Optics

Did You Know?

Like cube beam splitters, fiber beam splitters are passive optical components that take one input beam and split it into 2 separate beams, a reflected beam, and a transmitted beam that are each sent into a different fiber channel. A fiber beam splitter can be made of 2 inputs and 2 outputs, or 1 input and 2 outputs. These devices are generally characterized by their splitting ratio which provides information on the amount of light that comes out of each output port. Typically, fiber beam splitters are designed to have a 50/50 splitting ratio, but 70/30, 80/20, and 90/10 are standard and commonly used splitting ratios. Conversely, beam combiners take 2 or more input beams and combine them to produce one single output. They are characterized by low insertion loss and low return loss. Beam splitters and combiners find applications in optical communications systems and networks. They are often used to monitor power in high-power systems such as lasers.

Frequently Asked Questions

Some fiber beam splitters contain a classical glass cube beam splitter. Light arriving at the surface diagonal of the cube will meet a special coating that would transmit some of it and reflect the rest. The amount of light transmitted or reflected depends on the coating transmission and reflection coefficients. Once split, these beams are coupled into optical fibers. Other designs of fiber beam splitters take advantage of evanescent coupling to split the input beam into two arms or outputs. Light coming from one arm will oscillate back and forth between two channels over their overlap region and then split into two separate outputs.

Fiber Optic Beam Splitters and Combiners Overview

Beam Splitters and Combiners in the fiber optics domain are passive components that divide or merge optical power between two or more fiber ports. They are essential for light transport tasks such as signal distribution, monitoring, redundancy, and multiplexing in laboratory, industrial, and telecom environments.

On FindLight, Beam Splitters and Combiners span a range of geometries and fiber types, including fused fiber couplers, planar splitters, wavelength combiners, and polarization-maintaining components. Options are available for single-mode, multimode, and specialty fibers across common wavelength windows.

Typical Specifications and Parameters

When selecting Beam Splitters and Combiners, buyers typically evaluate:

  • Operating wavelength range: Common bands include 400–700 nm (VIS), 780–1064 nm (NIR), 1260–1650 nm (O+E+S+C+L bands), and specialty bands for Yb, Er, or Tm sources.
  • Split ratio / coupling ratio: Standard 50:50, 90:10, 95:5, 1x2 or 1xN splitters, and customizable ratios for power tapping or monitoring.
  • Insertion loss: Typically specified in dB per channel; lower values are preferred for efficient light transport.
  • Return loss / directivity: Critical in coherent, telecom, and sensing systems to minimize back reflections and crosstalk.
  • Power handling: Rated in mW, W, or kW, depending on whether the Beam Splitters and Combiners are used with low-power telecom lasers or high-power fiber lasers.
  • Fiber type and connectorization: SMF, MMF, PM fiber, double-clad fiber, with FC/PC, FC/APC, SC, LC, or bare fiber pigtails.
  • Package style: Bare fiber, ruggedized modules, rack-mountable units, or hermetic packages for harsh environments.

Use Cases and Buyer Guidance

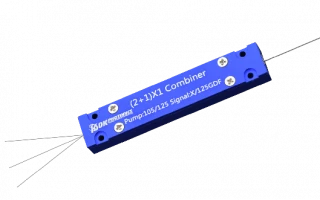

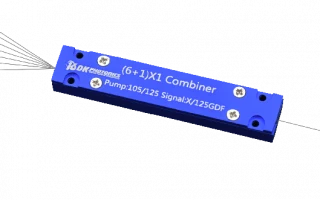

Beam Splitters and Combiners support applications such as interferometry, fiber laser pump/signal combining, power monitoring, optical sensing networks, and signal distribution in data and telecom links. In many light transport architectures, multiple Beam Splitters and Combiners are cascaded to form complex networks.

When comparing products on FindLight, align the split ratio, wavelength band, and power handling with your system budget and laser source. Check environmental ratings (temperature, humidity, vibration) if components are deployed outside the lab. For polarization-sensitive systems, prioritize polarization-maintaining Beam Splitters and Combiners with specified extinction ratios.

Use FindLight to filter by key specifications, review detailed datasheets, and contact multiple suppliers. You can request quotes for any listed Beam Splitters and Combiners directly from vendors without registration, streamlining technical evaluation and procurement.
