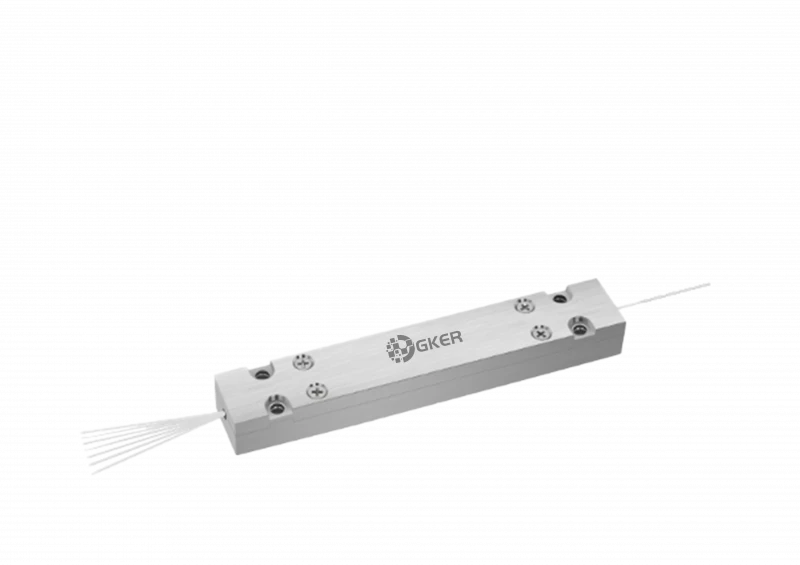

650nm (18+1)×1 High Power Pump and Signal Combiner

Name: 650nm (18+1)×1 High Power Pump and Signal Combiner
Brand: GKER Photonics
Availability: InStock

Description

The (18+1)×1 High Power Pump & Signal Combiner from the HPPC Series is an advanced solution for high-power laser applications. Designed to efficiently combine the output from 18 multimode pump diodes and a signal laser into a single double-clad fiber, this combiner delivers outstanding performance with a power handling capability exceeding 1 kW.

The device features proprietary fiber tapering techniques that ensure high coupling efficiency and minimal insertion loss, making it ideal for demanding industrial, scientific, and medical applications. Custom configurations are available to meet specific needs, ensuring versatility and reliability in various environments. With robust construction and precision engineering, this combiner sets the standard for high-power fiber laser components.

Specifications

Splitting Ratio:	Other
Central Wavelength:	650 nm
Power Handling:	> 100W
Return Loss:	50 dB
Product Type:	(18+1) × 1
Pump Wavelength Range:	915-980 nm
Signal Wavelength Range:	650 nm
Fiber Type For Input (Pump Channel):	105/125 (0.15 or 0.22 NA)
Fiber Type For Input (Signal Channel):	20/125, NA = 0.08/0.46
Fiber Type For Output:	Nufern LMA-GDF-20/400-M, 0.06/0.46 NA
Max. Input Pump Power:	18 × 60 W
Max. Signal Channel Insertion Loss:	2.0 dB
Typ. Pump Efficiency:	99 %
Min. Pump Efficiency:	97 %

Download Data Sheet

Features

High Power Handling: Capable of managing over 1 kW combined power, suitable for the most demanding applications

High Coupling Efficiency: Proprietary fiber tapering technique ensures optimal power transfer and minimal signal loss

Proprietary Fiber Tapering Technique: Enhances efficiency and reliability, crucial for high-performance laser systems

Custom Configurations Available: Tailored solutions to meet specific application needs, providing flexibility and adaptability

Low Signal Channel Insertion Loss: Maintains high signal integrity with a maximum insertion loss of 2.0 dB

Wide Wavelength Range: Compatible with pump wavelengths from 915 to 980 nm and a signal wavelength of 650 nm

Compact Design: Small package dimensions of 100mm (L) × 15mm (W) × 10mm (H) allow for easy integration into various systems

Durable Construction: Designed to operate in temperatures ranging from -5°C to +65°C, with storage capabilities from -40°C to +85°C

Applications

kW Class Fiber Lasers: Ideal for use in high-power laser systems where efficiency and reliability are critical

kW Class Fiber Amplifiers: Perfect for amplifying high-power signals in demanding applications

Industrial Applications: Suitable for industrial processes such as cutting, welding, and marking that require high power and precision

Scientific Research: Used in advanced photonics research, providing reliable performance in experimental setups

Medical Equipment: Applicable in high-precision medical devices that utilize laser technology for treatments and surgeries

Military and Aerospace: Robust design makes it suitable for use in military and aerospace applications where durability and performance are paramount
