Description

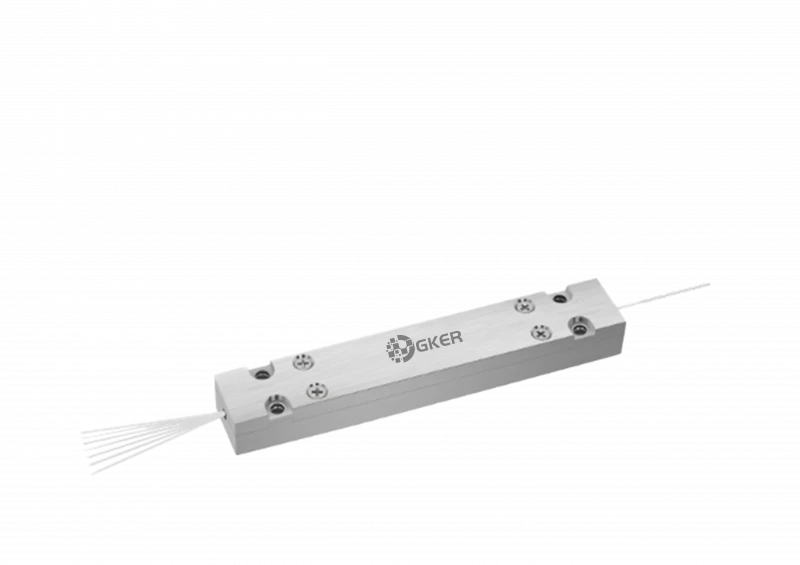

The (18+1)×1 Multimode Pump & Signal Combiner (MMPC Series) represents a state-of-the-art solution designed for integrating multiple pump sources with a signal in optical fiber systems.
Engineered with a focus on high power transfer efficiency and robust signal transmission, this device supports a wide range of wavelengths, including pump wavelengths from 900 to 1000 nm and a signal wavelength of 1064 nm. It features advanced fiber types such as Nufern 105/125 (0.15 NA or 0.22 NA) for pump channels and 10/125 DC, 30/250 DC for signal and output channels, respectively, ensuring versatility and compatibility with various optical setups.
The combiner leverages proprietary tapering and packaging techniques to enhance mechanical stability and environmental resilience, making it suitable for demanding applications in high-power fiber lasers, fiber amplifiers, and telecommunications networks.
(18+1)×1 Multimode Pump and Signal Combiner (MMPC Series)
Specifications
| Splitting Ratio: | Other |
|---|---|
| Central Wavelength: | 1064 nm |
| Power Handling: | > 10W |
| Return Loss: | 50 dB |
| Product Type: | (18+1)×1 |
| Pump Wavelength Range: | 900-1000 nm |
| Signal Wavelength Range: | 1064 nm |
| Fiber Type For Input (Pump Channel): | Nufern 105/125 (0.15 NA or 0.22 NA) |
| Fiber Type For Input (Signal Channel): | 10/125 DC, NA = 0.08/0.46 |
| Fiber Type For Output: | 30/250 DC, NA = 0.06/0.46 |
| Max. Input Pump Power: | 18 × 10 W |
| Signal Channel Insertion Loss: | <0.7 dB |
| Typ. Signal Channel Insertion Loss: | 0.5 dB |
| Min. Pump Efficiency: | 95 % |
| Typ. Pump Efficiency: | 97 % |
Download Data Sheet
Features
- Efficient Power Transfer: Delivers high efficiency in combining pump and signal sources, minimizing energy loss and maximizing output power
- Wavelength Versatility: Covers a wide range of wavelengths, accommodating diverse operational needs from 900 to 1000 nm for pump wavelengths and 1064 nm for signal wavelengths
- Integrated Pump Combiner: Combines pump signals seamlessly with the main signal path, ensuring robust performance and reliability
- Fiber Type Customization: Supports various fiber types for input and output channels, including Nufern 105/125 (0.15 NA or 0.22 NA), 10/125 DC, and 30/250 DC, allowing flexibility in system design
- Proprietary Technology: Utilizes proprietary tapering and packaging techniques to enhance performance and durability in harsh environmental conditions
- Custom Configurations: Offers flexibility with customizable configurations tailored to specific project requirements, ensuring compatibility and optimal performance in diverse optical setups
- Wide Range of Applications: Suitable for high-power fiber lasers, fiber amplifiers, telecommunications systems, optical sensing, and research applications
Applications
- High-Power Fiber Lasers: Provides essential integration of multiple pump sources with signal amplification for high-performance laser systems
- Fiber Amplifiers: Enhances signal strength and stability in fiber optic amplification systems, supporting telecommunications and data transmission networks
- Telecommunications Systems: Facilitates efficient signal transmission and amplification across long-distance optical networks
- Optical Sensing and Instrumentation: Enables precise optical measurements and instrumentation through reliable signal management and power transfer
- Research and Development Projects: Supports innovative research initiatives by offering robust and customizable optical integration solutions
Frequently Asked Questions
What is a (18+1)×1 Multimode Pump & Signal Combiner?
A (18+1)×1 Multimode Pump & Signal Combiner is an optical device designed to combine up to 18 pump channels with one signal channel in optical fiber systems. It efficiently integrates multiple pump sources into a single output, optimizing power transfer and minimizing signal loss.
What is the typical signal channel insertion loss of the MMPC Series Combiner?
The typical signal channel insertion loss is 0.5%.
What is the minimum pump efficiency of the MMPC Series Combiner?
The minimum pump efficiency is 95%.
Can the MMPC Series Combiner be used with different fiber types?
Yes, it supports a variety of fiber types including Nufern 105/125 (0.15 NA or 0.22 NA), 10/125 DC, and 30/250 DC, offering flexibility in system design and integration.
Is the MMPC Series Combiner suitable for high-power applications?
Yes, it is designed for high-power applications with a maximum input pump power of 18 × 10 W.
What packaging dimensions are available for the MMPC Series Combiner?
Package dimensions are 100 mm (L) × 15 mm (W) × 10 mm (H), ensuring a compact footprint while maintaining robust performance.
