Description
The High Power (6+1)×1 Pump & Signal Combiner from the HPPC Series stands at the forefront of optical integration technology, designed to consolidate the outputs of up to six multimode pump diodes and a signal laser into a single double-cladding output fiber. Engineered to handle power levels exceeding 1 kW with exceptional efficiency, this device leverages advanced proprietary fiber tapering techniques to ensure high coupling efficiency and minimal insertion losses. Its robust design and customizable configurations cater to a diverse range of applications, making it an essential component for industries demanding reliable and high-performance optical solutions.
This combiner is specifically crafted for applications requiring kilowatt-class fiber lasers and amplifiers, where precision, reliability, and power handling capabilities are paramount. It supports a wide range of fiber types including Nufern LMA-GDF-20/400-M with NA (Numerical Aperture) of 0.06/0.46, ensuring compatibility across various wavelength ranges and specific application needs. The device's versatility extends to custom configurations, allowing seamless integration into complex optical systems tailored to meet specific customer requirements.
Industries benefitting from the High Power (6+1)×1 Pump & Signal Combiner include manufacturing, telecommunications, aerospace, and defense. It plays a crucial role in high-power fiber lasers used for industrial cutting, welding, and material processing applications, providing the necessary power and precision for demanding tasks. In telecommunications, it serves as a key component in amplifying optical signals over long distances, enhancing signal integrity and transmission efficiency in networks. Additionally, the combiner supports CATV (Cable Television) applications by optimizing signal distribution and amplification, ensuring high-quality transmission across extensive cable networks.
Built to withstand challenging environmental conditions, the HPPC Series complies with stringent operational standards, featuring robust construction and reliable performance across a wide temperature range (-40 to +85°C). This ensures longevity and operational reliability in diverse and demanding environments, from industrial production floors to research laboratories and telecommunications hubs. As a leader in optical fiber technology, our commitment to innovation drives the continuous enhancement of products like the High Power (6+1)×1 Pump & Signal Combiner, empowering industries with cutting-edge solutions for their most critical optical integration challenges.

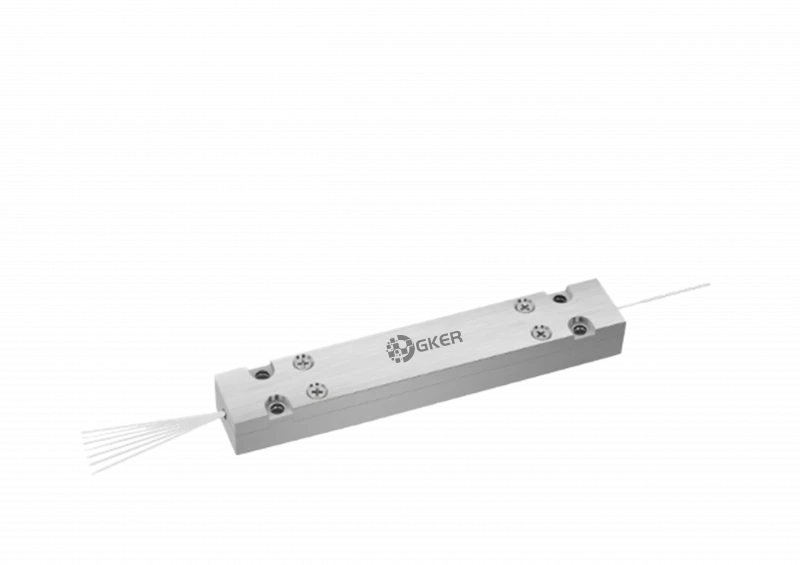

High Power (6+1)×1 Pump and Signal Combiner (HPPC Series
Specifications
Splitting Ratio: | Other |
---|---|
Central Wavelength: | 915 nm |
Power Handling: | > 100W |
Return Loss: | 50 dB |
Product Type: | (6+1)×1 |
Pump Wavelength Range: | 915 - 980 nm |
Signal Wavelength Range: | 1030-1080 nm |
Fiber Type For Input (Pump Channel): | Nufern 220/242 (0.22 NA) |
Fiber Type For Input (Signal Channel): | Nufern LMA-GDF-20/400-M, 0.06/0.46 NA |
Fiber Type For Output: | Nufern LMA-GDF-20/400-M, 0.06/0.46 NA |
Max. Input Pump Power: | 6 × 200 W |
Max. Signal Channel Insertion Loss: | 0.5 dB |
Typ. Pump Efficiency: | 99 % |
Min. Pump Efficiency: | 97 % |
Features
- High Power Handling: Capable of combining up to 6 multimode pump diodes and a signal laser into a single fiber output, facilitating efficient power transfer up to 1 kW
- High Coupling Efficiency: Utilizes proprietary fiber tapering techniques to optimize light coupling and minimize losses, ensuring maximum output performance
- Versatile Fiber Compatibility: Supports Nufern LMA-GDF-20/400-M and other specified fiber types with varying numerical apertures (NA), offering flexibility to match specific application requirements
- Custom Configurations: Available with tailored configurations to accommodate unique operational needs, providing enhanced versatility in optical integration projects
- Robust Design: Engineered for reliability in demanding environments, suitable for kW-class fiber laser systems, high-power EDFA (Erbium-Doped Fiber Amplifier) setups, and CATV (Cable Television) amplification applications
Applications
- Kilowatt-Class Fiber Lasers: Ideal for high-power fiber laser systems used in industrial cutting, welding, and material processing applications
- High Power Fiber Amplifiers: Essential component for amplifying optical signals in telecommunications, aerospace, and research sectors
- CATV Amplification: Supports broadband distribution and amplification in cable television networks, ensuring reliable signal transmission over long distances
- Optical Research and Development: Facilitates advanced optical experiments and prototypes in photonics laboratories, universities, and research institutions
