Description

The AMU-050 is a high-performance, tactical-grade Inertial Measurement Unit (IMU). It integrates a triaxial MEMS accelerometer and a triaxial MEMS
gyroscope, offering exceptional bias instability and dynamic response capabilities. With gyroscope bias instability as low as 0.2 °/h and accelerometer bias
instability of 15 μg, it provides a solid foundation for high-precision attitude and navigation applications. The unit employs proprietary fusion algorithms to
effectively suppress random drift and noise interference, ensuring stable and reliable data output even in dynamic environments. Each unit is factory-calibrated and compensated across the full temperature range, guaranteeing consistency and reliability under harsh operating conditions such as high and low  temperatures. It is widely suitable for unmanned systems, intelligent equipment, high-precision surveying, and other scenarios demanding extreme accuracy and  stability

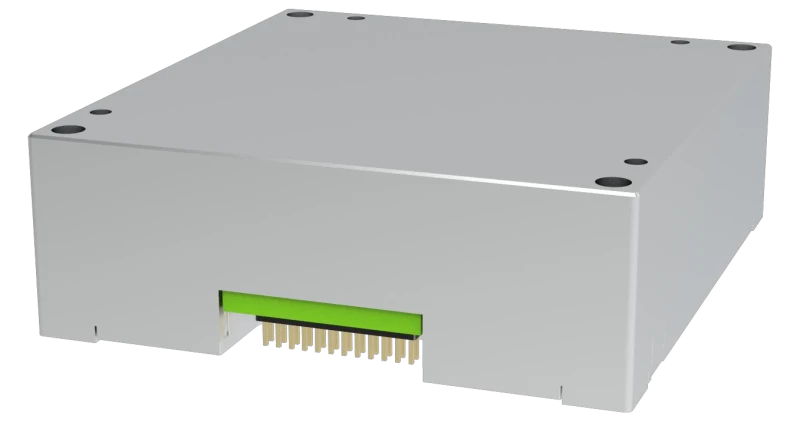

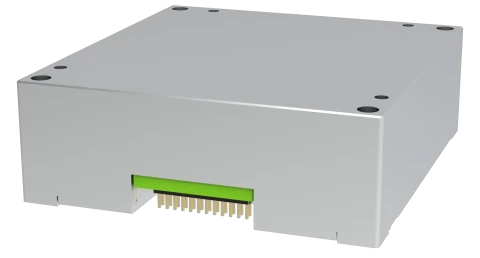

Aoshi Control-AMU-050-Tactical Grade Inertial Measurement Unit(MEMS)

Specifications

Angular Rate: -320 – 320 deg/sec
Bandwidth (min): 30 Hz
Gyro Bias Instability: 0.2 deg/h
Accel Bias Instability: 15 ug
Dimensions (LxWxH): 44 x 47 x 15 mm
Weight: 45 g
Operating Temperature: -40 to +85 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Small size, light weight, low power consumption
  • Full temperature calibration and compensation from -40°C to +85°C
  • Robust performance in harsh mechanical environments
  • UART and SPI communication interfaces
  • Gyroscope Bias Instability: 0.2 °/h
  • Accelerometer Bias Instability: 15 μg
  • Angular Random Walk: 0.02 °/√h
  • Velocity Random Walk: 0.02 m/s/√h

Applications

  • Aerial surveying and mapping
  • Satcom on the Move
  • Map data collection
  • Precision instrumentation
  • Intelligent control
  • Engineering machinery
  • Robotics
  • Autonomous driving
