Description
The AMU-020 High-Precision Automotive-Grade Inertial Measurement Unit (IMU) is a compact, high-precision MEMS-based IMU. It integrates orthogonally mounted high-precision MEMS gyroscopes and high-precision MEMS accelerometers.
It features built-in calibration algorithms for full-temperature bias error compensation, mounting orthogonality error compensation, non-linear error compensation, and ε-value sensitive error compensation, among others.
Data transmission is achieved via a small Molex 6-pin connector using UART TTL communication protocol. It is widely applicable in fields such as intelligent driving and platform stabilization control.

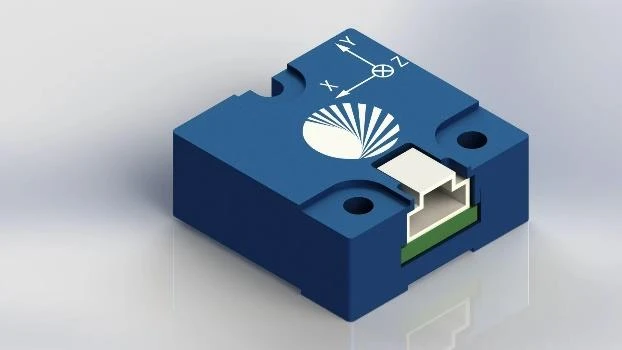

Aoshi Control-AMU-020-High-Precision Automotive-Grade Inertial Measurement Unit
Specifications
| Angular Rate: | Not Specified |
|---|---|
| Bandwidth (min): | 200 Hz |
| Range: | ±250 °/s |
| Zero Bias Instability: | 4 °/h |
| Zero Bias Stability: | 10 °/h |
| Zero Bias Repeatability: | 5 °/h |
| Full-Temperature Zero Bias: | ±0.07 °/s |
| Angle Random Walk (ARW): | 0.015 °/√hr |
| Scale Factor Non-linearity: | 200 ppm |
| Bandwidth: | 200 Hz |
| Dimensions: | L22.5mm*W22.5mm*H9.5 |
| Weight: | ＜11 g |
| Connector: | MOLEX 5015680607 |
| Operating Temperature: | -40°C to +85°C |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Dual Inertial Systems, higher precision
- High shock resistance, low stress desig
- Controllable cost, guaranteed production capacity
- Automotive-grade safety
- Small size, low power consumption, lightweight
- Selectable range and bandwidth
- High impact resistance
- Multiple compensation algorithms
Applications
- Autonomous Driving
- Small UAV Navigation Control
- Stabilization Platforms
- Satellite Integrated Navigation
- Intelligent Passenger Vehicles
- Precision Agriculture
- Logistics Robots
- Industrial Robots
