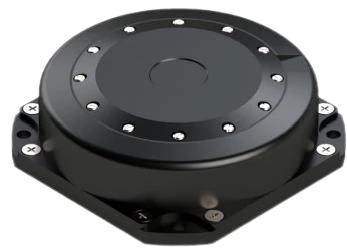

AF-1120A Ultra-Low Noise Single-Axis Fiber Optic Gyroscope for Precision Navigation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2025
Description
Aoshi Control is a leading innovator in the research, development, production, and sales of fiber optic gyroscopes (FOG), inertial navigation systems (INS), specialty fibers, fiber coils, and Y-waveguides. Over years of dedicated R&D, we have created a full range of high-, medium-, and low-precision FOG series and north seekers.
Our products are trusted worldwide in aerospace, aviation, marine navigation, deep-sea exploration, underground mining, and advanced vehicle control systems. They are recognized for their exceptional quality, reliability, and cost-effectiveness, earning Aoshi Control a strong reputation across the industry.
Looking ahead, we are committed to expanding our global market presence, advancing into new application fields, and developing next-generation ultra-high-precision FOGs. Our long-term goal is to build China’s largest production line for inertial products and optoelectronic devices, targeting an annual manufacturing capacity of 100,000–300,000 FOG axes.
AF-1120A Ultra-Low Noise Single-Axis Fiber Optic Gyroscope for Precision Navigation
Specifications |
|
|---|---|
| Turn-on Time: | ≤5 S |
| Dynamic Range: | -300～+300 °/s |
| Bias: | ≤0.02 °/h |
| (1σ,100s)Bias Stability: | ≤0.003 °/h |
| (1σ,100s)Bias Repeatability: | ≤0.003 °/h |
| (1σ,100s)Bias Stability Over Full Temperature Range: | ≤0.02 °/h |
| Scale Factor Nonlinearity: | ≤10 ppm |
| Scale Factor Asymmetry: | ≤10 ppm |
| Scale Factor Repeatability Over Full Temperature: | ≤50 ppm |
| Random Walk Coefficient: | ≤0.001 / √h |
| Threshold: | ≤0.01 °/h |
| Power Supply: | ±5(±0.2) V |
| Power Consumption: | ≤5 W |
| Dimensions: | 120×120×38 mm |
Applications
- Aerospace & Aviation
- Marine & Subsea Navigation
- Defense & Military
- Space Applications
- Industrial & Commercial Vehicles
- Robotics & Autonomous Systems
