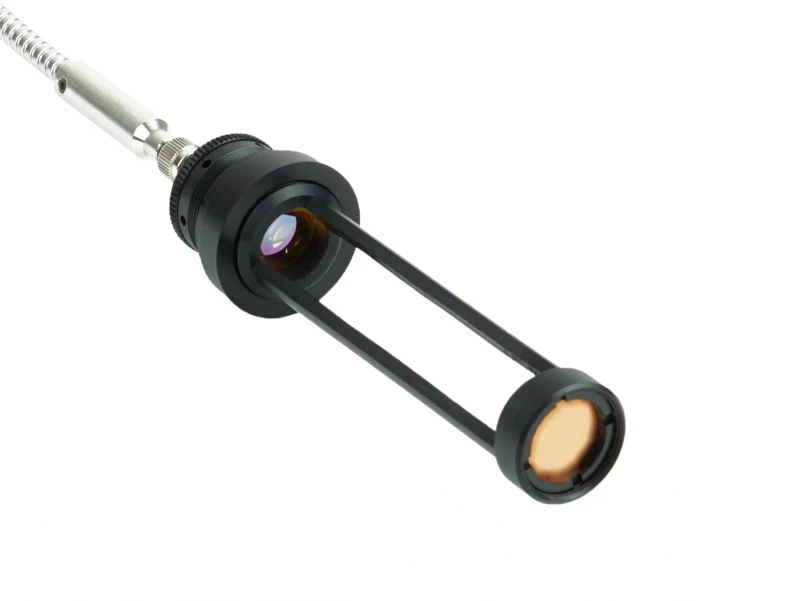

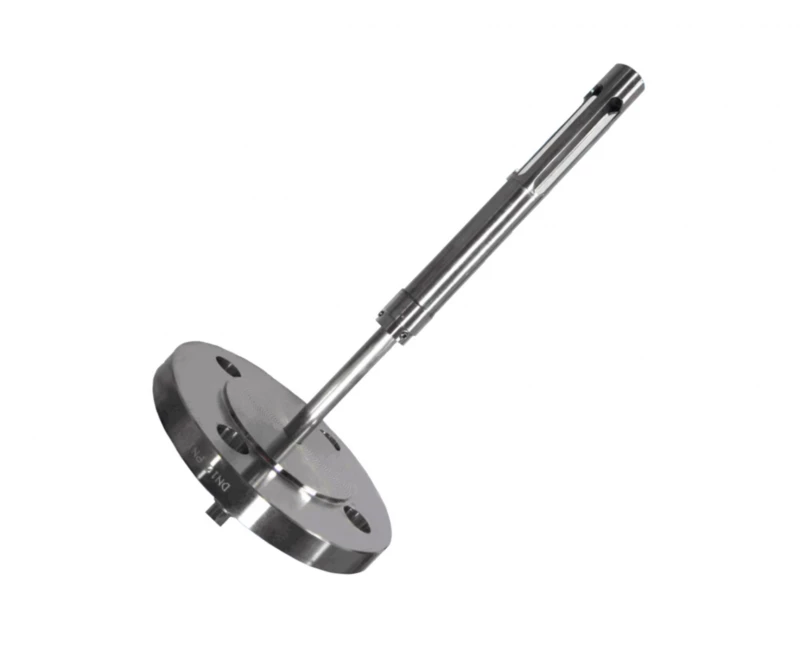

Thumbnail of Gas Transmission Infrared Fiber Optic Probe for Gases (Silica) photo 1
Thumbnail of Gas Transmission Infrared Fiber Optic Probe for Gases (Silica) photo 2
Thumbnail of Gas Transmission Infrared Fiber Optic Probe for Gases (Silica) photo 3

Description

Gas Transmission Infrared Fiber Optic Probe for Gases
  • On-line transmission spectroscopy in gases
  • High throughput in any part of NIR-MIR spectra
  • Flexible and robust for industrial applications
  • Compatible with any spectrometer
FlexiSpec® product line includes the latest generation of Transmission infrared fiber optic probes for gases to be used with any spectrometer or photometer. The design of Transmission Fiber Probe for gases is based on a bifurcated fiber bundle.

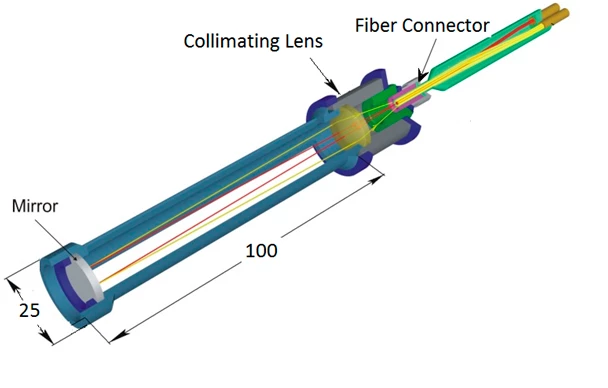

Due to low Mid IR-attenuation in gases the collimated beam design of double pass (or multiple pass) gas cell is needed to increase optical path length to 10 – 40cm. This design is easily realized by the mean of the collimating objective and reflecting mirror cell.

Gas Transmission Infrared Fiber Optic Probe for Gases (Silica)

Visit the Art photonics GmbH Store

Specifications

Transmission: 0.5 – 2.2 um
Temperature Range: -50 – 200 C
Sensitivity: >1ppm depending on optical path, spectrometer performance, gases in test

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Throughput Across NIR-MIR Spectra: Designed to provide high throughput in any part of the Near-Infrared to Mid-Infrared (NIR-MIR) spectra, enhancing its utility across a wide range of gas analysis applications.
  • Designed for Industrial Applications: The probe's construction is both flexible and robust, making it suitable for use in various industrial environments.
  • Compatibility: Can be used with any spectrometer, making it versatile for different measurement systems.
  • Innovative Design: Utilizes a bifurcated fiber bundle design for efficient gas analysis. The double pass (or multiple pass) gas cell design, facilitated by a collimating objective and reflecting mirror cell, increases the optical path length to 10 – 40cm to enhance sensitivity.
  • Transmission Range: Operates within the 0.5-2.2um wavelength range, catering to a broad spectrum for gas analysis.
  • Temperature Range: Functional across a wide temperature range from -50°C to 200°C, ensuring reliability under varied environmental conditions.
  • Sensitivity: Offers high sensitivity (>1ppm) depending on the optical path, spectrometer performance, and the specific gases being tested.

Applications

  • Reaction investigation and monitoring in real time
  • Analytical Characterization
  • Exhaust gases monitoring
  • Solvent vaporization monitoring
  • Associated petroleum gas monitoring

Frequently Asked Questions

What is the Gas Transmission Infrared Fiber Optic Probe for Gases used for?
The Gas Transmission Infrared Fiber Optic Probe for Gases is used for on-line transmission spectroscopy in gases, reaction investigation and monitoring in real time, analytical characterization, exhaust gases monitoring, solvent vaporization monitoring, and associated petroleum gas monitoring.
What is the design of the Transmission Fiber Probe for gases based on?
The design of the Transmission Fiber Probe for gases is based on a bifurcated fiber bundle.
What is the optical path length of the Transmission Fiber Probe for gases?
The optical path length of the Transmission Fiber Probe for gases is 10-40cm.
What is the FlexiSpec® product line?
The FlexiSpec® product line includes the latest generation of Transmission infrared fiber optic probes for gases to be used with any spectrometer or photometer.
What is the Gas Transmission Infrared Fiber Optic Probe for Gases compatible with?
The Gas Transmission Infrared Fiber Optic Probe for Gases is compatible with any spectrometer.

Got more questions? Use the inquiry form to ask the supplier directly.
