Description

Sterilizable ATR Fiber Probe is a new product of art photonics’ FlexiSpec® product line. This ATR Probes are produced with any type of ATR element and for any type of FTIR spectrometers.

Unique Shaft-in-Shaft design enables use of FlexiSpec® ATR Probe in Bio process where sterilization is required without having to forgo the renowned advantages of MID-IR FTIR spectroscopy.

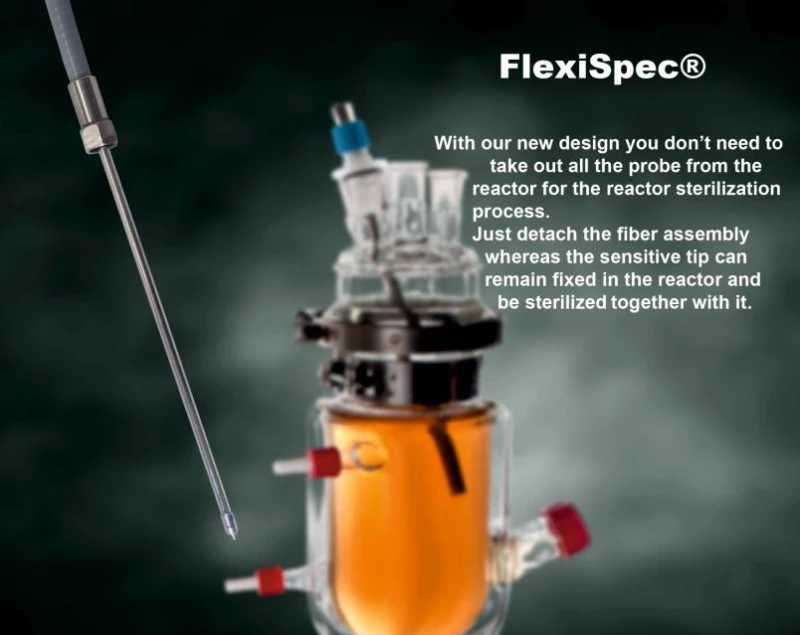

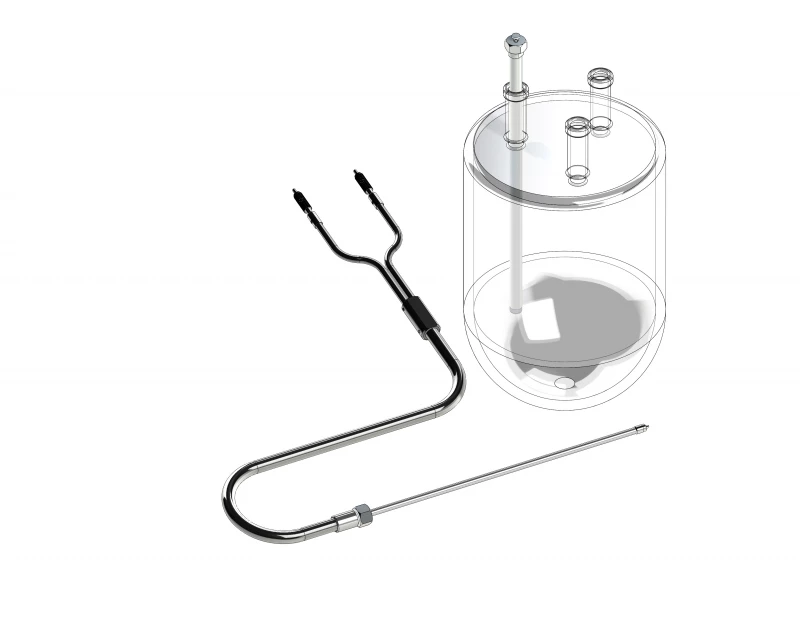

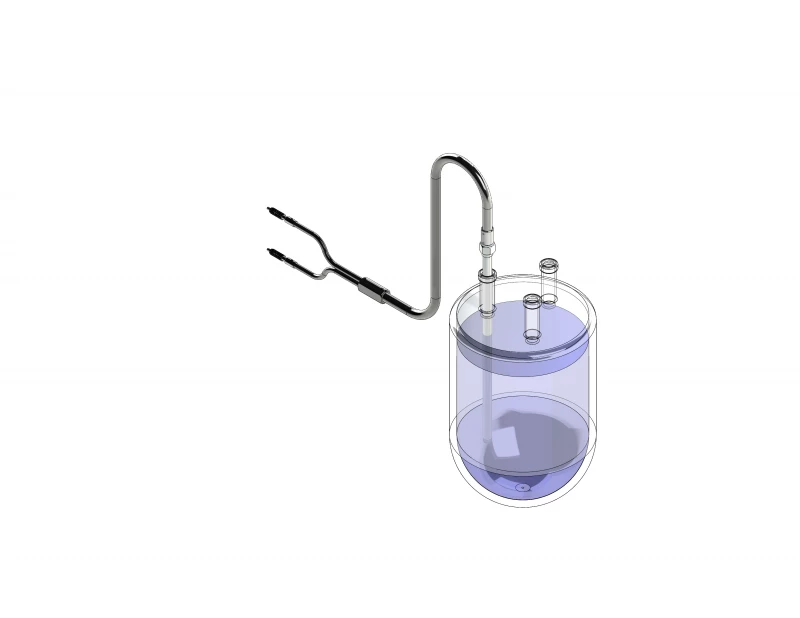

With our new design you don’t need to take out all the probe from the reactor during the reactor sterilization process. Just detach the fiber assembly whereas the sensitive tip can remain fixed in the reactor and be sterilized together with it.

Sterilizable IR-ATR Fiber Probe for Bio- Process Monitoring (Cubic Zirconium ATR)

Visit the Art photonics GmbH Store

Specifications

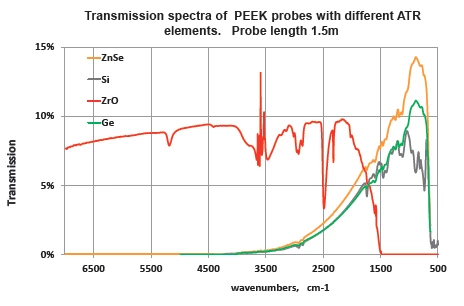

Transmission: 1.5 – 6.5 um
Temperature Range: -100 – 200 C
Fiber Type: CIR 500/550 Chalcogenide glass (As-S)
Pressure (max): 100 Bar
Total Length: 1.5 m
Shaft Length: 300 mm
Shaft Diameter: 12 mm
Shaft Material: Hastelloy C22
Length Of Legs: 500 mm
Protective Tube Material: Liquid Tight SS-Conduit, KOPEX-Tube
Minimal Bending Radius: 130 mm
Input / Output Connectors: Long SMA

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Applications

  • Reaction Monitoring in real time
  • Process Analytical Technologies (PAT)
  • Remote Polymerization Control
  • Crystallization Process Screening
  • In-situ IR-Spectroscopy for PAT in Chemical, Petrochemical, Atomic, Bio-pharmaceutical & Food Industry

Frequently Asked Questions

What is the Sterilizable IR-ATR Fiber Probe used for?
The Sterilizable IR-ATR Fiber Probe is used for bio-process monitoring, reaction monitoring in real time, process analytical technologies (PAT), remote polymerization control, crystallization process screening, and in-situ IR-spectroscopy for PAT in chemical, petrochemical, atomic, bio-pharmaceutical, and food industry.
What is the unique feature of the Sterilizable IR-ATR Fiber Probe?
The unique feature of the Sterilizable IR-ATR Fiber Probe is its Shaft-in-Shaft design, which enables use in bio processes where sterilization is required without having to forgo the renowned advantages of MID-IR FTIR spectroscopy.
What types of ATR elements can be used with the Sterilizable IR-ATR Fiber Probe?
The Sterilizable IR-ATR Fiber Probe can be produced with any type of ATR element.
Can the sensitive tip of the Sterilizable IR-ATR Fiber Probe be sterilized?
Yes, the sensitive tip of the Sterilizable IR-ATR Fiber Probe can remain fixed in the reactor and be sterilized together with it.
What type of spectrometers can be used with the Sterilizable IR-ATR Fiber Probe?
The Sterilizable IR-ATR Fiber Probe can be used with any type of FTIR spectrometers.

Got more questions? Use the inquiry form to ask the supplier directly.
