Description

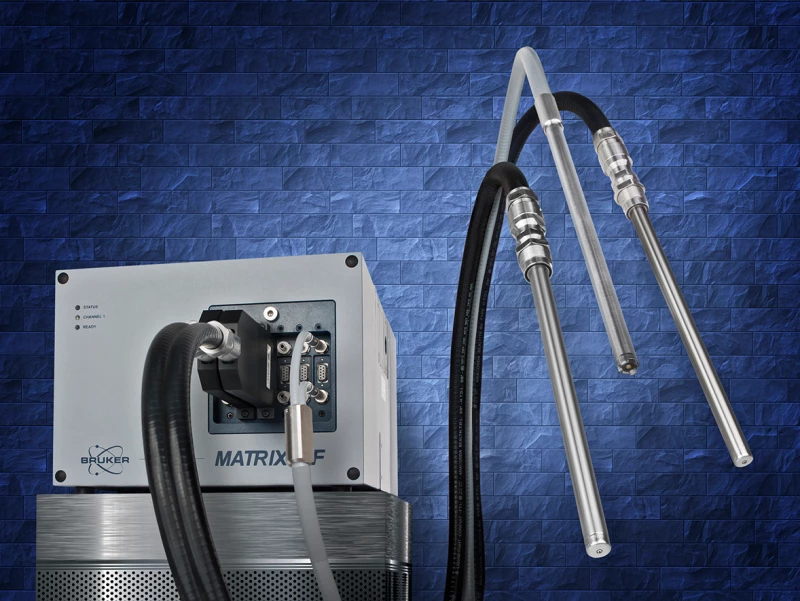

FlexiSpec® product line from art photonics presents the latest generation of Attenuated Total Reflection Probes. Fiber optic ATR-Probes are produced for any spectral range in UV -Vis -NIR and Mid-IR. They are compartible with any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL. ATR immersion Fiber Optic Probes with patented design are suitable for reaction monitoring in lab, pilot plant and industry for full automated process control.
Different type of ATR Crystals are available: Diamond, Silicon, Zinc Selenide, Germanium,Cubic Zirconia and Sapphire.

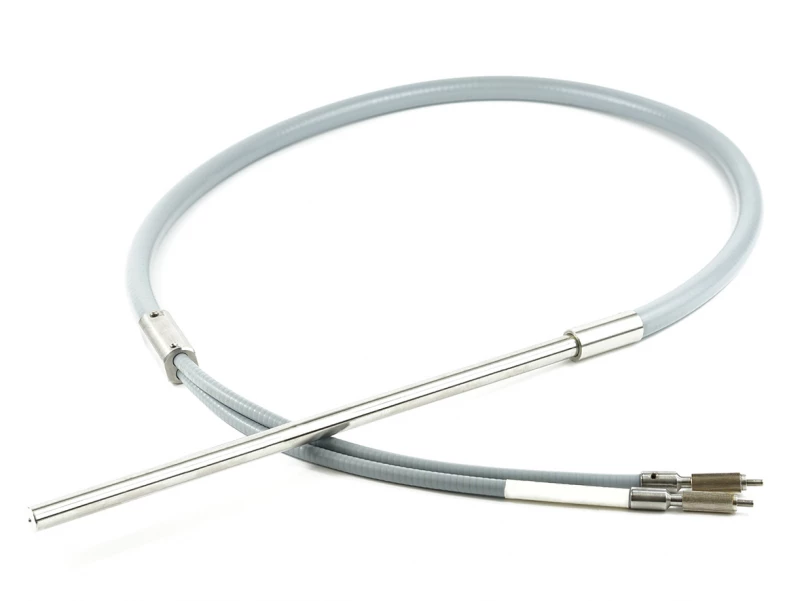

Di-ATR Fiber Optic Probe, Standard Design
Specifications
Transmission: | 5.2 – 17 um |
---|---|
Temperature Range: | -140 – 150 C |
ATR Tip Material: | Diamond (opt. see datasheet) |
Spectral Range: | 1900 - 600 cm-1 |
Shaft Material: | Hastelloy C22 |
Shaft Length: | 300 mm (opt.: 100-700 mm) |
Shaft Diameter: | 6.3 / 12 mm |
Total Length: | 1.5 m (opt. 1 to 5 m) |
Length Of Legs: | 500 mm (opt. 200 – 500 mm) |
Protective Tube Material: | Liquid Tight SS-Conduit, KOPEX-Tube |
Minimal Bending Radius: | 130 mm |
Input / Output Connectors: | SMA-905 (opt. any other type) |
Pressure: | 200 Bar (300 Bar on request) |
Features
- High throughput in any part of the Near- and Mid-IR spectrum
- No dead zone for accurate measurements
- Flexible and robust design for industrial applications in harsh environments
- Compatible with all spectrometers and automated process interfaces
Applications
- Reaction monitoring in lab, pilot plant, and industrial environments
- Process Analytical Technologies (PAT)
- Remote Polymerization Control
- In-sity IR-Spectroscopy for Chemical, Petrochemical, Biopharmaceutical, Food, Atomic Industry
Frequently Asked Questions
What is the FlexiSpec Fiber Optic Probe Diamond ATR used for?
The FlexiSpec Fiber Optic Probe is used for remote Spectroscopic analysis in UV, visible, near-IR, and Mid-IR ranges.
What is the FlexiSpec product line?
The FlexiSpec product line is the latest generation of Attenuated Total Reflection Near & Mid IR-fiber ATR-Probes produced for any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL spectral sensors.
What is the patented design of the ATR immersion fiber optic probes?
The ATR immersion fiber optic probes have a patented design that makes them suitable for reaction monitoring in lab, pilot plant and for full automated process control.

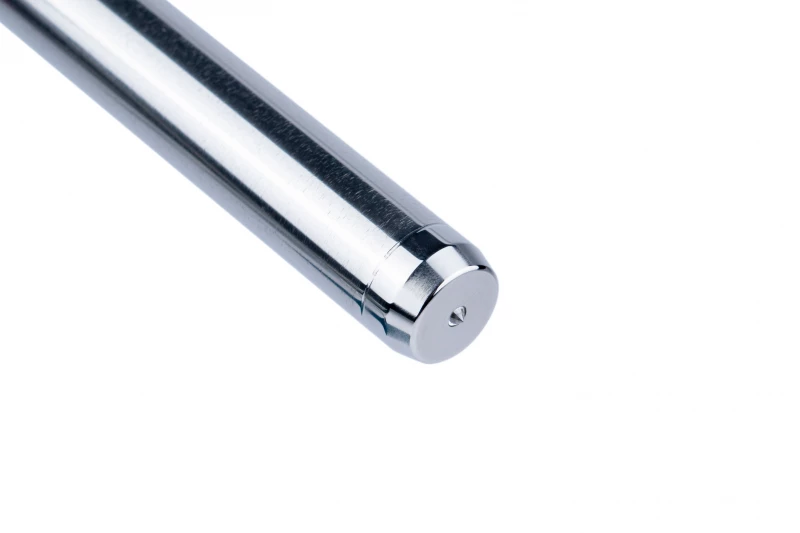

What is ATR fiber Probe tip? What types of tips are available?
Tip is a ATR crystal which is built in the probe and allow measurement of the media outside. Tips are limiting the working range of the probe and available from Diamond, Silicon, Germanium, Cubic Zirconia and Sapphire materials. You can find more information in the datasheet.
