Description

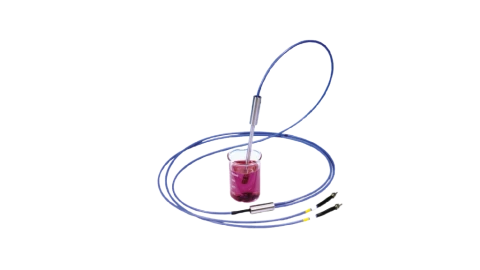

Stainless Steel Transmission Dip Probes for UV-VIS-NIR Spectroscopy

The T300-RT and T200-RT stainless steel transmission dip probes are designed for precise absorbance and transmission spectroscopy measurements in laboratory, industrial, and inline process monitoring applications. Compatible with UV-VIS and VIS-NIR spectroscopy systems, these probes provide reliable real-time analysis of liquid samples across a broad range of scientific and industrial environments.

Engineered for seamless integration with Ocean Optics and third-party spectrometers and light sources, the probes support inline process analysis, reaction monitoring, chemical measurements, and laboratory absorbance spectroscopy. Their compact stainless steel construction provides excellent durability, corrosion resistance, and long-term mechanical stability for demanding operating conditions.

The probes utilize high-quality fused silica optics and second-surface aluminum mirrors to maximize optical throughput and measurement precision. Available in multiple fiber core configurations and wavelength ranges, the T300-RT and T200-RT series support both UV-VIS and VIS-NIR absorbance measurements for flexible spectroscopy applications.

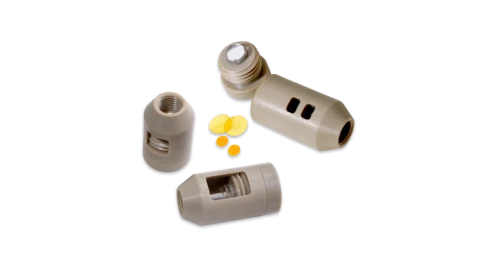

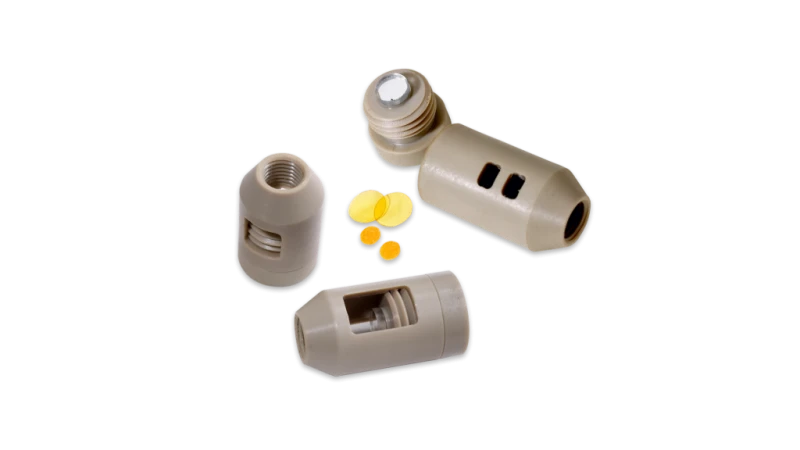

Interchangeable transmission tips with flow path options of 2 mm, 5 mm, and 10 mm allow optimization for varying sample concentrations and optical path requirements. Optional pH sensing tip configurations further expand the probe’s analytical capabilities for chemical and environmental monitoring applications.

Stainless Steel Standard Transmission Dip Probe UV-VIS-NIR

Specifications

Transmission: 0.2 – 2.1 um
Temperature Range: 1 – 100 C
T200-RT-VIS-NIR: 400-2100 nm, 200um fiber core
T300-RT-UV-VIS: 200-1100 nm, 300um fiber core
T300-RT-VIS-NIR: 400-2100 nm, 300um fiber core
Operating Temperature: Up to 100 C without sleeve
Pressure: 100 psi
Fiber Length: 2 meters
Probe Length: 127 mm
Outer Diameter: 3.175 mm internal, 6.35 mm with sleeve
Optics: Fused silica
Material: Stainless Steel
Optional: pH tip (RT-PH)
Internal Materials: Second surface aluminum mirror
Connector: SMA 905
Fiber Jacketing: PVC Monocoil-PVDF zip tube
Breakout: 1.0 m from the end of the probe
Tip (flow Path): RT-xx (2,5, 10mm)
Sleeve Material: Stainless Steel (300 series)
Sleeve: T-200SLEEVE, T-300SLEEVE
Fiber Type: VIS-NIR
Fiber Type: SR

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Versatile Compatibility: The T300-RT and T200-RT Transmission Dip Probes are designed to seamlessly couple with our spectrometers and light sources, enabling precise absorbance and transmission measurements in solutions.
  • Real-Time Monitoring: Ideal for embedding into process streams, these probes facilitate real-time sample monitoring, enhancing efficiency and accuracy in various applications.
  • High-Quality Construction: Crafted from durable stainless steel, these probes ensure longevity and reliability in both laboratory and industrial environments.
  • Wide Range of Applications: Available in UV-VIS and VIS-NIR ranges, these probes cater to diverse analytical needs, making them suitable for a variety of scientific and industrial applications.
  • Standardized Design: Features a consistent outer diameter of 3.175 mm for the internal assembly and 6.35 mm with the stainless steel sleeve, ensuring compatibility and ease of use.
  • Optimal Length and Optics: Each probe measures 127 mm in length and is equipped with fused silica optics for superior performance.
  • Robust Internal Materials: Incorporates a second surface aluminum mirror for enhanced durability and performance.
  • Customizable Tips: Offers a variety of tip options (RT-xx) with flow paths of 2, 5, or 10 mm to suit specific requirements.
  • Convenient Fiber Length: Comes with a 2-meter fiber length and a 1.0 m breakout from the end of the probe for flexible installation.
  • Durable Fiber Jacketing: Features PVC Monocoil-PVDF zip tube jacketing for added protection and durability.
  • Reliable Connectivity: Equipped with SMA 905 connectors for secure and stable connections.
  • Temperature and Pressure Resilience: Operates efficiently at temperatures up to 100°C without the sleeve and withstands pressures up to 100 psi.
  • Optional pH Measurement: Compatible with optional pH tips (RT-PH) for expanded analytical capabilities.

Applications

  • Inline absorbance measurements
  • Industrial process monitoring
  • Laboratory transmission spectroscopy
  • Chemical analysis
  • Reaction monitoring
  • Environmental and water analysis
  • Biotechnology and pharmaceutical measurements
  • OEM spectroscopy integration

Frequently Asked Questions

What are the T300-RT and T200-RT Transmission Dip Probes used for?
The T300-RT and T200-RT Transmission Dip Probes are used to measure absorbance and transmission in solutions, and are especially useful for embedding into process streams for real-time sample monitoring.
What materials are the probes made of?
The probes are made of stainless steel, with a stainless steel sleeve and internal materials including a second surface aluminum mirror.
What are the available ranges for the Transmission Dip Probes?
The available ranges for the Transmission Dip Probes are UV-VIS and VIS-NIR.
What is the operating temperature range for the probes?
The probes can operate at temperatures up to 100°C without the sleeve.
What is the pressure rating for the Transmission Dip Probes?
The Transmission Dip Probes are rated for pressures up to 100 psi.
What is the fiber diameter and length for the probes?
The fiber diameter is either 200 um or 300 um, and the fiber length is 2 meters.
What type of connector is used with the probes?
The probes use an SMA 905 connector.

Got more questions? Use the inquiry form to ask the supplier directly.
