Fiber Optic TransFlex Probe (Silica Vis-NIR)

Name: Fiber Optic TransFlex Probe (Silica Vis-NIR)
Brand: Art photonics GmbH

Description

FlexiSpec® product line includes the latest generation of Transmission (single pass) & TransFlex (dual pass) fiber optic probes to be used with any spectrometer or photometer.

FlexiSpec® Single & Dual Pass fiber optic probes are compatible with process-interfaces to be cleanable and to enable reaction monitoring in lab, pilot plant and run full automated process control.

Specifications

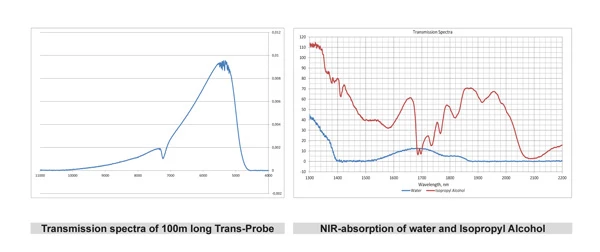

Transmission:	0.4 – 2.2 um
Temperature Range:	Not Specified
Fiber Type:	Silica UV-NIR

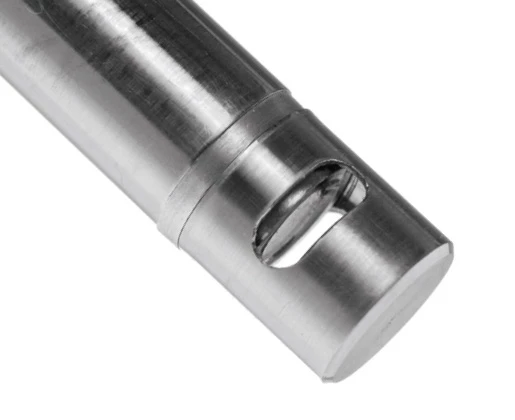

Gap Dimension:	2, 5 and 10 mm
Minimum Bending Radius:	120 mm

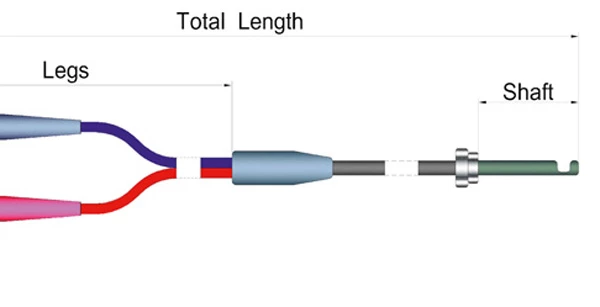

Total Length:	1.5 m
Shaft Length:	230 mm
Shaft Diameter:	12 mm

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Applications

Reaction Monitoring in real time
Process Analytical Technologies (PAT)
Crystallization Development & Screening
Analytical Characterization
Biopharmaceutical Analysis
Biofuel Development & Production

Request Quote

To: Art photonics GmbH
Re: Fiber Optic TransFlex Probe (Silica Vis-NIR)

Name

Work Email

Organization

Country

Your message to supplier

Get quotes from similar suppliers (Recommended)

Thank you, your message was sent successfully.

Ships from:: Germany
Sold by:: Art photonics GmbH
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the FlexiSpec® product line?

The FlexiSpec® product line includes the latest generation of Transmission (single pass) & TransFlex (dual pass) fiber optic probes to be used with any spectrometer or photometer.

What are the applications of the FlexiSpec® Single & Dual Pass fiber optic probes?

The applications of the FlexiSpec® Single & Dual Pass fiber optic probes include Reaction Monitoring in real time, Process Analytical Technologies (PAT), Crystallization Development & Screening, Analytical Characterization, Biopharmaceutical Analysis, and Biofuel Development & Production.

What is the transmission range of the Fiber Optic TransFlex Probe?

The transmission range of the Fiber Optic TransFlex Probe is 0.4 - 2.2 µm for Silica Vis-NIR.

What is the temperature range for the Fiber Optic TransFlex Probe?

The temperature range for the Fiber Optic TransFlex Probe is ≤ 200°C.

What are the input/output connectors for the Fiber Optic TransFlex Probe?

The input/output connectors for the Fiber Optic TransFlex Probe are Long SMA, FC/PC, and ST.
