High-Pressure Industrial Transmission Dip Probes for VIS–NIR Process Spectroscopy

The TI300-VIS-NIR industrial transmission dip probe is designed for high-temperature and high-pressure absorbance and transmission measurements in demanding industrial process environments. Supporting VIS–NIR spectroscopy from 400–2100 nm, the probe enables reliable inline monitoring, chemical analysis, and real-time process control across a wide range of industrial and laboratory applications.

Industrial Transmission Process Probes

Introducing our robust and reliable TI300-series Transmission Industrial Dip Probes, designed to withstand the most demanding industrial environments. These probes are engineered to operate efficiently under high-pressure conditions up to 250 psi and can endure temperatures soaring to 300 °C. Crafted with precision, the TI300-UV-VIS model incorporates a 300 µm diameter solarization-resistant optical fiber, covering a wavelength range of 200-1100 nm. Meanwhile, the TI300-VIS-NIR variant utilizes a 300 µm diameter VIS-NIR optical fiber, extending its range from 400-2100 nm. These probes seamlessly integrate with our spectrometers and light sources, ensuring accurate measurement of solution absorbance and transmission in various industrial settings.

Standard Transmission Dip Probes

Our high-pressure, high-temperature transmission dip probes are constructed from durable 316 stainless steel, ensuring longevity and reliability in harsh conditions. The probes feature a 12.7 mm outer diameter, with a ferrule length of 12.7 cm, excluding the tip. The tips themselves vary in length from 2.6 cm to 4.9 cm, depending on the specific application requirements. The internal components are crafted from quartz, including a back-coated mirror and lens, providing superior optical performance. The flow path tips are available in multiple sizes, ranging from 2 mm to 50 mm, allowing for versatile application.

Durable and Versatile Design

The TI300-series probes boast a fiber length of 2 meters, with a breakout point 1.0 meter from the end of the probe, offering flexibility in installation and use. The fiber diameter is 300 µm, encased in full interlocked stainless steel jacketing over Teflon tubing, resulting in a total outer diameter of 7.0 mm. This robust construction ensures the probes can withstand the rigors of industrial environments while maintaining optimal performance. The SMA 905 connector provides a secure and reliable connection, facilitating seamless integration with existing systems. With an operating temperature capacity of up to 300 °C for the probe body, these probes are designed to meet the demands of high-temperature applications, making them an essential tool for industrial transmission processes.

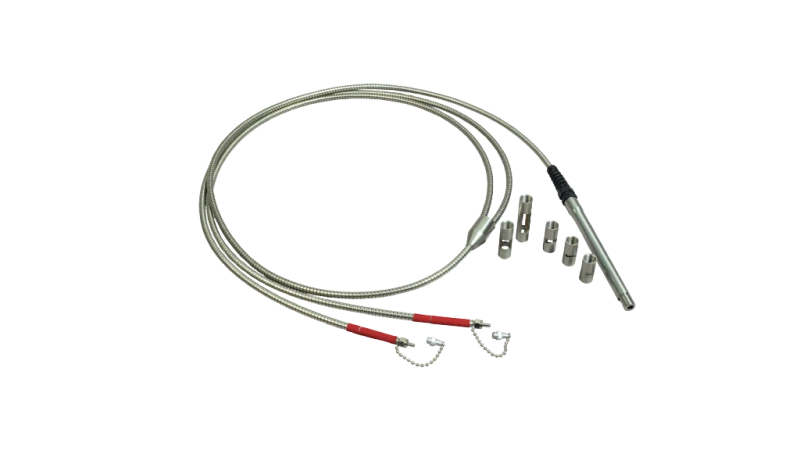

TI300-VIS-NIR High-Pressure High-Temperature Industrial Transmission Dip Probes

Specifications

Transmission: 0.2 – 1.1 um
Temperature Range: 1 – 300 C
Optical Fiber Range (TI300-UV-VIS): 200-1100 nm
Optical Fiber Range (TI300-VIS-NIR): 400-2100 nm
Temperature Limit: 300 °C
Pressure Limit: 250 psi
Optical Fiber Diameter: 300 µm
Outer Diameter: 12.7 mm
Tip Length: 2.6 cm to 4.9 cm
Fiber Length: 2 meters
Material: 316 Stainless Steel
Probe Length (Ferrule): 12.7 cm
Breakout Length: 1.0 m from end of probe
Fiber Jacketing Outer Diameter: 7.0 mm
Connector: SMA 905

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-Pressure, High-Temperature Capability: Designed to operate in environments with pressure limits up to 250 psi and temperatures up to 300 °C.
  • Optical Fiber Options:
    • TI300-UV-VIS: Utilizes 300 µm diameter solarization-resistant optical fiber (200-1100 nm).
    • TI300-VIS-NIR: Utilizes 300 µm diameter VIS-NIR optical fiber (400-2100 nm).
  • Material and Construction: Made from durable 316 stainless steel, ensuring longevity and resistance to harsh industrial environments.
  • Probe Dimensions:
    • Outer Diameter: 12.7 mm
    • Probe Length: Ferrule - 12.7 cm without tip; Tips range from 2.6 cm to 4.9 cm depending on the tip used.
  • Optics: Features a quartz back-coated mirror and quartz lens for enhanced performance.
  • Tip Flow Path Options: Available in various sizes: RT-TI-xx (2, 5, 10, 25, 50 mm).
  • Fiber Specifications:
    • Fiber Length: 2 meters
    • Breakout: 1.0 m from end of probe
    • Fiber Diameter: 300 µm
    • Fiber Jacketing: Full interlocked stainless steel jacketing over Teflon tubing; total 7.0 mm outer diameter
  • Connector Type: Equipped with SMA 905 connectors for reliable connections.
  • Compatibility: Easily couples with Ocean Optics spectrometers and light sources as well as third-part devices to measure solution absorbance and transmission in industrial applications.

Applications

Applications include:

  • Inline chemical process monitoring
  • Industrial absorbance spectroscopy
  • Pharmaceutical process monitoring
  • Petrochemical analysis
  • Reaction monitoring
  • Food and beverage process analysis
  • Biotechnology and bioprocess monitoring
  • Environmental and water analysis
  • Semiconductor chemical analysis
  • Laboratory transmission spectroscopy

Frequently Asked Questions

What are the pressure and temperature limits for the TI300-series probes?
The TI300-series Transmission Industrial Dip Probes can be used in environments with pressure limits up to 250 psi and at temperatures up to 300 °C.
What types of optical fibers are used in the TI300-series probes?
The TI300-UV-VIS uses 300 µm diameter solarization-resistant optical fiber (200-1100 nm), while the TI300-VIS-NIR uses 300 µm diameter VIS-NIR optical fiber (400-2100 nm).
What materials are used in the construction of the TI300-series probes?
The probes are made from 316 stainless steel, with quartz optics, a quartz back-coated mirror, and a quartz lens. The fiber jacketing is full interlocked stainless steel over Teflon tubing.
What is the outer diameter of the TI300-VIS-NIR probe?
The outer diameter of the TI300-VIS-NIR probe is 12.7 mm.
What is the fiber length and breakout length for the TI300-series probes?
The fiber length is 2 meters, with a breakout of 1.0 meter from the end of the probe.
What is the connector type used for the TI300-series probes?
The connector type used is SMA 905.
What is the range of the TI300-VIS-NIR probe?
The range of the TI300-VIS-NIR probe is 400-2100 nm.
