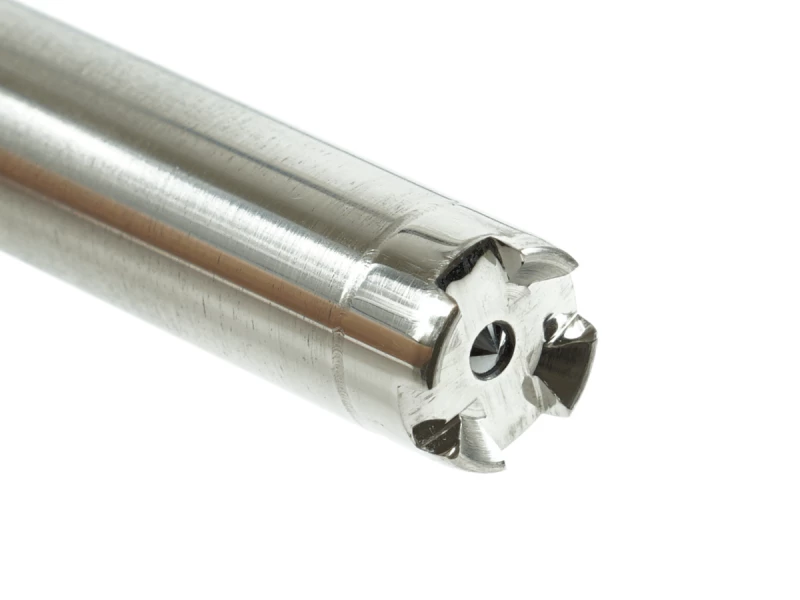

Thumbnail of Fiber Optic ATR-Probe for Harsh Environment Si photo 1

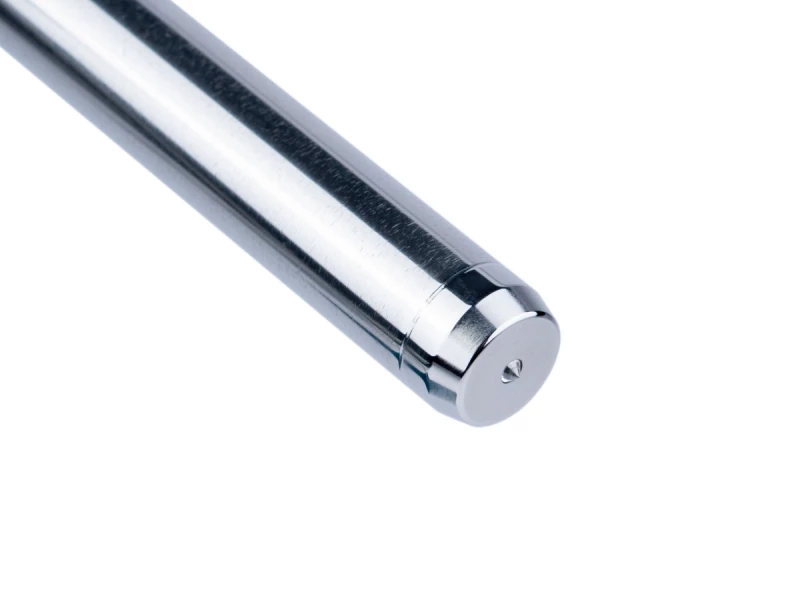

Thumbnail of Fiber Optic ATR-Probe for Harsh Environment Si photo 2

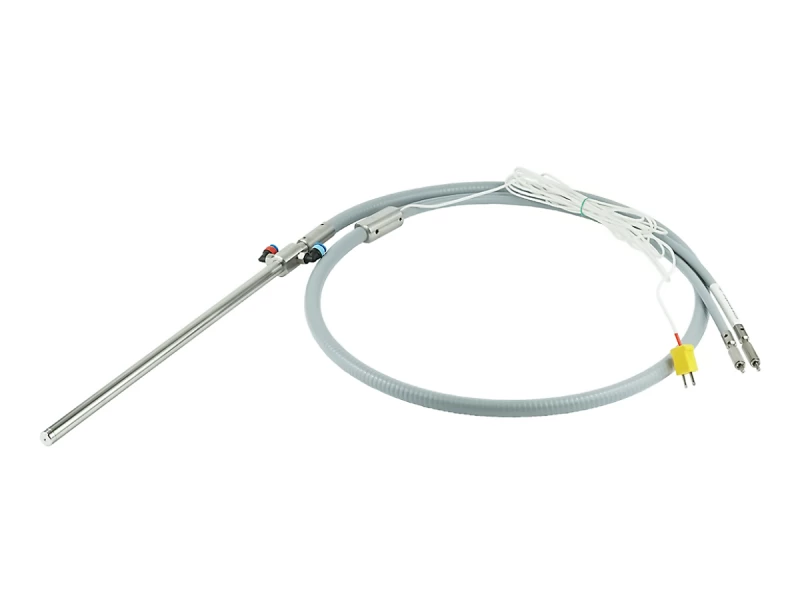

Thumbnail of Fiber Optic ATR-Probe for Harsh Environment Si photo 3

Description

The Fiber Optic ATR-Probes for Harsh Environment from art photonics are specifically designed for process-spectroscopy in the Near & Mid IR range, enabling in-line monitoring of reactions in industrial applications. These probes offer high throughput in selected parts of the Near & Mid InfraRed spectra and are robust enough to withstand harsh environments, with a temperature range from -150°C to +250°C.

They are resistant to high pressures up to 200 Bar, making them suitable for demanding industrial processes. Compatible with FTIR and other IR-spectrometers and spectral sensors, these probes can be seamlessly integrated into automated process control systems with process-interfaces.

Fiber Optic ATR-Probe for Harsh Environment Si

Visit the Art photonics GmbH Store

Specifications

Transmission: 3.2 – 17 um
Temperature Range: -100 – 250 C
Fiber Type: PIR-900/1000
Pressure (max): 100 Bar
Total Length: 1,5 m
Shaft Length: 300 mm
Shaft Diameter: 12 mm
Shaft Material: Hastelloy C22
Length Of Legs: 500 mm
Protective Tube Material: Liquid Tight SS-Conduit, KOPEX-Tube
Minimal Bending Radius: 130 mm
Input / Output Connectors: Long SMA
Cooling Air Flow Parameters: Excess pressure 0.5Bar, Flow 2300l/h

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High throughput in selected parts of Near & Mid InfraRed-spectra
  • ATR-tip shaped for immersion in liquid flow without dead zone
  • Robust for industrial applications in harsh environments up to 250°C
  • Resistant to high pressure
  • Compatible with all spectrometers and automated process-interfaces

Applications

  • In-line reaction monitoring in industrial processes
  • Quality control and process optimization
  • Chemical reaction analysis
  • Petrochemical process analysis
  • Pharmaceutical process monitoring

Frequently Asked Questions

What is the FlexiSpec® probe used for?
The FlexiSpec® probe is used for process-spectroscopy in Near & Mid IR range to monitor reactions in-line in a broad temperature range from -100° to +250°C.
What kind of environment can the HT-ATR immersion IR-fiber probes withstand?
The HT-ATR immersion IR-fiber probes can withstand harsh application conditions.
What is the maximum pressure that the probes can resist?
The probes can resist high pressures up to 200Bar.
What kind of applications can the probes be used for?
The probes can be used for remote reaction monitoring in-line in temperature range -100/+250°C, PAT applications in lab, pilot plant or industry with process-interfaces for automated process control, polymerization process control, and in-situ IR-spectroscopy for PAT in Chemical, Petrochemical, Atomic, Bio-pharmaceutical & Food Industry.
What kind of equipment can the probes be used with?
The probes can be used with FTIR or any other IR-spectrometers and spectral sensors in automated process control with process-interfaces.
