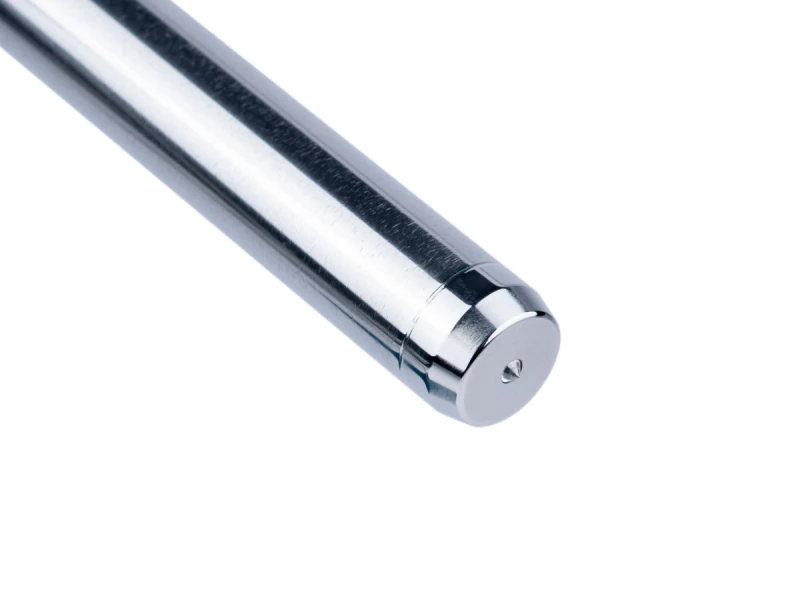

Thumbnail of Zirconium-ATR Fiber Optic Probe, Standard Design photo 1

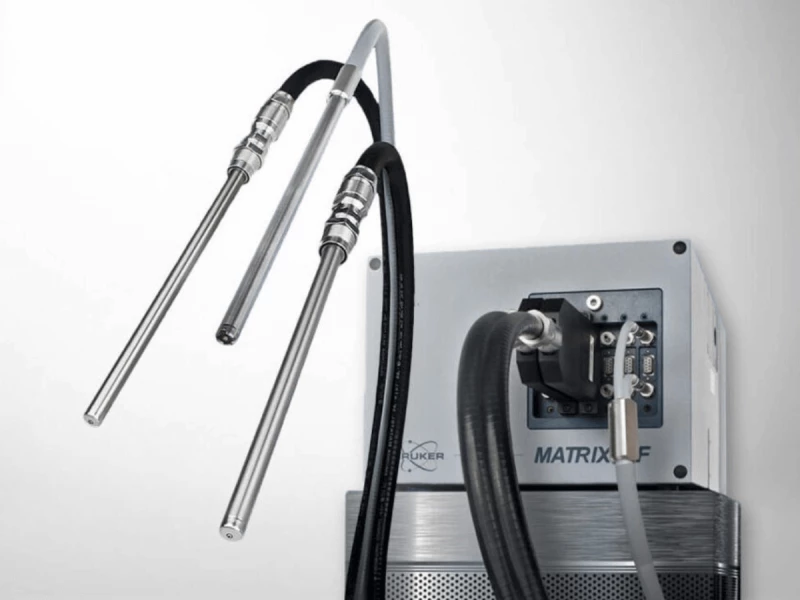

Thumbnail of Zirconium-ATR Fiber Optic Probe, Standard Design photo 2

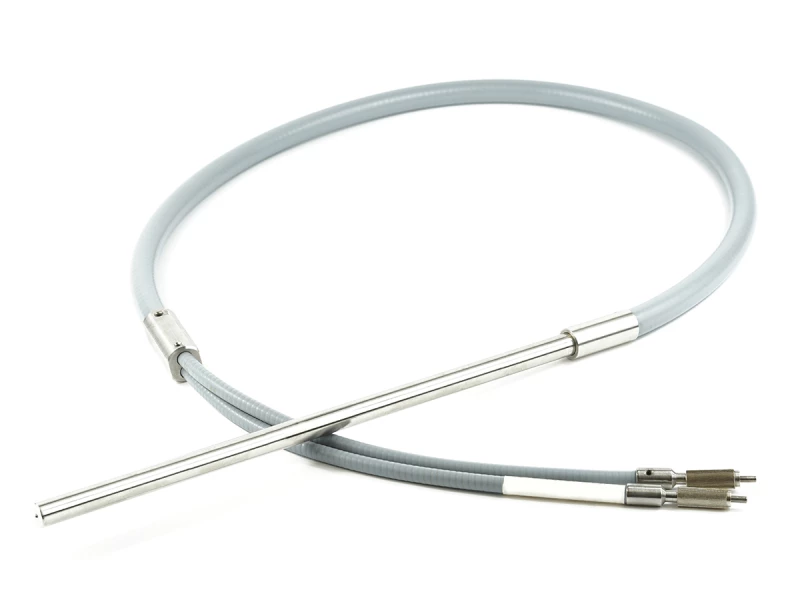

Thumbnail of Zirconium-ATR Fiber Optic Probe, Standard Design photo 3
Thumbnail of Zirconium-ATR Fiber Optic Probe, Standard Design photo 4

Description

FlexiSpec® product line from art photonics presents the latest generation of Attenuated Total Reflection Probes. Fiber optic ATR-Probes are produced for any spectral range in UV -Vis -NIR and Mid-IR.  They are compartible with any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL. ATR immersion Fiber Optic Probes with patented design are suitable for reaction monitoring in lab, pilot plant and industry for full automated process control.

Different type of ATR Crystals are available: Diamond, Silicon, Zinc Selenide, Germanium,Cubic Zirconia and Sapphire.

Zirconium-ATR Fiber Optic Probe, Standard Design

Visit the Art photonics GmbH Store

Specifications

Transmission: 1.1 – 6.5 um
Temperature Range: -150 – 90 C
ATR Tip Material: Cubic Zirconia (opt. see datasheet)
Spectral Range: 9000-1550 cm-1 (opt.: 400-2200 nm)
Shaft Material: Hastelloy C22
Shaft Length: 300 mm (opt.: 100-700 mm)
Shaft Diameter: 6.3 / 12 mm
Total Length: 1.5 m (opt. 1 to 5 m)
Length Of Legs: 500 mm (opt. 200 – 500 mm)
Protective Tube Material: Liquid Tight SS-Conduit, KOPEX-Tube
Minimal Bending Radius: 130 mm
Input / Output Connectors: SMA-905 (opt. any other type)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High throughput in Near-IR and Mid-IR spectrum
  • No dead zone for accurate measurements
  • Flexible and robust for industrial applications
  • Compatible with all spectrometers and automated process interfaces
  • Patented design for ATR immersion fiber optic probes
  • Suitable for reaction monitoring in lab, pilot plant, and industry
  • Compatible with FT-NIR, FT-IR, and other IR-spectrometers, photometers, and IR-LED or QCL

Applications

  • Reaction monitoring in laboratory, pilot plant, and industry
  • Full automated process control
  • Spectroscopy in UV-Vis-NIR and Mid-IR ranges
  • In-sity Spectroscopy for Chemical, Petrochemical, Biopharmaceutical, Food, Atomic Industry

Frequently Asked Questions

What is the FlexiSpec Fiber Optic Probe Cubic Zirconium ATR?
The FlexiSpec Fiber Optic Probe Cubic Zirconium ATR is a product line of Attenuated Total Reflection Near & Mid IR-fiber ATR-Probes produced for any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL spectral sensors.
What are the applications of the FlexiSpec Fiber Optic Probe Cubic Zirconium ATR?
The applications of the FlexiSpec Fiber Optic Probe Cubic Zirconium ATR include reaction monitoring in real time, process analytical technologies (PAT), remote polymerization control, crystallization process screening, and in-situ IR-spectroscopy for PAT in chemical, petrochemical, atomic, biopharmaceutical & food industry.
What is the patented design of the ATR immersion fiber optic probes?
The ATR immersion fiber optic probes have a patented design that is suitable for reaction monitoring in lab, pilot plant and for full automated process control.
What type of spectrometers is the FlexiSpec Fiber Optic Probe Cubic Zirconium ATR compatible with?
The FlexiSpec Fiber Optic Probe Cubic Zirconium ATR is compatible with any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL spectral sensors.
Is there a Datasheet for the FlexiSpec Fiber Optic Probe Cubic Zirconium ATR?
Yes, the datasheet for the FlexiSpec Fiber Optic Probe Cubic Zirconium ATR can be downloaded from the provided above link.

Got more questions? Use the inquiry form to ask the supplier directly.
