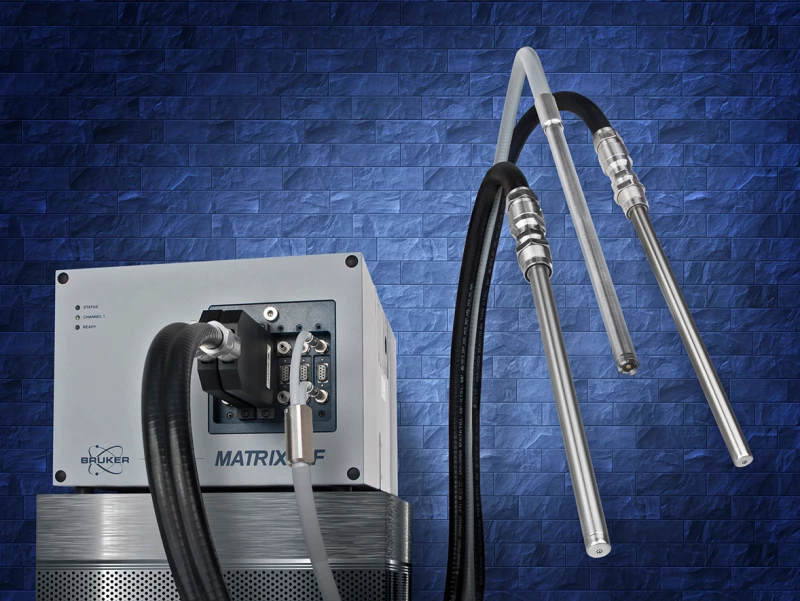

Thumbnail of Ge-ATR Fiber Optic Probe, Standard Design photo 1

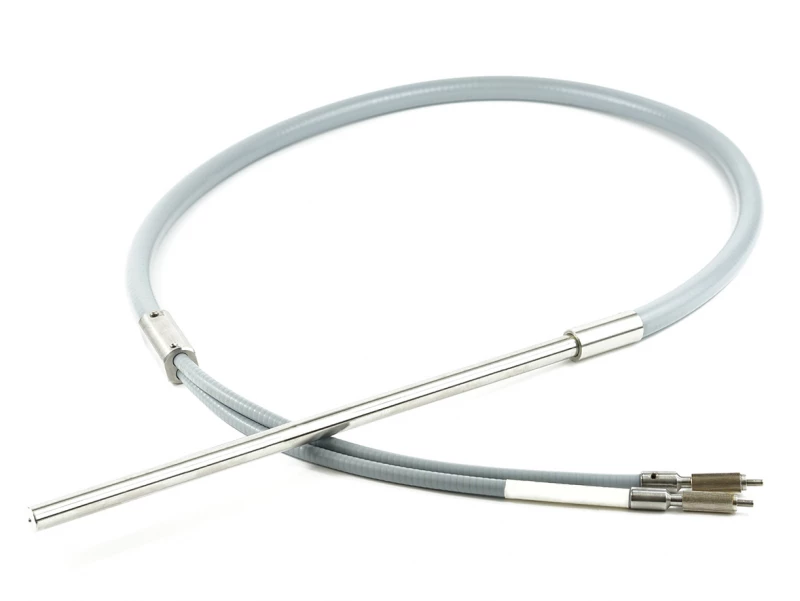

Thumbnail of Ge-ATR Fiber Optic Probe, Standard Design photo 2
Thumbnail of Ge-ATR Fiber Optic Probe, Standard Design photo 3

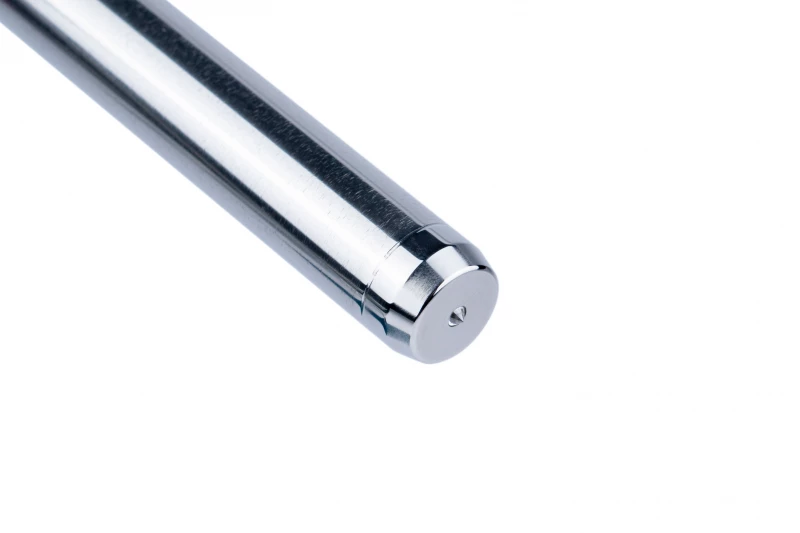

Thumbnail of Ge-ATR Fiber Optic Probe, Standard Design photo 4

Description

FlexiSpec® product line from art photonics presents the latest generation of Attenuated Total Reflection Probes. Fiber optic ATR-Probes are produced for any spectral range in UV -Vis -NIR and Mid-IR.  They are compartible with any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL. ATR immersion Fiber Optic Probes with patented design are suitable for reaction monitoring in lab, pilot plant and industry for full automated process control.

Different type of ATR Crystals are available: Diamond, Silicon, Zinc Selenide, Germanium,Cubic Zirconia and Sapphire.

Ge-ATR Fiber Optic Probe, Standard Design

Visit the Art photonics GmbH Store

Specifications

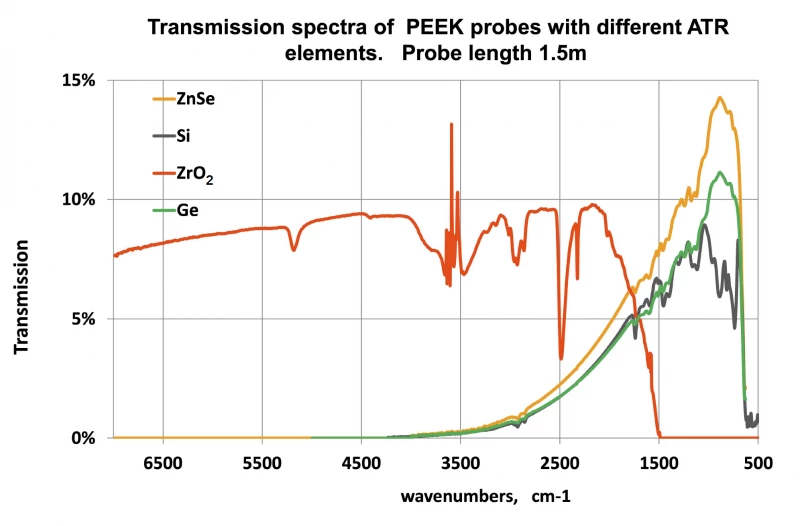

Transmission: 3.2 – 17 um
Temperature Range: -150 – 90 C
ATR Tip Material: Germanium (opt. see datasheet)
Spectral Range: 3100 - 600 cm-1
Shaft Material: Hastelloy C22
Shaft Length: 300 mm (opt.: 100-700 mm)
Shaft Diameter: 6.3 / 12 mm
Total Length: 1.5 m (opt. 1 to 5 m)
Length Of Legs: 500 mm (opt. 200 – 500 mm)
Protective Tube Material: Liquid Tight SS-Conduit, KOPEX-Tube
Minimal Bending Radius: 130 mm
Input / Output Connectors: SMA-905 (opt. any other type)
Pressure: 10 Bar

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High throughput in any part of the Near- and Mid-IR spectrum
  • No dead zone for accurate measurements
  • Flexible and robust design for industrial applications in harsh environments
  • Compatible with all spectrometers and automated process interfaces

Applications

  • Reaction monitoring in lab, pilot plant, and industrial environments
  • Process Analytical Technologies (PAT)
  • Remote Polymerization Control
  • In-sity IR-Spectroscopy for Chemical, Petrochemical, Biopharmaceutical, Food, Atomic Industry

Frequently Asked Questions

What is the FlexiSpec Fiber Optic Probe Ge ATR used for?
The FlexiSpec Fiber Optic Probe Ge ATR is used for reaction monitoring in real time, process analytical technologies (PAT), remote polymerization control, crystallization process screening, and in-situ IR-spectroscopy for PAT in chemical, petrochemical, atomic, biopharmaceutical, and food industry.
What is the FlexiSpec product line?
The FlexiSpec product line is the latest generation of Attenuated Total Reflection Near & Mid IR-fiber ATR-Probes produced for any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL spectral sensors.
What is the patented design of the ATR immersion fiber optic probes?
The ATR immersion fiber optic probes have a patented design that makes them suitable for reaction monitoring in lab, pilot plant, and for full automated process control.
What are the applications of the FlexiSpec Fiber Optic Probe Ge ATR?
The applications of the FlexiSpec Fiber Optic Probe Ge ATR include reaction monitoring in real time, process analytical technologies (PAT), remote polymerization control, crystallization process screening, and in-situ IR-spectroscopy for PAT in chemical, petrochemical, atomic, biopharmaceutical, and food industry.
What type of spectrometers is the FlexiSpec Fiber Optic Probe Ge ATR suitable for?
The FlexiSpec Fiber Optic Probe Ge ATR is suitable for any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL spectral sensors.
