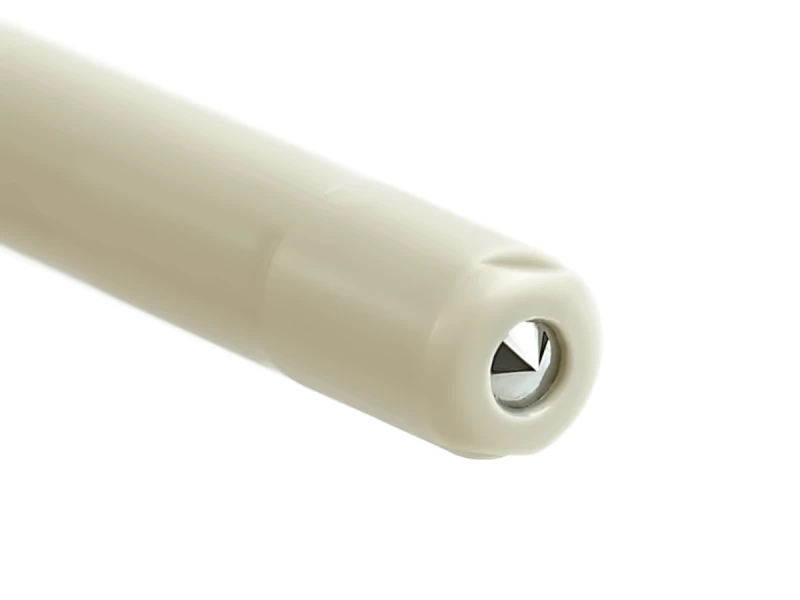

Thumbnail of Fiber Optic ATR-Probes for Lab Applications photo 1

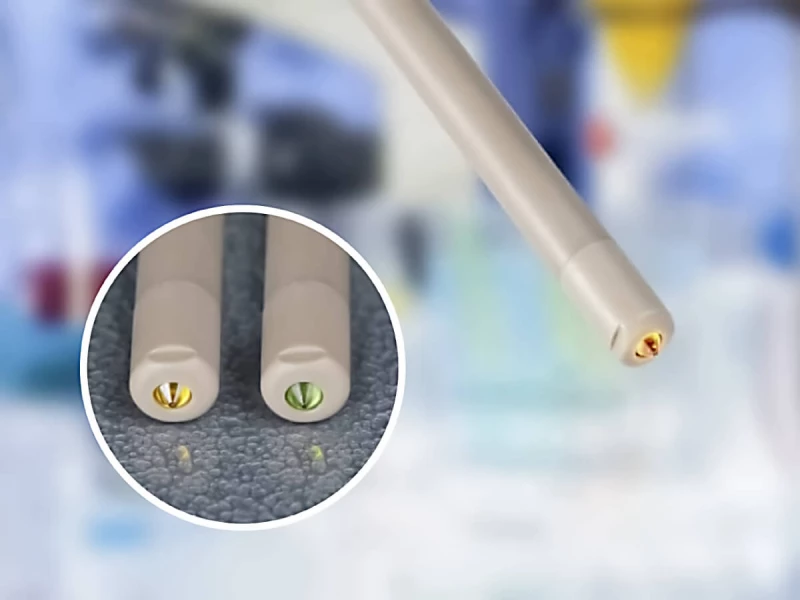

Thumbnail of Fiber Optic ATR-Probes for Lab Applications photo 2

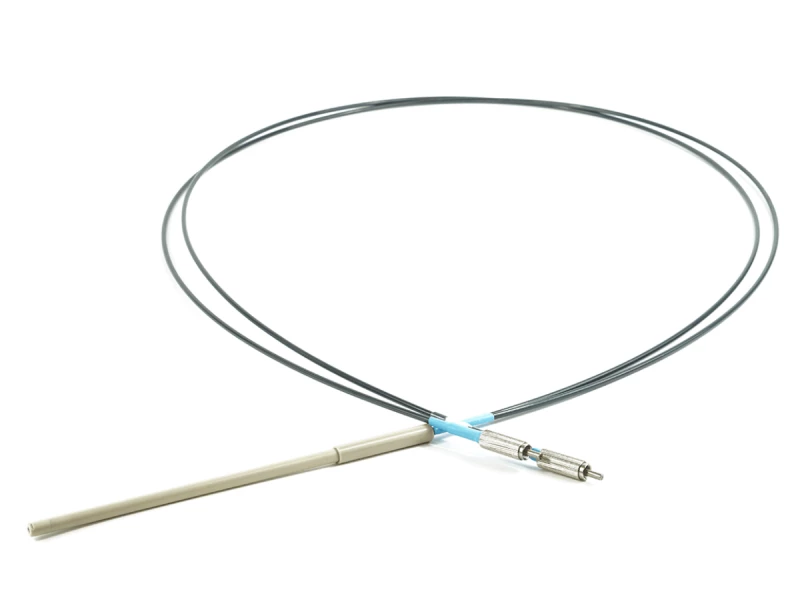

Thumbnail of Fiber Optic ATR-Probes for Lab Applications photo 3

Description

he Fiber Optic ATR Probe from art photonics is specifically designed for lab applications, offering a cost-effective solution for in-line reaction monitoring in small lab reactors and open vessels. These probes, featuring a PEEK shaft, are compatible with various FT-IR and other IR-spectrometers and sensors. With optimal ATR crystal selection and evanescent absorption spectra, they provide accurate and real-time analysis without dead zone problems.

Fiber Optic ATR-Probes for Lab Applications

Visit the Art photonics GmbH Store

Specifications

Transmission: 1.1 – 3100 um
Temperature Range: -100 – 90 C
Fiber Type: CIR-500/550
Pressure (max): 7 bar
Total Length: 1,5 m (opt: 1 to 5m)
Shaft Length: 150mm (opt.:100 to 500mm)
Shaft Diameter: 6.3 mm
Shaft Material: PEEK (polyetheretherketone)
Length Of Legs: 500mm (opt.: 200 to 500mm)
Protective Tube Material: PEEK
Minimum Bending Radius: 130 mm
Input / Output Connectors: Long SMA (opt.: any other type)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Evanescent absorption spectra without dead zone problems
  • Optimal ATR crystal selection to match customer applications
  • Cost-effective solution for in-line reaction monitoring
  • Compatible with FT-IR and other IR-spectrometers and sensors

Applications

  • Real-time reaction monitoring
  • Remote polymerization control
  • Crystallization process screening
  • In-situ IR spectroscopy for soft surfaces, pastes, and liquids

Frequently Asked Questions

What are Fiber Optic ATR-Probes used for?
Fiber Optic ATR-Probes are used for reaction monitoring in real time, remote polymerization control, crystallization process screening, and in-situ IR-spectroscopy for soft surfaces, pastes, and liquids.
What is the length of the Fiber Optic ATR-Probes?
The total length of the Fiber Optic ATR-Probes is 1.5m, but it can be customized from 1m to 5m.
What is the material of the shaft of the Fiber Optic ATR-Probes?
The material of the shaft of the Fiber Optic ATR-Probes is PEEK (polyetheretherketone).
What is the temperature range of the Fiber Optic ATR-Probes?
The temperature range of the Fiber Optic ATR-Probes is from -100°C to +140°C.
What is the pressure range of the Fiber Optic ATR-Probes?
The pressure range of the Fiber Optic ATR-Probes is a maximum of 7 Bar.

Got more questions? Use the inquiry form to ask the supplier directly.
