Description

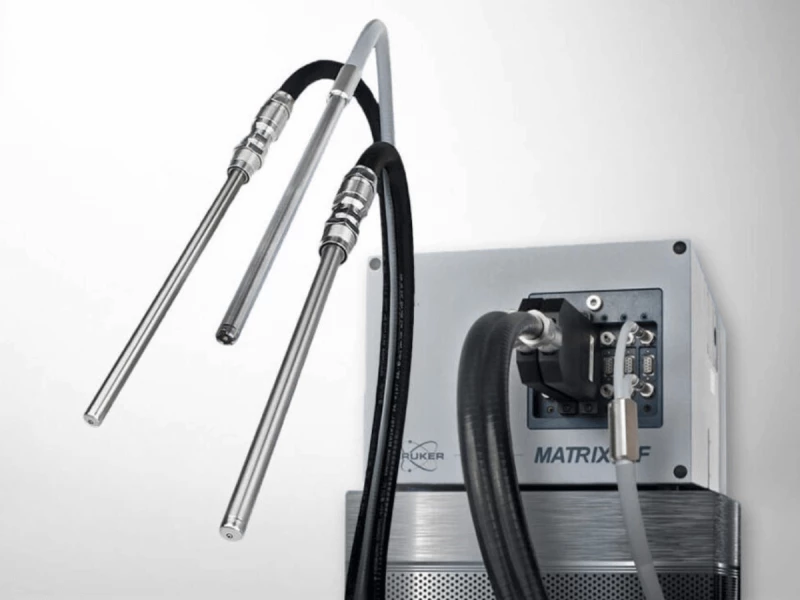

FlexiSpec® product line from art photonics presents the latest generation of Attenuated Total Reflection Probes. Fiber optic ATR-Probes are produced for any spectral range in UV -Vis -NIR and Mid-IR. They are compartible with any type of FT-NIR, FT-IR and other IR-spectrometers, photometers and IR-LED or QCL. ATR immersion Fiber Optic Probes with patented design are suitable for reaction monitoring in lab, pilot plant and industry for full automated process control.
Different type of ATR Crystals are available: Diamond, Silicon, Zinc Selenide, Germanium,Cubic Zirconia and Sapphire.

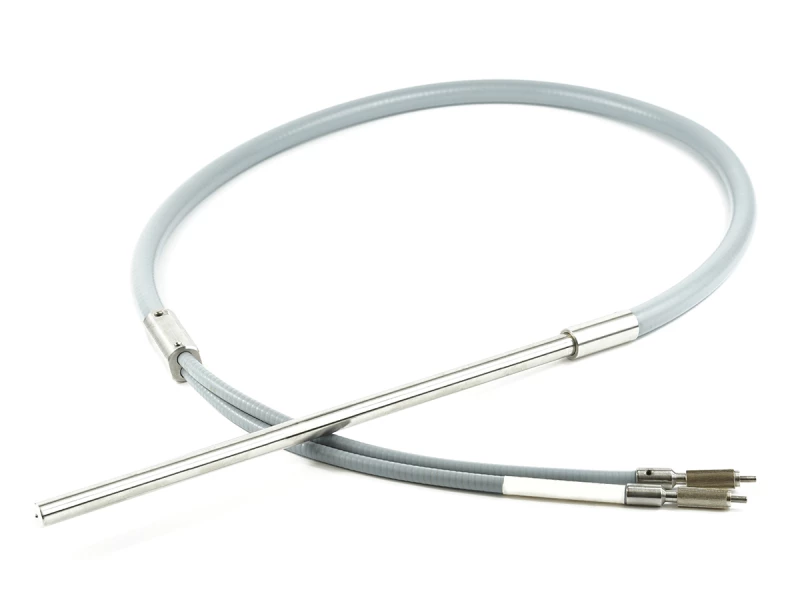

Si-ATR Fiber Optic Probe, Standard Design
Specifications
Transmission: | 3.2 – 17 um |
---|---|
Temperature Range: | -150 – 140 C |
ATR Tip Material: | Silicon (opt. see datasheet) |
Spectral Range: | 3100 - 600 cm-1 |
Shaft Material: | Hastelloy C22 |
Shaft Length: | 300 mm (opt.: 100-700 mm) |
Shaft Diameter: | 6.3 / 12 mm |
Total Length: | 1.5 m (opt. 1 to 5 m) |
Length Of Legs: | 500 mm (opt. 200 – 500 mm) |
Protective Tube Material: | Liquid Tight SS-Conduit, KOPEX-Tube |
Minimal Bending Radius: | 130 mm |
Input / Output Connectors: | SMA-905 (opt. any other type) |
Pressure: | 100 Bar |
Features
- High throughput in Near-IR and Mid-IR spectrum
- No dead zone for accurate measurements
- Flexible and robust for industrial applications
- Compatible with all spectrometers and automated process interfaces
- Patented design for ATR immersion fiber optic probes
- Suitable for reaction monitoring in lab, pilot plant, and industry
- Compatible with FT-IR, and other IR-spectrometers, photometers, and IR-LED or QCL
Applications
- Reaction monitoring in lab, pilot plant, and industrial environments
- Process Analytical Technologies (PAT)
- Remote Polymerization Control
- In-sity IR-Spectroscopy for Chemical, Petrochemical, Biopharmaceutical, Food, Atomic Industry
Frequently Asked Questions
What is the FlexiSpec Fiber Optic Probe Silicon ATR used for?
The FlexiSpec Fiber Optic Probe Silicon ATR is used for reaction monitoring in lab, pilot plant, and for full automated process control. It is also suitable for process analytical technologies, remote polymerization control, crystallization process screening, and in-situ IR-spectroscopy for PAT in chemical, petrochemical, atomic, biopharmaceutical, and food industry.
What is the wavelength range of the FlexiSpec Fiber Optic Probe Silicon ATR?
The FlexiSpec Fiber Optic Probe Silicon ATR has a high throughput in any part of Near & Mid InfraRed-spectrum.
Is the FlexiSpec Fiber Optic Probe Silicon ATR suitable for use in harsh environments?
Yes, the FlexiSpec Fiber Optic Probe Silicon ATR is flexible and robust for industrial applications in harsh environments.
Is the FlexiSpec Fiber Optic Probe Silicon ATR compatible with all spectrometers and automated process-interfaces?
Yes, the FlexiSpec Fiber Optic Probe Silicon ATR is compatible with all spectrometers and automated process-interfaces.
What is the design of the ATR immersion fiber optic probes?

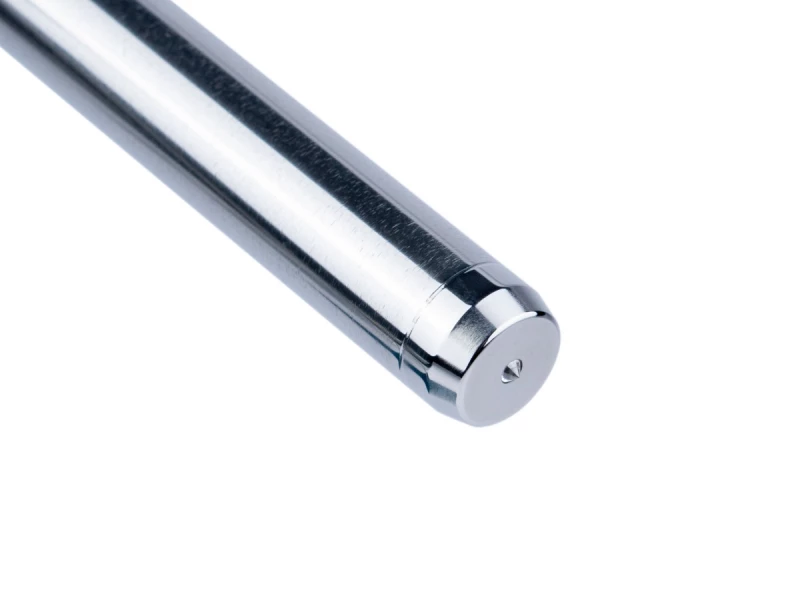

The ATR immersion fiber optic probes have a patented design and are suitable for reaction monitoring in lab, pilot plant, and for full automated process control. The ATR-tip is shaped for immersion in liquid flow without dead zone.
