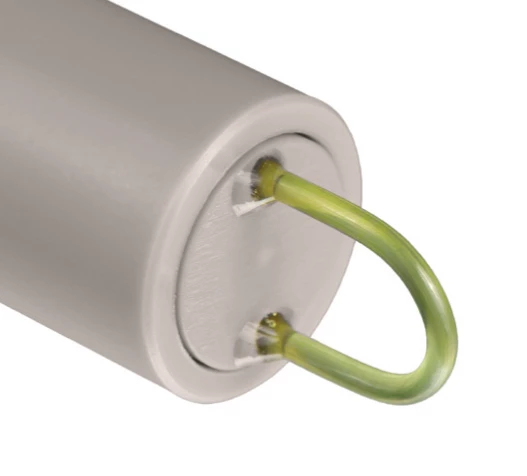

Thumbnail of FlexiSpec ATR-Loop InfraRed Fiber Optic Probe CIR photo 1

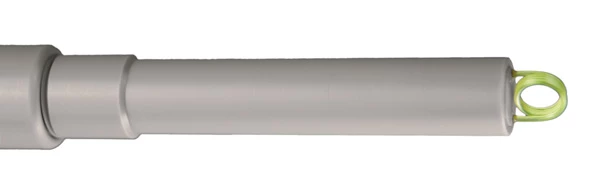

Thumbnail of FlexiSpec ATR-Loop InfraRed Fiber Optic Probe CIR photo 2

Description

The Fiber Optic ATR Loop Probe from art photonics is a versatile and cost-effective solution for on-line absorbance spectroscopy of liquids, pastes, and soft solid surfaces in the Mid InfraRed range. Designed for compatibility with FTIR, QCL, and IR-Filter spectrometers, this probe offers high throughput and is a cost-effective alternative to more expensive ATR-IR fiber probes. It features replaceable ATR Loop PIR-Fiber Tips, providing flexibility and ease of maintenance.

FlexiSpec ATR-Loop InfraRed Fiber Optic Probe CIR

Visit the Art photonics GmbH Store

Specifications

Transmission: 6.5 – 17 um
Temperature Range: Not Specified
Total Length: 1
Shaft Length: 120
Shaft Diameter: 10
Throughput: High throughput at Mid InfraRed range
Spectrometer Compatibility: Compatible with all FTIR, QCL, and IR-Filter spectrometers
ATR Loop PIR-Fiber Tips: Replaceable
Cost-Effectiveness: Cost-effective alternative to more expensive ATR-IR fiber probes

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High throughput at Mid InfraRed range
  • On-line absorbance spectroscopy of liquids, pastes & soft solid surfaces
  • Compatible with all FTIR, QCL, and IR-Filter spectrometers
  • Cost-effective alternative to more expensive ATR-IR fiber probes
  • Replaceable ATR Loop PIR-Fiber Tips

Applications

  • Composition analysis of liquids, pastes, and soft surfaces
  • Quality control and process monitoring
  • Chemical analysis and research
  • Pharmaceutical and food industry applications
  • Environmental monitoring

Frequently Asked Questions

What is the FlexiSpec ATR-Loop InfraRed Fiber Optic Probe used for?
The ATR-Loop Infrared PIR-fiber probe is designed for remote analysis of the composition of liquids, pastes, and soft surfaces with no need for sample preparation.
What is the ATR-Loop PIR-fiber probe used with?
The ATR-Loop PIR-fiber probe is designed for use with FTIR and other Mid IR spectrometers.
What are the applications of the ATR-Loop PIR-fiber probe?
The ATR-Loop PIR-fiber probe can be used for remote evanescent absorption (ATR-) spectroscopy in-citu, multiple ATR-spectroscopy by immersion of fiber loop in liquid, and in-vivo molecular spectroscopy for medical diagnostics by simple touch of ATR-Loop to skin or tissue.
Is the ATR-Loop PIR-fiber probe expensive?
No, the loop fiber probe is the simplest one in the FlexiSpec® product family to enable low-cost ATR-spectroscopy.
Is sample preparation required for using the ATR-Loop PIR-fiber probe?
No, the ATR-Loop PIR-fiber probe is designed for remote analysis of the composition of liquids, pastes, and soft surfaces with no need for sample preparation.
