Fiber Optic ATR-Probes for Lab Applications (ZnSe)

Art photonics GmbH
REQUEST QUOTE
Fiber Optic ATR-Probes for Lab Applications (ZnSe)
  • image0
  • image1

OVERVIEW

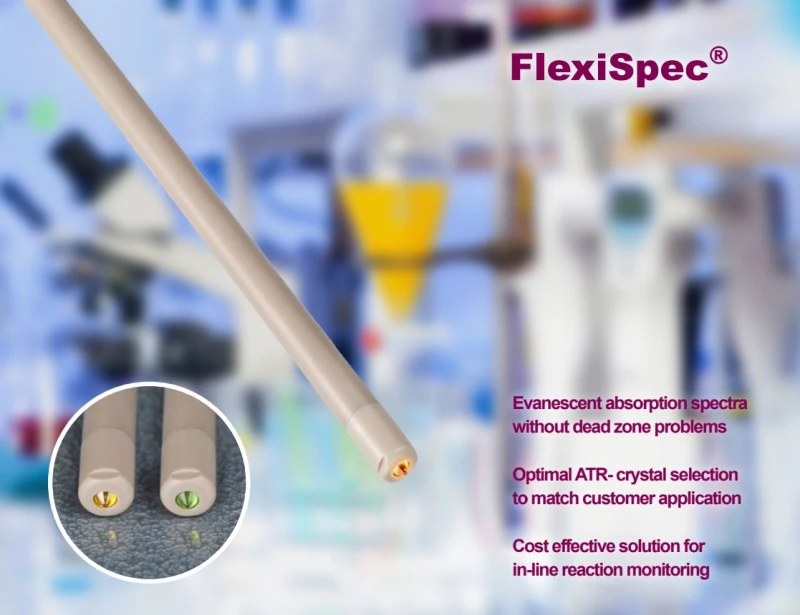

Our new designed IR fiber ATR probes with PEEK shaft are cost effective and perfect for use in small lab reactors and open vessels. All ATR probes from FlexiSpec® product line are compatible to any type of FT-IR and other IR-spectrometers, photometers and sensors.

SPECIFICATION

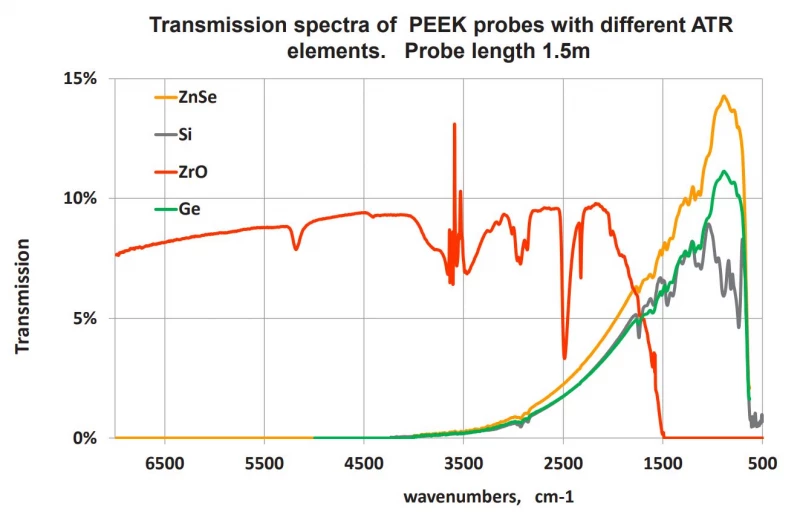

  • Transmission: 3.2 - 17 um
  • Temperature Range: -100 - 140 C
  • Fiber Type: PIR-900/1000
  • Pressure (max): 7 Bar
  • Total Length: 1,5 m (opt: 1 to 5m)
  • Shaft Length: 150mm (opt.:100 to 500mm)
  • Shaft Diameter : 6.3 mm
  • Shaft Material: PEEK (polyetheretherketone)
  • Length Of Legs: 500mm (opt.: 200 to 500mm)
  • Protective Tube Material: PEEK
  • Minimum Bending Radius: 130 mm
  • Input / Output Connectors: Long SMA (opt.: any other type)
Download Data Sheet

Applications

* Reaction Monitoring in real time
* Remote Polymerization Control
* Crystallization Process Screening
* In-situ IR-Spectroscopy for soft surfaces, pastes and liquids
